Video Intercom VL-SV70CX1
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
VL-SV70CX1
Video Intercom
Entry Series
- One-touch Voice Chnger
- Picture Recording
- Electric Lock Release Support
- Night Vision
- Supports Language: Arabic,English,Vietnamese
![](/content/dam/pim/mi/en/VL/VL-SV7/VL-SV70CX1/ast-1190514.jpg.pub.crop.pc.thumb.640.1200.jpg)
![](/etc/designs/panasonic/productpage-2-clientlibs/scene7/images/icn-spinicon.png)
![](/etc/designs/panasonic/productpage-2-clientlibs/scene7/images/icn-pinchzoom.png)
Features
Simple Configuration
![Simple Configuration](/content/dam/pim/mi/en/VL/VL-SV7/VL-SV70CX1/ast-1190518.png.pub.thumb.644.644.png)
7-inch Colour LCD
![7-inch Colour LCD](/content/dam/pim/mi/en/VL/VL-SV7/VL-SV70CX1/ast-1190517.png.pub.thumb.644.644.png)
One-touch Voice Changer
The voice change function can be activated with one touch of a button from the main monitor during an incoming call.
![One-touch Voice Changer](/content/dam/pim/mi/en/VL/VL-SV7/VL-SV70CX1/ast-1190520.jpg.pub.thumb.644.644.jpg)
Electric Lock Release
![Electric Lock Release](/content/dam/pim/mi/en/VL/VL-SV7/VL-SV70CX1/ast-1190522.jpg.pub.thumb.644.644.jpg)
Auto Picture recording
(up to 50 session [up to 4 still images per session] )
![Auto Picture recording](/content/dam/pim/mi/en/VL/VL-SV7/VL-SV70CX1/ast-1190524.jpg.pub.thumb.644.644.jpg)
Night Vision
![Night Vision](/content/dam/pim/mi/en/VL/VL-SV7/VL-SV70CX1/ast-1190525.jpg.pub.thumb.644.644.jpg)
Supports Arabic
(Supports Arabic, English and Vietnamese.)
![Supports Arabic](/content/dam/pim/mi/en/VL/VL-SV7/VL-SV70CX1/ast-1190527.jpg.pub.thumb.644.644.jpg)
Bringing safety and convenience to more people.
![An affordable Video Intercom VL-SV70 with rich features. Bringing safety and convenience to more people.](/content/dam/pim/mi/en/VL/VL-SV7/VL-SV70CX1/ast-1190528.png.pub.thumb.644.644.png)
Specs

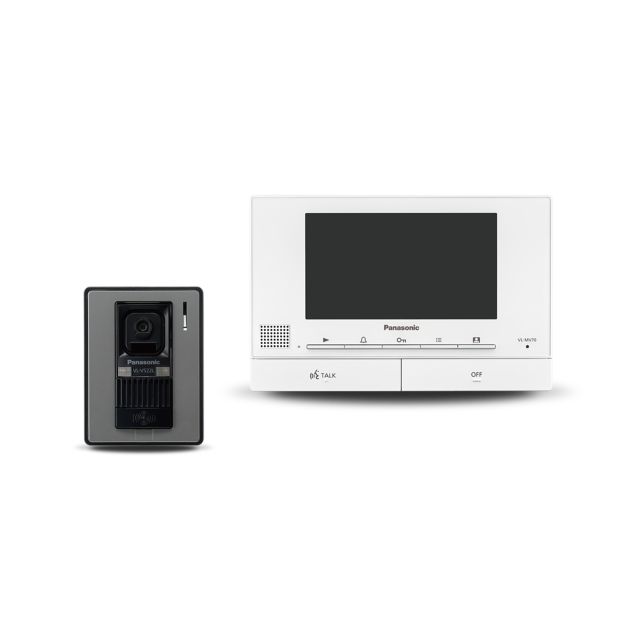

![Photo of Video Intercom VL-SV70CX1](/content/dam/pim/mi/en/VL/VL-SV7/VL-SV70CX1/ast-1190513.png.pub.thumb.644.644.png)
Size and Weight
- Height
- 158mm
- Width
- 243mm
- Depth
- 29.5mm
- Weight
- 810g
* Approximate size and weight for Main Monitor.
・7-inch Colour LCD Monitor
・One-touch Voice Chnger
・ Picture Recording
・ Electric Lock Release Support
・ Night Vision
・ Supports Language:
Arabic,English,Vietnamese
(Door Station)
H: 131 mm, W: 99 mm, D: 36.5 mm, Weight: 200 g
* Approximate size and weight for Door Station.
Model composition
-
Main Monitor(VL-MV70) x1, Door Station(VL-V522L) x1
Connectable Devices
-
E-lock Release Support
-
Up to 1 (user supplied)
-
Convenience
-
Picture Recording
-
Internal memory: Up to 50 visitors/sessions (up to 4 still images per visitor/session)
-
-
Night Vision
-
Yes (LED lights)
-
-
Touch Panel / Pan & Tilt
-
- / -
-
-
Voice Changer
-
Yes (One-touch)
-
Monitor
-
Power source
-
220-240 V AC, 50/60 Hz
-
-
Power consumption
-
Standby: 2.0 W, Operating: 10.5 W
-
-
Dimensions (H x W x D)
-
Approx. 158 x 243 x 29.5 (mm)
-
-
Mass (weight)
-
Approx. 810 g
-
-
Operating environment
-
Ambient temperature: Approx. 0 ℃ to +40 ℃, Relative humidity (non-condensing): up to 90 %
-
-
Display size
-
7-inch wide colour / WVGA (800 x 480 pixels)
-
-
Display language
-
English, Arabic, Vietnamese
-
-
Talking method
-
Hands-free
-
-
Installation method
-
Wall mount (mounting bracket supplied)
-
-
External material
-
Flame retardant ABS resin
-
Door Station
-
Power source
-
Power supplied by the main monitor
-
-
Dimensions (H x W x D)
-
Approx. 131 x 99 x 36.5 (mm)
(Excluding protruding sections)
-
-
Mass (weight)
-
Approx. 200 g
-
-
Operating environment
-
Ambient temperature: Approx. -15 ℃ to +55 ℃, Relative humidity (non-condensing): up to 90 %
(tested up to -20 °C)
-
-
Talking method
-
Hands-free
-
-
Viewing angle
-
Horizontally: Approx. 87˚ , Vertically: Approx. 66
-
-
Image sensor/ Camera (pixel)
-
CMOS sensor (Approx. 0.3 M pixels)
-
-
Minimum illuminance required
-
1 lx (within approx. 50 cm from the camera lens)
-
-
Lighting method
-
Warm white coloured LED lights, Infrared LEDs
-
-
IP rating (INGRESS PROTECTION)
-
IPX3
*Water resistance is only assured if the doorphone is installed correctly according to the instructions in the Installation Guide, and appropriate water protection measures are taken.
-
-
Installation method
-
Surface mount (mounting base supplied)
-
-
External material
-
Flame retardant ABS resin
-
