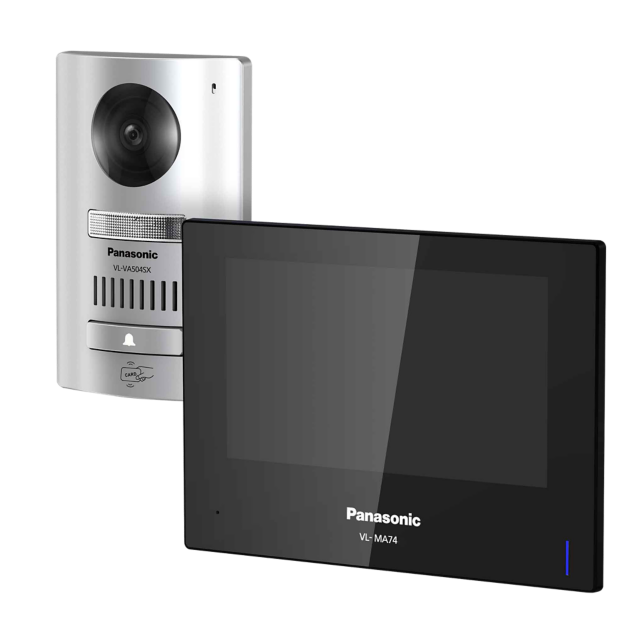

VL-SA74CX
Your Secure, Connected, and Intelligent Doorway
Enhance home security with our video intercom featuring a 7-inch touch display, HD video recording, WiFi control, Arabic support, night vision, and expandable IP connection. IP65 waterproof for reliable outdoor use, and supports up to four additional monitors.
Features
7-inch Full Touch Display with Mirror Finish
The monitor has a large 7-inch wide mirror finish screen that clesrly shows each visitor’s face.
Picture and Video Recording
Images up to 100 from doorphone calls and monitoring sessions. (Up to 50 session [up to 4 still images per session])
Electric Lock Release Support
The door lock can be easily and quickly released using monitors from anywhere in the house.
Mobile Application (Panasonic SmartWifi)
Remote control and monitoring via Panasonic Smart WiFi app with instant notifications
Supports Arabic
You can change the language of the displayed menu to Arabic.
2 Megapixels for Clear Image
The 2 - megapixel image sensor on the door phone takes visitor images at HD image
IP65 Waterproof
Durable and weather-resistant with IP65 rating for reliable outdoor use
Expandability (Room Monitor)
Upto 4 (1 Main +3 Additonal)
Night Vision
The doorphone is equipped with LED lighting that enables visitors at a distance of about 50 cm to appear in colour, even when it is dark.
Specs
Highly Expandable IP Connection
7-inch Full Touch Display with Mirror Finish
Picture and Video Recording
Electric Lock Release Support
Mobile Application (Panasonic Smart Wifi)
Solution
-
System
-
Linux
-
-
Chipset
-
AK3761E-TQFP-128
-
-
CMOS
-
1/2.9"
-
-
Stream resolution - Video
-
1280*720
-
-
Stream resolution - Image
-
1024*600
-
-
Connection
-
2.4G WiFi on monitor to App, Cat5/ Cat6 between outdoor and monitor
-
-
APP
-
Panasonic smart Wifi
-
-
Notification to mobile phone
-
Calls notification, Motion detection notification forward to mobile phone
-
-
Leaving message
-
Support
-
-
Remote unlocking
-
Remote unlocking via mobile app
-
Monitor
-
Screen size
-
7" TFT (BOE), Capacitive Touch Screen
-
-
Screen resolution
-
1024*600 IPS
-
-
Brightness Setting
-
Yes
-
-
Ringback on doorbell volume setting
-
Yes
-
-
Speaker Volume setting
-
Yes
-
-
Mic Volume setting
-
Yes
-
-
Playback volume setting
-
Yes
-
-
Alarm sensor
-
8
-
-
RAM
-
DDR2 128MB
-
-
Flash memory
-
16MB
-
-
Effective Area
-
154.21 (H)×85.92 (W)mm
-
-
Protocol
-
TCP/IP, RTSP, ONVIF
-
Basic funtions
-
POE out support from monitor to outdoor
-
Support
-
-
Door lock wiring option from both side Indoor &
-
Support
-
-
RFID unlocking
-
Yes (125KHz)
-
-
External SD Card Support
-
Yes (Max. 256GB class 10 and above)
-
-
Image Storage
-
Yes (In built memory Max. 100 images)
-
-
Image Storage Capacity
-
Yes (Max 5000)
with SD Card 256GB
-
-
Video Storage
-
Yes (Auto & Manual)
-
-
Video Storage Capacity
-
Yes (Max. 5000)
with SD Card 256GB
-
-
Video Length
-
120 Sec (Max.)
-
-
Ringing Melody
-
7
-
-
Intercom
-
Yes
-
-
Working mode
-
At home / Away / Sleep
-
-
Leaving message
-
Yes
-
-
Detection
-
Motion detection
-
Extension
-
Indoor Monitors
-
4 (1+3)
-
-
Outdoor unit
-
2 (1+1)
-
-
External CCTV Support
-
2(720P IP CAM, 1080P CAM)
-
-
External security sensor
-
8
-
-
Exit button
-
1
-
Outdoor unit
-
Tamper alarm
-
Support
-
-
Camera type
-
2MP HD camera
-
-
Door Lock Release
-
Support 2 electric locks(one lock from outdoor unit and one lock from indoor monitor)
-
-
Camera sensor
-
1080P
-
-
Camera resolution
-
1/2.9" 2MP (GALAXY GC2053 )
-
-
Viewing Angle
-
120°(Horizontal); 60°(Vertical); 155° (Diagonal)
-
-
Night Vision
-
White Lighting
-
-
Manual camera adjustment (joystic for camera angle)
-
Adjustable
-
-
RFID unlocking
-
Support (125kHz)
-
-
Mounting
-
Surface mount
-
-
Audio quality
-
Noise Suppression, Echo Cancellation
-
-
Audio input
-
Built-in omnidirectional microphone
-
-
Audio intercom
-
Full Two-way intercom
-
-
Audio compression standard/rate
-
G.711 U/64 Kbps
-
-
Unlocking port
-
NO COM NC from monitor / NO COM NC from monitor
-
-
Power port
-
14.5V 1.0 Amp DC (BIS) / POE
-
-
Wiring port
-
RJ45 & PoE
-
-
Waterproof
-
IP65
-
-
Damageproof
-
IK08
-
System
-
Exit button
-
Support
-
-
Operation system
-
Linux
-
-
Operation mode
-
Touch screen
-
-
Flash memory
-
16MB
-
-
RAM
-
128MB
-
-
Door Contact Input
-
Support 1
-
-
Languages
-
English & Arabic
-
-
Working distance
-
Max 100M (UTP CAT5e : The impedance of 100 m of cable should be 10 ohms or less)
-
-
Power Adapter
-
DC15V 1.0 Amp
-
-
Working power
-
15V 0.5Amp DC
-
-
Wi-Fi module
-
ZY- MH381TSA
-
Environment
-
Working consumption
-
Static <4W, Working <15W
-
-
Termperature
-
-20 ～+70
-
-
Humidity
-
10%~90%（RH)
-
Package
-
Monitor size(L*W*H)mm
-
200*143*22
-
-
Outdoor unit size(L*W*H)mm
-
150*95*37.7
-
-
Assessory
-
1pc 15V（BIS) adapter; 1pc screws bag;7pcs; RFID cards;1pc 10pin cable;2pcs 3pin cables;
2pcs 2pin cables; 1pc bracket; 1pc Installation Guide, User manual English/Arabic
-
