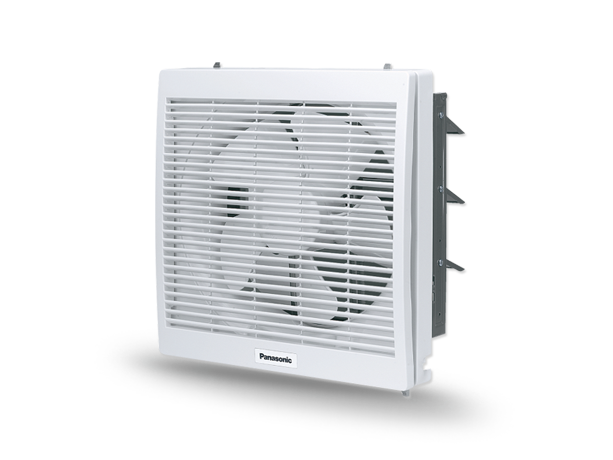

Automatic Shutter Louver Series
FV-20AL9T
-
220/50hz
-
Air Volume
-
546 m³/h
321 CFM
-
-
Consumption [W]
-
20
-
-
RPM [min⁻¹]
-
1,190
-
-
Noise [dB(A)]
-
40
-
-
-
220/60hz
-
Air Volume
-
600 m³/h
353 CFM
-
-
Consumption [W]
-
24
-
-
RPM [min⁻¹]
-
1,340
-
-
Noise [dB(A)]
-
44
-
-
-
230/50hz
-
Air Volume
-
540 m³/h
318 CFM
-
-
Consumption [W]
-
22
-
-
RPM [min⁻¹]
-
1,210
-
-
Noise [dB(A)]
-
42
-
-
-
240/50hz
-
Air Volume
-
550 m³/h
324 CFM
-
-
Consumption [W]
-
23
-
-
RPM [min⁻¹]
-
1,240
-
-
Noise [dB(A)]
-
43
-
-
-
Weight [kg]
-
2.2
-
-
Installation Space [mm]
-
250 x 250
-
FV-25AL9T
-
220/50hz
-
Air Volume
-
835 m³/h
491 CFM
-
-
Consumption [W]
-
27
-
-
RPM [min⁻¹]
-
1,060
-
-
Noise [dB(A)]
-
43
-
-
-
220/60hz
-
Air Volume
-
846 m³/h
498 CFM
-
-
Consumption [W]
-
36
-
-
RPM [min⁻¹]
-
1,110
-
-
Noise [dB(A)]
-
43
-
-
-
230/50hz
-
Air Volume
-
840 m³/h
494 CFM
-
-
Consumption [W]
-
30
-
-
RPM [min⁻¹]
-
1,105
-
-
Noise [dB(A)]
-
43
-
-
-
240/50hz
-
Air Volume
-
852 m³/h
501 CFM
-
-
Consumption [W]
-
32
-
-
RPM [min⁻¹]
-
1,135
-
-
Noise [dB(A)]
-
44
-
-
-
Weight [kg]
-
2.7
-
-
Installation Space [mm]
-
300 x 300
-
FV-30AL7T
-
220/50hz
-
Air Volume
-
935 m³/h
550 CFM
-
-
Consumption [W]
-
31
-
-
RPM [min⁻¹]
-
880
-
-
Noise [dB(A)]
-
43
-
-
-
220/60hz
-
Air Volume
-
915 m³/h
539 CFM
-
-
Consumption [W]
-
38
-
-
RPM [min⁻¹]
-
880
-
-
Noise [dB(A)]
-
43
-
-
-
230/50hz
-
Air Volume
-
930 m³/h
547 CFM
-
-
Consumption [W]
-
35
-
-
RPM [min⁻¹]
-
900
-
-
Noise [dB(A)]
-
43
-
-
-
240/50hz
-
Air Volume
-
1,050 m³/h
618 CFM
-
-
Consumption [W]
-
40
-
-
RPM [min⁻¹]
-
930
-
-
Noise [dB(A)]
-
48
-
-
-
Weight [kg]
-
3.1
-
-
Installation Space [mm]
-
350 x 350
-
Note
-
For info on test conditions, please refer to the technical sheet.
