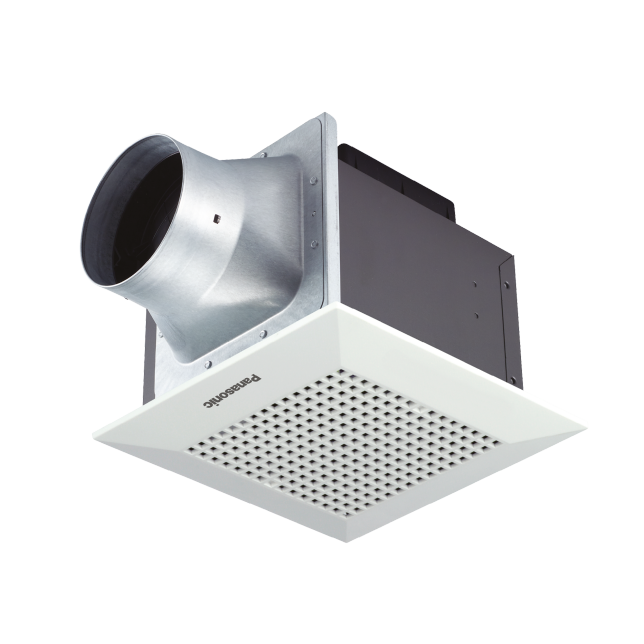

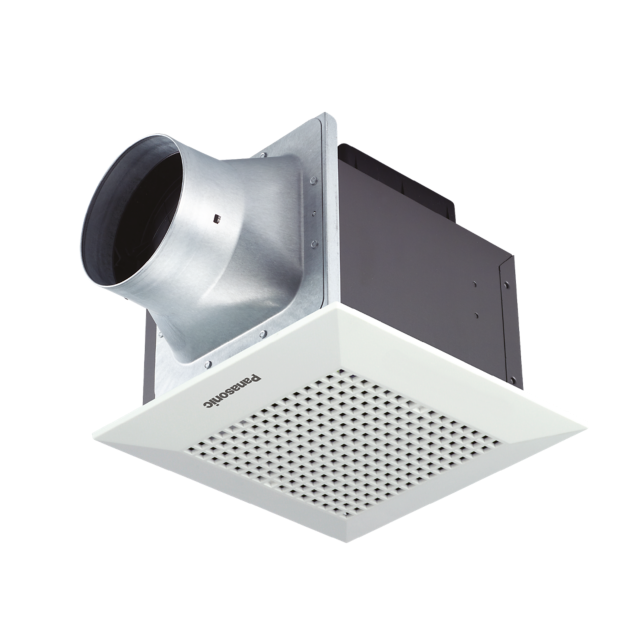

Super Quiet Series

For a Quiet and Comfortable Environment.

Compact, stylish, and quiet, this model is suitable for everything from bathrooms to bedrooms, living rooms, and offices.

Add to WishlistRemove from Wishlist

Super Quiet Series

SHOP NOW

Features

24 Hours Ventilation

Bringing 24-Hour Comfort, 365 Days of Fresh Air Excellence.

Easy Installation

The cassette-type discharge adaptor simplifies product installation and duct connection work, while the spring-clip louver allows for easy installation and removal.

Super Low Noise

The integrated casing and orifice minimize noise transmission from the fan and motor to the exterior. Additionally, the “Resonance-Noise-Absorption” technology further reduces operational noise to an incredibly low level, creating a tranquil and silent environment for your life.

Product Variations

FV-17CU9

• Super low noise design
• Long life ball bearing motor
• HP (half pitch) motor with ball bearing
• Taper blade sirocco fan
• Curve-shaped back-draff shutter
• Super low noise level
• Motor insulation Class B

Specs

Single Speed

Super Low Noise Structure

Sirocco Fan

FV-17CU9

Voltage [V]
- 220
  230
  240
Frequency [Hz]
- 50
  60
  50
  60
  50
Air Volume
- 85 [CMH] 50 [CFM]
  85 [CMH] 50 [CFM]
  85 [CMH] 50 [CFM]
  85 [CMH] 50 [CFM]
  90 [CMH] 53 [CFM]
Consumption [W]
- 7.5
  10
  8.5
  10
  9.5
Noise [dB(A)]
- 23
  24
  24.5
  24
  26
Weight [kg]
- 1.7
Installation Space [mm]
- 177 x 177
Duct Size [mm]
- Ø100

FV-24CD8

Voltage [V]
- 220
  230
  240
Frequency [Hz]
- 50
  60
  50
  50
Air Volume
- 170 [CMH] 100 [CFM]
  170 [CMH] 100 [CFM]
  180 [CMH] 106 [CFM]
  190 [CMH] 112 [CFM]
Consumption [W]
- 14.5
  16.5
  16
  17.5
Noise [dB(A)]
- 19.5
  31.5
  32.5
  32.5
Weight [kg]
- 2.8
Installation Space [mm]
- 240 x 240
Duct Size [mm]
- Ø100

FV-24CU9 / FV-24CH9

Voltage [V]
- 220
  230
  240
Frequency [Hz]
- FV-24CU9:
  50
  60
  50
  60
  50
  FV-24CH9:
  50
  60
  50
  50
Air Volume
- FV-24CU9:
  140 [CMH] 82 [CFM]
  140 [CMH] 82 [CFM]
  150 [CMH] 88 [CFM]
  150 [CMH] 88 [CFM]
  160 [CMH] 94 [CFM]
  FV-24CH9:
  200 [CMH] 118 [CFM]
  190 [CMH] 112 [CFM]
  210 [CMH] 124 [CFM]
  210 [CMH] 124 [CFM]
Consumption [W]
- FV-24CU9:
  10.5
  13.5
  11
  13.5
  12
  FV-24CH9:
  16.5
  20.5
  18
  19.5
Noise [dB(A)]
- FV-24CU9:
  25
  26.5
  26
  26.5
  27
  FV-24CH9:
  32
  33.5
  34
  35
Weight [kg]
- 2.7
Installation Space [mm]
- 240 x 240
Duct Size [mm]
- Ø100

FV-27CH9

Voltage [V]
- 220
  230
  240
Frequency [Hz]
- 50
  60
  50
  50
Air Volume
- Hi
  - 330 [CMH] 194 [CFM]
    330 [CMH] 194 [CFM]
    340 [CMH] 200 [CFM]
    360 [CMH] 212 [CFM]
- Lo
  - 260 [CMH] 153 [CFM]
    270 [CMH] 159 [CFM]
    275 [CMH] 162 [CFM]
    290 [CMH] 171 [CFM]
Consumption [W]
- 28
  23
  33
  26
  31.5
  25.5
  34
  27.5
Noise [dB(A)]
- 34
  30
  34
  31
  35
  31.5
  36.5
  32
Weight [kg]
- 4.4
Installation Space [mm]
- 270 x 270
Duct Size [mm]
- Ø150

FV-32CD9

Voltage [V]
- 220
  230
  240
Frequency [Hz]
- 50
  60
  50
  50
Air Volume
- Hi
  - 430 [CMH] 253 [CFM]
    410 [CMH] 241 [CFM]
    440 [CMH] 259 [CFM]
    470 [CMH] 277 [CFM]
- Lo
  - 300 [CMH] 177 [CFM]
    285 [CMH] 168 [CFM]
    315 [CMH] 185 [CFM]
    330 [CMH] 194 [CFM]
Consumption [W]
- 42
  32
  48
  33
  46
  34
  50
  38
Noise [dB(A)]
- 36
  28
  35.5
  27.5
  37.5
  29
  38.5
  30
Weight [kg]
- 5.2
Installation Space [mm]
- 320 x 320
Duct Size [mm]
- Ø150

FV-32CH9

Voltage [V]
- 220
  230
  240
Frequency [Hz]
- 50
  60
  50
  50
Air Volume
- Hi
  - 530 [CMH] 312 [CFM]
    525 [CMH] 309 [CFM]
    555 [CMH] 327 [CFM]
    580 [CMH] 341 [CFM]
- Lo
  - 400 [CMH] 235 [CFM]
    390 [CMH] 230 [CFM]
    430 [CMH] 253 [CFM]
    450 [CMH] 265 [CFM]
Consumption [W]
- 55
  45
  61
  47
  59
  49
  64
  43
Noise [dB(A)]
- 41
  34
  40.5
  33
  42
  35.5
  43
  37
Weight [kg]
- 5.6
Installation Space [mm]
- 320 x 320
Duct Size [mm]
- Ø150

Open a new page for printing

Learn About The Category

Ceiling Mount Ventilation Fans

Get Support

for Super Quiet Series

Visit the support page for this product

Manual

Operation Manual English & Arabic

Manual

Operation Manual Multi-language
