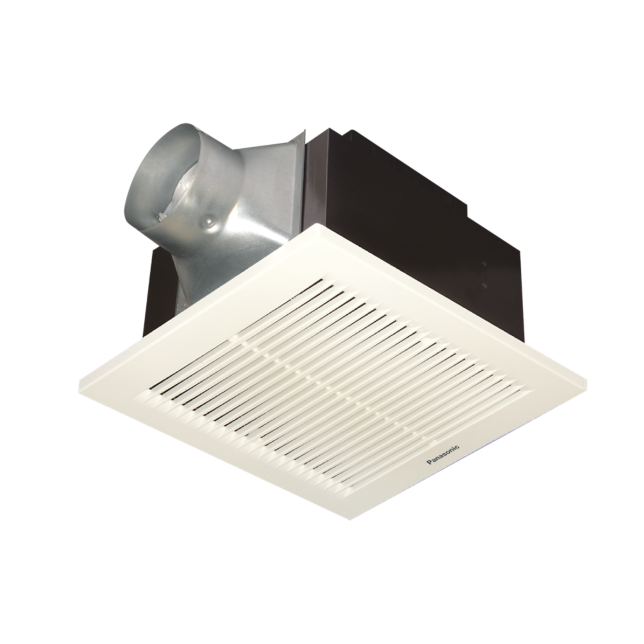

DC Motor Series
Equipped with DC Motor for Energy Efficiency
Equipped with energy-saving and quiet DC motor. Motion sensor enables efficient operations. High-performing unit with both spot and whole-house ventilation functions.
Features
24 Hours Ventilation
Bringing 24-Hour Comfort, 365 Days of Fresh Air Excellence.
Super Low Noise
The integrated casing and orifice minimize the transmission of noise from the fan and motor to exterior. This technology further reduces the operation noise to incredibly low level by “Resonance-Noise-Absorption” operation, which creates a silent environment.
Energy Efficient
The fan adopted with DC (Direct Current) motor to reduce power consumption for energy saving. Temperature rise of DC motor is lower than AC (Alternating Current) motor that the retime of DC motor is comparatively longer.
Highly Secure Fuse
A thermal safety fuse ensures that no accidents occur, even when there is a spike in current.
Product Variations
FV-24JR2
• DC (Direct Current) motor
• Auto operation by motion sensor
• Constant airflow
• Variable air volume
• Delay timer (15 minutes)
• Resonance – Noise – Absorption Structure
• Auto operation by motion sensor
• Constant airflow
• Variable air volume
• Delay timer (15 minutes)
• Resonance – Noise – Absorption Structure
FV-24JA2
• DC (Direct Current) motor
• Constant airflow
• Variable air volume
• Delay timer (15 minutes)
• Resonance - Noise - Absorption Structure
• Constant airflow
• Variable air volume
• Delay timer (15 minutes)
• Resonance - Noise - Absorption Structure
Specs
Constant Airflow
Variable Air Volume Selection
Super Low Noise Structure
FV-24JR2
-
Voltage [V]
-
220-240
-
-
Frequency [Hz]
-
50/60
-
-
Air Volume
-
Hi
-
160 [CMH] 94 [CFM]
-
-
Lo
-
120 [CMH] 71 [CFM]
80 [CMH] 47 [CFM]
-
-
-
Consumption [W]
-
8
5.2
3.6
-
-
RPM
-
742
556
441
-
-
Noise [dB(A)]
-
31
26
20
-
-
Weight [kg]
-
2.9
-
-
Installation Space [mm]
-
240 x 240
-
-
Duct Size [mm]
-
Ø100
-
FV-24JA2
-
Voltage [V]
-
220-240
-
-
Frequency [Hz]
-
50/60
-
-
Air Volume
-
Hi
-
160 [CMH] 94 [CFM]
-
-
Lo
-
120 [CMH] 71 [CFM]
80 [CMH] 47 [CFM]
-
-
-
Consumption [W]
-
8
5.2
3.6
-
-
RPM
-
742
556
441
-
-
Noise [dB(A)]
-
31
26
20
-
-
Weight [kg]
-
2.9
-
-
Installation Space [mm]
-
240 x 240
-
-
Duct Size [mm]
-
Ø100
-
