LUMIX S5IIX pilna kadra bezspoguļu kamera DC-S5M2XC

DC-S5M2XC

Pilnveidojiet savu radošo pasauli.

Pateicoties tādām uzlabotām funkcijām kā PDAF un I.S. (attēla stabilizētājs), LUMIX S5IIX lietošana ir patiesi patīkama pieredze. Uzņemiet augstas kvalitātes fotogrāfijas un video ar neierobežotu ieraksta ilgumu un baudiet uzlabotu mobilitāti, ko nodrošina šī kompaktā pilna kadra bezspoguļu kamera.
Tuvināt
Tālināt
Aizvērt
DC-S5M2XC

Iespējas

Dizaina filozofija

Saskaņā ar dizaina filozofiju “Emociju veidošana” LUMIX S5IIX virsma ir melna un īpaši matēta, kādas citām kamerām nav.
LUMIX DESIGN veido ierīces, kas atsaucas satura veidotāja emocijām. Forma un funkcija kļūst par emociju fizisku veidolu; ikviena detaļa ir tieši tur un tieši tāda, kā tas nepieciešams. Ja rokas zina, kas jādara, acis var koncentrēties uz subjektu. Veidojot vislabāko ierīci, mūsu mērķis bija radīt kameru, kuru varat lietot instinktīvi, ar precīzu vadību un maksimālu baudu.

LUMIX dizaina filozofija: emociju veidošana

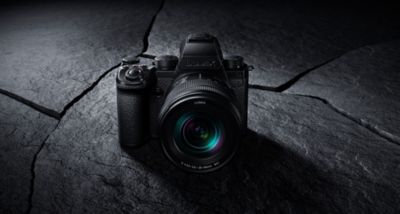

LUMIX S5IIX pilnībā melnais dizains palīdz satura veidotājam saplūst ar veidojamo saturu, aizmirstot par rīkiem, kas tiek izmantoti tā veidošanai. Kameras dizains iekļaujas uzņemšanas vidē un novērš atspīdumus acs varavīksnenē un ieraksta rīkos, tādējādi atvieglojot māksliniecisko radīšanas procesu.
LUMIX dizaina filozofija: emociju veidošana

Programmaparatūra 2.0 uzlabo agresīvus fotografēšanas stilus

Gatava visambiciozākajiem uzņēmumiem

Fāzes hibrīda AF nodrošina ātru un precīzu nepārtraukto fotografēšanu, savukārt LUMIX S5IIX īpaši uzlabotais AF nodrošina sporta, savvaļas dzīvnieku un automašīnu/motociklu fotografēšanas iespējas. * Turklāt nepārtrauktas uzņemšanas pirms aizslēga funkcija ļauj atgriezties pagātnē. * Tagad varat notvert katru īpašo mirkli.
* Lai izmantotu dzīvnieku acu/automobiļu/motociklu atpazīšanas un nepārtrauktas uzņemšanas pirms aizslēga funkciju, lūdzu, atjauniniet programmaparatūru uz versiju 2.0.
Gatava visambiciozākajiem uzņēmumiem

Lieliski piemērota fotografēšanai kustībā

LUMIX S5IIX arī ļauj ērti uzņemt video, atrodoties kustībā. Aktīvā I.S. nosaka kameras vibrācijas statusu un optimizē korekcijas koeficientus, kompensējot pat nozīmīgas kustības, savukārt uzlabotā E.I.S. * nomāc perifēros kropļojumus, kas rodas video uzņemšanas laikā. Tādēļ tagad varat uzņemt brīnišķīgus attēlus, pat ja jums filmēšanas laikā ātri jākustas.
* Atjauniniet aparātprogrammatūru uz versiju 2.0.
Lieliski piemērota fotografēšanai kustībā

Programmaparatūrā 2.0 ir ieviestas pirmās LUMIX funkcijas

Starpniekservera video ierakstīšana

Šī jaunā funkcija, ierakstot videoklipu, ieraksta zema bitu pārraides ātruma starpniekservera failu. Vienlaikus ierakstot starpniekservera failu, kas ir saistīts ar sākotnējo videoierakstu, iespējams ātrāk pabeigt filmēšanu un publicēt ierakstu.
* Atjauniniet aparātprogrammatūru uz versiju 2.1 vai jaunāku versiju.
Starpniekservera video ierakstīšana

Native Camera to Cloud integrācija pakalpojumā Adobe Frame.io

Izmantojot rīku Frame.io Camera to Cloud, autora attēli un videoklipi tiek automātiski augšupielādēti, dublēti, koplietoti un kopīgi apstrādāti mākoņa režīmā.
* Atjauniniet aparātprogrammatūru uz versiju 2.1 vai jaunāku versiju.
･ Ne visas Frame.io Camera to Cloud funkcijas tiek garantētas.
･Frame.io, Frame.io logotips un Camera to Cloud ir reģistrētas Adobe preču zīmes vai preču zīmes Amerikas Savienotajās Valstīs un/vai citās valstīs.
Native Camera to Cloud integrācija pakalpojumā Adobe Frame.io

Jauns vizuālās izteiksmes līmenis

RAW video datu izvade

LUMIX S5IIX nodrošina iespēju izvadīt RAW video datus caur HDMI, lai saglabātu tos kā ProRes RAW ATOMOS NINJA V+, NINJA V un Shogun CONNECT HDR monitoros-ieraksta ierīcēs.* Blackmagic RAW var ierakstīt arī ar Video Assist 12G HDR.**

*[ProRes RAW] ･Informāciju par ATOMOS Ninja V+, ATOMOS Ninja V vai ATOMOS Shogun CONNECT attiecīgo aparātprogrammatūru, lūdzu, meklējiet ATOMOS tīmekļa vietnē. Programmatūra, kas atbalsta ProRes RAW, ir nepieciešama, lai rediģētu RAW video, kas ierakstīts ar ATOMOS ATOMOS Ninja V+, ATOMOS Ninja V vai ATOMOS Shogun CONNECT. Pielietojiet LUT (Look up table), kas pieejama tālāk minētajā klientu atbalsta vietnē, lai panāktu tādu pašu krāsu gradāciju kā V-Log/V-Gamut https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ ･Pieejamās funkcijas ir atkarīgas no situācijas. **[Blackmagic RAW] ･Informāciju par Blackmagic Video Assist 12G HDR attiecīgo aparātprogrammatūru skatiet Blackmagic Design tīmekļa vietnē. ･Lai atskaņotu un rediģētu Blackmagic RAW datus, ir nepieciešams DaVinci Resolve vai DaVinci Resolve Studio. Lai iesniegtu projektus, izmantojot Blackmagic RAW datus izšķirtspējā, kas pārsniedz 3840x2160, ir nepieciešama DaVinci Resolve Studio programmatūra. ･Pieejamās funkcijas ir atkarīgas no situācijas.

RAW video datu izvade

Ārējs USB SSD ieraksts

Kamerā LUMIX S5IIX tiek atbalstīts ieraksts un atskaņošana, izmantojot ārēju SSD caur USB. Turklāt iespēja ierakstīt ProRes 422 HQ (maksimāli 1,9 Gbps) un 4:2:2: 10 bitu All-Intra tieši uz SSD, kas apvieno sevī mobilitāti un augstu ietilpību, ir uzlabojusi datu dublēšanas un pēcapstrādes efektivitāti.
Ārējs USB SSD ieraksts

Veiciet tiešraidi jebkurā laikā un vietā

Izvēlieties vēlamo straumēšanas pieeju, lai kopīgotu jaunāko saturu reāllaikā! Lietošanai ārā paredzētā bezvadu tiešraides straumēšanas (RTMP/RTMPS) ir vienkārša, izmantojot LUMIX Sync lietotni. Lietošanai telpās ir pieejama arī ļoti stabilā tiešraides straumēšana ar vadu (RTP/RTSP).

･Ir iespējama tiešraides straumēšana uz tādām platformām, kas atbilst RTMP/RTMPS (saderība ar visām platformām nav garantēta). Var būt gadījumi, kad tiešraides straumēšana nav iespējama, ja mainās platformas pakalpojums. Vairāk informācijas skatiet platformas noteikumos un nosacījumos. ･Tā kā tiešraides straumēšanas pārraides ātrums ir atkarīgs no interneta vides, viedtālruņa veiktspējas u. c., mēs iesakām jums iepriekš veikt pārraides pārbaudi. ･Tirdzniecībā pieejamais USB ethernet adapteris ir nepieciešams, lai pārvērstu DC-S5IIX kameras USB C tipa termināli par LAN termināli. USB ethernet adaptera savienojamība: https://panasonic.jp/support/global/cs/dsc/connect/ethernet_adp/index.html

Veiciet tiešraidi jebkurā laikā un vietā

Karstuma pārvaldība neierobežotam ieraksta ilgumam

4:2:2 10 bitu C4K/4K 60 p/50 p neierobežots ieraksta ilgums.* LUMIX S5IIX kamerai ir kompakts korpuss, kas ir līdzīgs S5 kamerai, un jauna optimizēta siltuma izkliedes struktūra, kas nodrošina ilgāku ierakstu pat pie augstas slodzes (piemēram, augstas izšķirtspējas video ar 4K, HFR video).
*Kamera var pārtraukt ierakstu, ja tiek izmantota temperatūrā, kas ir zemāka vai augstāka par ieteikto darbības temperatūru (0 līdz 40 grādiem).
Ieraksts apstājas, kad nepārtraukta ieraksta laiks pārsniedz 30 minūtes ar šādiem iestatījumiem: [MOV] ar [6K/29,97p] [6K/25,00p] [5,9K/29,97p] [5,9K/25,00p] vai [ProRes] ar [5,8K/29,97p] [5,8K/25,00p] [C4K/59,94p] [C4K/50,00p], kad termālās pārvaldības režīms ir iestatīts uz Standarta.
PAPILDINFORMĀCIJA
Karstuma pārvaldība neierobežotam ieraksta ilgumam

LUMIX krāsu zinātnes tehnoloģija

LUMIX apņemšanās nodrošināt vislabāko attēla kvalitāti

Jaunā programma nodrošina reālistiskākas krāsas, augstāku izšķirtspēju un dabisku trīsdimensiju efektu, bet apvienojumā ar Dual Native ISO tehnoloģiju — efektīvi nomāc troksni, pat pie īpaši augstas jutības, brīnišķīgi atainojot pat tumšās zonas.
LUMIX apņemšanās nodrošināt vislabāko attēla kvalitāti

Vienkārša krāsu korekcija ar REAL TIME LUT

Fotoattēlus un video, kuriem pielietota LUT, var ierakstīt iekšēji bez īpašas programmatūras. Pat ja jums nav montēšanas prasmju, kamera palīdz paplašināt izteiksmes veidus, cik vien to vēlaties.
Vienkārša krāsu korekcija ar REAL TIME LUT

Saistītie produkti

Objektīvi, kuri nodrošina augstas kvalitātes fotogrāfiju un video izteiksmi

LUMIX S sērija nodrošina augstāku optisko veiktspēju, mobilitāti un lietojamību bez kompromisiem. Pat tad, ka nomaināt objektīvu, visi jūsu attēli tiek atveidoti konsekventi, nodrošinot augstas kvalitātes mākslas darbus.

UZZINIET VAIRĀK PAR LUMIX S objektīviem
Objektīvi, kuri nodrošina augstas kvalitātes fotogrāfiju un video izteiksmi

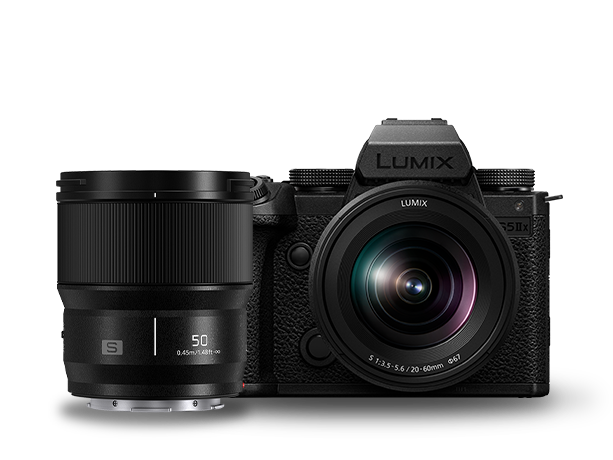

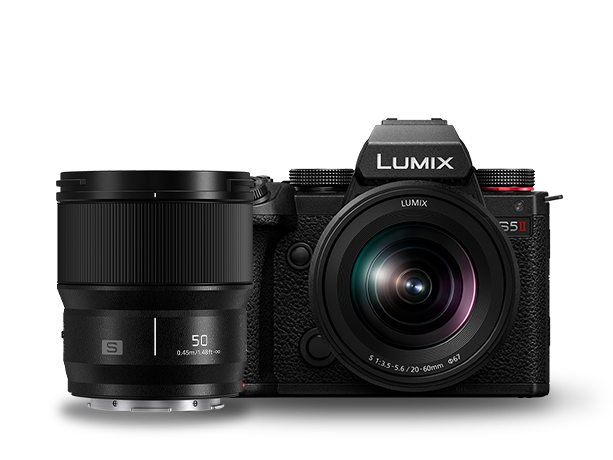

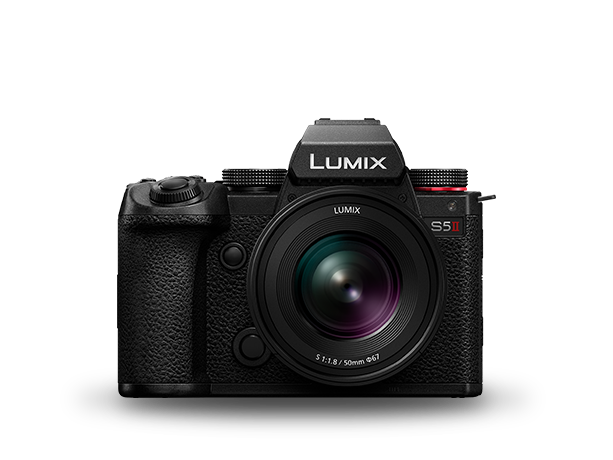

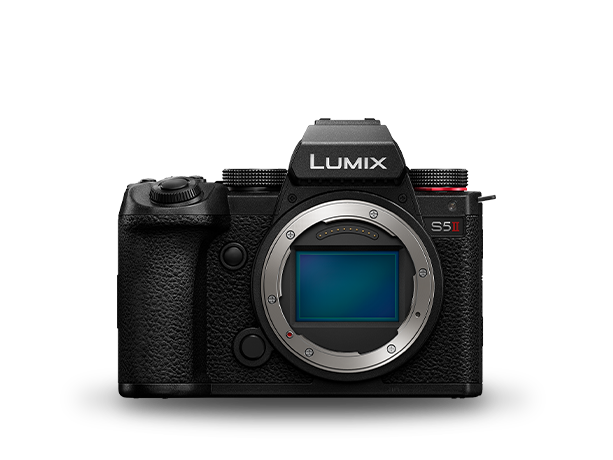

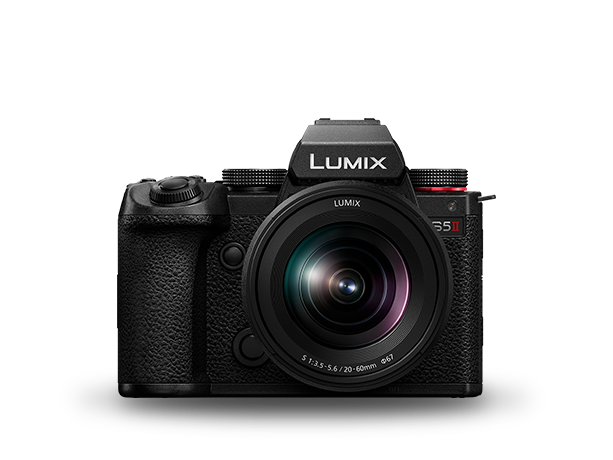

LUMIX S5 sērijas produkti

Tagad varat izvēlēties starp LUMIX S5IIX, kas nodrošina pat labāku vizuālo kvalitāti, un LUMIX S5II, kas paredzēta plašākam fotogrāfu un video veidotāju lokam.
UZZINIET VAIRĀK PAR LUMIX S5II
LUMIX S5 sērijas produkti

Flow State – uzņemts ar LUMIX S5IIX

Satura veidošanas projekts, kas izaicina trīs satura veidotājus paplašināt savas radošās robežas ar LUMIX S5IIX.
ATKLĀJIET VIŅU STĀSTUS
Flow State – uzņemts ar LUMIX S5IIX

Iedvesmai

Specifikācijas

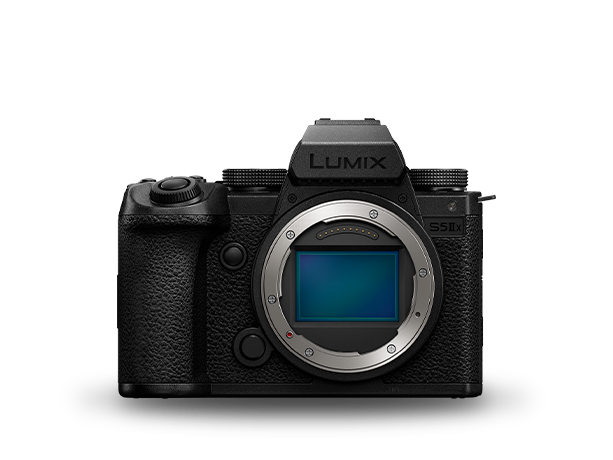

Fotoattēla LUMIX S5IIX pilna kadra bezspoguļu kamera DC-S5M2XC

Izmērs un svars

Augstums
102.3mm
Platums
134.3mm
Dziļums
90.1mm
Svars
740g

Visas vērtības ir aptuvenas. Svars ar SD karti un akumulatoru. Objektīvs ir iekļauts. Korpuss tikai 657 g. Izmēri bez izvirzījumiem.

  • L-MountL-Mount
  • 24,2 megapikseļi24,2 megapikseļi
  • Fāzu hibrīdais autofokussFāzu hibrīdais autofokuss
  • Aktīvās attēla stabilizācijas tehnoloģijaAktīvās attēla stabilizācijas tehnoloģija
  • C4K/4K 4:2:2 10 bitu 60 p/50 p videoC4K/4K 4:2:2 10 bitu 60 p/50 p video
  • HFR/VFR 10 bitu videoHFR/VFR 10 bitu video
  • V-logV-log
  • RAW video datu izvadeRAW video datu izvade
  • Tiešraides straumēšanaTiešraides straumēšana
  • 1 840 000 punktu brīvā leņķa monitors1 840 000 punktu brīvā leņķa monitors
  • 3680 tūkst. punktu OLED tiešā skata meklētājs3680 tūkst. punktu OLED tiešā skata meklētājs
  • Noturīgs pret putekļiem un šļakatāmNoturīgs pret putekļiem un šļakatām

Jaunais 24,2 MP sensors ar Dual Native ISO tehnoloģiju un jaunu īpaši izstrādātu programmu

Fāzu noteikšanas autofokuss un Aktīvās attēla stabilizācijas tehnoloģija

C4K/4K 60 p/50 p 4:2:2 10 bitu neierobežota ilguma ieraksts

RAW video datu izvade, ProRes video, All-Intra video un ārējs ieraksts USB-SSD diskā

TYPE

  • Type

    • Digital Single Lens Mirrorless camera

  • Lens mount

    • L-Mount

IMAGE SENSOR

  • Type

    • 35mm full-frame (35.6mm x 23.8mm) CMOS sensor

  • Camera effective pixels / Total pixels

    • 24.20 megapixels / 25.28 megapixels

  • AR (Anti Reflection) coating

    • Yes

  • Aspect ratio / Color filter

    • 3:2 / Primary color filter

  • Dust reduction system

    • Image sensor shift type

LATITUDE

  • 14+ stops (V-Log)

STILL IMAGE

  • Recording file format

    • JPEG (DCF, Exif 2.31), RAW

  • Aspect ratio

    • 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1

  • File size (pixels) when using full-frame lenses

    • 3:2
      • 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution mode.
    • 4:3
      • 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution mode.
    • 16:9
      • 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution mode.
    • 1:1
      • 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution mode.
    • 65:24
      • 6000x2208(L)
    • 2:1
      • 6000x3000(L)

  • File size (pixels) when using APS-C/Super 35mm lenses

    • 3:2
      • 3984x2656(L) / 2880x1920(M) / 2064x1376(S)
    • 4:3
      • 3536x2656(L) / 2560x1920(M) / 1840x1376(S)
    • 16:9
      • 3984x2240(L) / 2880x1624(M) / 1920x1080(S)
    • 1:1
      • 2656x2656(L) / 1920x1920(M) / 1376x1376(S)

  • Image quality

    • RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine)

  • Color space

    • sRGB, AdobeRGB

MOTION PICTURE

  • Recording file format

    • MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes
      MP4: H.264/MPEG-4 AVC, H.265/HEVC

  • Audio format

    • MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
      MP4: AAC (2ch 48kHz/16-bit)
      *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).

  • System frequency

    • 59.94Hz / 50.00Hz / 24.00Hz

  • Image area of video

    • Full / APS-C / PIXEL/PIXEL

  • Proxy (*⁶)

    • ON / OFF
      Proxy Rec Quality: H / M / L
      Real Time LUT (Proxy): ON / OFF
      *When the following functions are being used, proxy recording is not available: [MP4], [Rec Quality] exceeding a resolution of C4K, [Rec Quality] with [4:3] or [3:2] aspect ratio, [Rec Quality] with a high frame rate video, [HDMI RAW Data Output] and [Streaming].

  • MOV / 59.94Hz / FULL (*HLG is selectable.) (*¹) (*²)

    • [6K] 5952x3968 (3:2)
      • 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • [6K] 5952x3136 (17:9)
      • 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • [5.9K] 5888x3312 (16:9)
      • 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • [C4K] 4096x2160
      • 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • [4K] 3840x2160
      • 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • [FHD] 1920x1080
      • 119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV / 59.94Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)

    • [C4K] 4096x2160
      • 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *External USB-SSD recording.
    • [4K] 3840x2160
      • 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *External USB-SSD recording.
    • [3.3K] 3328x2496 (4:3)
      • 47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *External USB-SSD recording.
    • [FHD] 1920x1080
      • 119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Image Area of Video is set to APS-C.

  • MOV / 50.00Hz / FULL (*HLG is selectable.) (*¹) (*²)

    • [6K] 5952x3968 (3:2)
      • 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • [6K] 5952x3136 (17:9)
      • 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • [5.9K] 5888x3312 (16:9)
      • 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • [C4K] 4096x2160
      • 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • [4K] 3840x2160
      • 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • [FHD] 1920x1080
      • 100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV / 50.00Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)

    • [C4K] 4096x2160
      • 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *External USB-SSD recording.
    • [4K] 3840x2160
      • 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *External USB-SSD recording.
    • [3.3K] 3328x2496 (4:3)
      • 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *External USB-SSD recording.
    • [FHD] 1920x1080
      • 100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Image Area of Video is set to APS-C.

  • MOV / 24.00Hz / FULL (*HLG is selectable.) (*¹) (*²)

    • [6K] 5952x3968 (3:2)
      • 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • [6K] 5952x3136 (17:9)
      • 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • [5.9K] 5888x3312 (16:9)
      • 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • [C4K] 4096x2160
      • 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • [4K] 3840x2160
      • 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    • [FHD] 1920x1080
      • 48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • MOV / 24.00Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)

    • [C4K] 4096x2160
      • 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *External USB-SSD recording.
    • [4K] 3840x2160
      • 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *External USB-SSD recording.
    • [3.3K] 3328x2496 (4:3)
      • 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *External USB-SSD recording.
    • [FHD] 1920x1080
      • 48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

  • ProRes / 59.94Hz / FULL (*¹) (*²)

    • [5.8K] 5776x3056 (17:9)
      • 29.97p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        23.98p, 1.6Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        *External USB-SSD recording.
    • [C4K] 4096x2160
      • 29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        *External USB-SSD recording.
    • [FHD] 1920x1080
      • 59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes / 59.94Hz / APS-C / PIXEL/PIXEL (*¹) (*²)

    • [C4K] 4096x2160
      • 59.94p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        *External USB-SSD recording.
    • [3.3K] 3328x2496 (4:3)
      • 29.97p, 913Mbps (ProRes 422 HQ) / 609Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        23.98p, 730Mbps (ProRes 422 HQ) / 487Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        *External USB-SSD recording.
    • [FHD] 1920x1080
      • 59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes / 50.00Hz / FULL (*¹) (*²)

    • [5.8K] 5776x3056 (17:9)
      • 25.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        *External USB-SSD recording.
    • [C4K] 4096x2160
      • 25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        *External USB-SSD recording.
    • [FHD] 1920x1080
      • 50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes / 50.00Hz / APS-C / PIXEL/PIXEL (*¹) (*²)

    • [C4K] 4096x2160
      • 50.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        *External USB-SSD recording.
    • [3.3K] 3328x2496 (4:3)
      • 50.00p, 1.5Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        25.00p, 761Mbps (ProRes 422 HQ) / 508Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        *External USB-SSD recording.
    • [FHD] 1920x1080
      • 50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes / 24.00Hz / FULL (*¹) (*²)

    • [5.8K] 5776x3056 (17:9)
      • 24.00p, 1.6Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        *External USB-SSD recording.
    • [C4K] 4096x2160
      • 24.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        *External USB-SSD recording.
    • [FHD] 1920x1080
      • 24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • ProRes / 24.00Hz / APS-C / PIXEL/PIXEL (*¹) (*²)

    • [C4K] 4096x2160
      • 24.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        *External USB-SSD recording.
    • [3.3K] 3328x2496 (4:3)
      • 24.00p, 731Mbps (ProRes 422 HQ) / 487Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)*
        *External USB-SSD recording.
    • [FHD] 1920x1080
      • 24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

  • MP4 / 59.94Hz / FULL (*¹)

    • [4K] 3840x2160
      • 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • [FHD] 1920x1080
      • 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

  • MP4 / 59.94Hz / APS-C / PIXEL/PIXEL (*¹)

    • [4K] 3840x2160
      • 59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • [FHD] 1920x1080
      • 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

  • MP4 / 50.00Hz / FULL (*¹)

    • [4K] 3840x2160
      • 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • [FHD] 1920x1080
      • 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

  • MP4 / 50.00Hz / APS-C / PIXEL/PIXEL (*¹)

    • [4K] 3840x2160
      • 50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • [FHD] 1920x1080
      • 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

  • MP4 / 24.00Hz / FULL (*¹)

    • -

  • MP4 / 24.00Hz / APS-C / PIXEL/PIXEL (*¹)

    • -

SLOW & QUICK

  • MOV / 59.94Hz / FULL (*¹)

    • [FHD] 1920x1080
      • 59.94p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
        59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
        29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
        23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
        **External USB-SSD recording.

  • MOV / 59.94Hz / APS-C (*¹)

    • [C4K] 4096x2160
      • 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *External USB-SSD recording.
    • [4K] 3840x2160
      • 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *External USB-SSD recording.
    • [FHD] 1920x1080
      • 59.94p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
        59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
        29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
        23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
        **External USB-SSD recording.

  • MOV / 50.00Hz / FULL (*¹)

    • [FHD] 1920x1080
      • 50.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
        50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        25.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
        25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
        **External USB-SSD recording.

  • MOV / 50.00Hz / APS-C (*¹)

    • [C4K] 4096x2160
      • 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *External USB-SSD recording.
    • [4K] 3840x2160
      • 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *External USB-SSD recording.
    • [FHD] 1920x1080
      • 50.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
        50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        25.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
        25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
        **External USB-SSD recording.

  • MOV / 24.00Hz / FULL (*¹)

    • [FHD] 1920x1080
      • 24.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
        24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
        **External USB-SSD recording.

  • MOV / 24.00Hz / APS-C (*¹)

    • [C4K] 4096x2160
      • 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *External USB-SSD recording.
    • [4K] 3840x2160
      • 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *External USB-SSD recording.
    • [FHD] 1920x1080
      • 24.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
        24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
        **External USB-SSD recording.

EXTERNAL USB-SSD RECORDING

  • Yes (ON / OFF)

HDMI RAW DATA OUTPUT

  • Compatible external devices

    • ATOMOS HDMI field monitor/recorder "Ninja V+" / "Ninja V" / "Shogun CONNECT"
      *Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V+, ATOMOS Ninja V or ATOMOS Shogun CONNECT.
      *Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS Ninja V+ or ATOMOS Ninja V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut
      https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
      *All functions may not be available depending on the situation.

      Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR
      *Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR.
      *DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160.
      *All functions may not be available depending on the situation.

  • Rec quality / 59.94Hz / FULL

    • [5.9K] 5888x3312 (16:9)
      • 29.97p, 12-bit (LPCM)
        23.98p, 12-bit (LPCM)

  • Rec quality / 59.94Hz / APS-C

    • [4.1K] 4128x2176 (17:9)
      • 59.94p, 12-bit (LPCM)
        29.97p, 12-bit (LPCM)
        23.98p, 12-bit (LPCM)
    • [3.5K] 3536x2656 (4:3)
      • 29.97p, 12-bit (LPCM)
        23.98p, 12-bit (LPCM)

  • Rec quality / 50.00Hz / FULL

    • [5.9K] 5888x3312 (16:9)
      • 25.00p, 12-bit (LPCM)

  • Rec quality / 50.00Hz / APS-C

    • [4.1K] 4128x2176 (17:9)
      • 50.00p, 12-bit (LPCM)
        25.00p, 12-bit (LPCM)
    • [3.5K] 3536x2656 (4:3)
      • 50.00p, 12-bit (LPCM)
        25.00p, 12-bit (LPCM)

  • Audio format

    • LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
      *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).

STREAMING

  • Wi-Fi / Protocol

    • RTMP / RTMPS

  • Wi-Fi / 59.94Hz

    • [FHD] 1920x1080
      • 59.94p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
        29.97p, 6Mbps / 3Mbps (H.264)
    • [HD] 1280x720
      • 59.94p, 6Mbps (H.264)
        29.97p, 4Mbps (H.264)

  • Wi-Fi / 50.00Hz

    • [FHD] 1920x1080
      • 50.00p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
        25.00p, 6Mbps / 3Mbps (H.264)
    • [HD] 1280x720
      • 50.00p, 6Mbps (H.264)
        25.00p, 4Mbps (H.264)

  • USB Tethering / Protocol

    • RTMP / RTMPS

  • USB Tethering / 59.94Hz

    • [4K] 3840x2160
      • 29.97p, 12.5Mbps (H.264)
    • [FHD] 1920x1080
      • 59.94p, 16Mbps / 8Mbps (H.264)
        29.97p, 6Mbps / 3Mbps (H.264)
    • [HD] 1280x720
      • 59.94p, 6Mbps (H.264)
        29.97p, 4Mbps (H.264)

  • USB Tethering / 50.00Hz

    • [4K] 3840x2160
      • 25.00, 12.5Mbps (H.264)
    • [FHD] 1920x1080
      • 50.00p, 16Mbps / 8Mbps (H.264)
        25.00p, 6Mbps / 3Mbps (H.264)
    • [HD] 1280x720
      • 50.00p, 6Mbps (H.264)
        25.00p, 4Mbps (H.264)

  • Wired LAN / Protocol

    • RTP / RTSP

  • Wired LAN / 59.94Hz

    • [4K] 3840x2160
      • 59.94p, 50Mbps / 25Mbps (H.265)*
        59.94p, 50Mbps / 25Mbps (H.264)*
        29.97p, 25Mbps / 12.5Mbps (H.265)
        29.97p, 25Mbps / 12.5Mbps (H.264)
        *When Image Area of Video is set to APS-C or PIXEL/PIXEL.
    • [FHD] 1920x1080
      • 59.94p, 20Mbps / 16Mbps (H.265)
        59.94p, 16Mbps / 8Mbps (H.264)
        29.97p, 12Mbps / 6Mbps (H.265)
        29.97p, 6Mbps / 3Mbps (H.264)
    • [HD] 1280x720
      • 59.94p, 6Mbps (H.264)
        29.97p, 4Mbps (H.264)

  • Wired LAN / 50.00Hz

    • [4K] 3840x2160
      • 50.00p, 50Mbps / 25Mbps (H.265)*
        50.00p, 50Mbps / 25Mbps (H.264)*
        25.00p, 25Mbps / 12.5Mbps (H.265)
        25.00p, 25Mbps / 12.5Mbps (H.264)
        *When Image Area of Video is set to APS-C or PIXEL/PIXEL.
    • [FHD] 1920x1080
      • 50.00p, 20Mbps / 16Mbps (H.265)
        50.00p, 16Mbps / 8Mbps (H.264)
        25.00p, 12Mbps / 6Mbps (H.265)
        25.00p, 6Mbps / 3Mbps (H.264)
    • [HD] 1280x720
      • 50.00p, 6Mbps (H.264)
        25.00p, 4Mbps (H.264)

VIEWFINDER

  • Type

    • OLED Live View Finder

  • Pixels

    • Approx. 3.68 million dots

  • Field of view / Magnification

    • Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2

  • Eye point / Diopter adjustment

    • Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)

  • Eye sensor

    • Yes

  • Display speed

    • 120fps / 60fps

REAR MONITOR

  • Type

    • TFT LCD monitor with static touch control

  • Monitor size

    • Free-angle, 3.0-inch (7.6cm), 3:2 aspect

  • Pixels

    • Approx. 1.84 million dots

  • Field of view

    • Approx. 100%

STATUS LCD

  • -

FOCUS (*³)

  • Type

    • Phase Detection AF system / Contrast AF system

  • DFD technology

    • Yes

  • Focus mode

    • AFS (Single) / AFC (Continuous) / MF

  • AF mode

    • Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
      *Automatic Detection can be turned ON to switch between Human / Animal / Car (*⁶) / Motorcycle (*⁶). Except when Pinpoint is set.

  • AF detective range

    • EV -6 - 18 (F1.4, ISO100 equivalent, AFS)

  • AF custom setting

    • AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction

  • AF assist light

    • Yes

  • AF lock

    • Set the Fn button in custom menu to AF lock

  • Focus ring control

    • Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)

  • Others

    • AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resum

EXPOSURE CONTROL

  • Light metering system

    • 1,728-zone multi-pattern sensing system

  • Light metering mode

    • Multiple / Center Weighted / Spot / Highlight Weighted

  • Metering range

    • EV0-18 (F2.0 lens, ISO100 equivalent)

  • Mode dial

    • Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto
      *The same exposure operations as P/A/S/M mode is available.

  • Exposure compensation

    • 1/3 EV step ±5EV (±3EV for motion picture)

  • ISO sensitivity (Standard output sensitivity)

    • [Normal]
      Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO

      [V-Log]
      Auto / 320* / 640-51200 (1/3 or 1 EV step) *Extended ISO

      [HLG]
      Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO

  • Dual Native ISO

    • [Normal]
      Native ISO: 100, 640
      Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
      Low: Auto / 50* / 100-800 *Extended ISO
      High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO

      [V-Log]
      Native ISO: 640, 4000
      Auto: Auto / 320* / 640-51200 *Extended ISO
      Low: Auto / 320* / 640-5000 *Extended ISO
      High: Auto / 2000* / 4000-51200 *Extended ISO

      [HLG]
      Native ISO: 400, 2500
      Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
      Low: Auto / 400-3200
      High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO

      [Cinelike D2 / Cinelike V2]
      Native ISO: 200, 1250
      Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
      Low: Auto /100* / 200-1600 *Extended ISO
      High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO

  • AE lock

    • Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

  • B.I.S. (5-axis / 5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.]
    Dual I.S. 2 (6.5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]

WHITE BALANCE

  • White balance

    • AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4

  • White balance adjustment

    • Blue/Amber bias, Magenta/Green bias

  • Color temperature setting

    • 2500-10000K in 100K

SHUTTER

  • Type

    • Focal-plane shutter

  • Shutter speed

    • Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
      Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
      Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60
      Motion picture: 1/16,000 - 1/25
      Creative Video M mode / MF mode: 1/16,000 - 1/2

  • Self timer

    • 10sec, 3 images / 2sec / 10sec / Custom Time

  • Remote control

    • Remote control by DMW-RS2 (sold separately)

  • Silent mode / Shutter type

    • Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

  • AE bracket

    • 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst

  • Aperture bracket

    • 3, 5 or all positions

  • Focus bracket

    • 1 to 999 images, focus steps can be set in 10 levels

  • White balance bracket

    • 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

  • Burst speed

    • Mechanical shutter / Electronic front curtain shutter
      • H: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
        M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
        L: 2 frames/sec (AFS/AFC/MF) (with Live View)
    • Electronic shutter
      • SH30: 30 frames/sec (AFS/AFC/MF)
        SH30 PRE: 30 frames/sec (AFS/AFC/MF) (*⁶)
        H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
        M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
        L: 2 frames/sec (AFS/AFC/MF) (with Live View)

  • Number of recordable images

    • H/M/L*
      RAW+JPEG: More than 200 images
      RAW: More than 200 images
      JPEG: More than 300 images
      *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
      *When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".

      SH
      RAW / RAW+JPEG / JPEG: 200 images

FLASH

  • Flash type

    • TTL External Flash (sold separately)

  • Synchronization speed

    • Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.

  • Flash mode

    • Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.

  • Flash synchronization

    • 1st Curtain Sync, 2nd Curtain Sync.

  • Flash output adjustment

    • 1/3EV step ±3EV

  • Wireless control

    • Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

EXTRA TELE CONVERSION

  • 2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording.

COLOR SETTINGS

  • Photo Style

    • Photo Style
      • Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)*
        *Set to ON from Show/Hide Photo Style to select.
    • Picture adjustment
      • Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB / LUT
        *Adjustable settings vary depending on the Photo Style mode.

  • Filter

    • Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass

  • LUT Library

    • Vlog_709 / Set 1-10
      *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings.

MOTION PICTURE FUNCTION

  • Time lapse shot

    • Yes

  • Stop motion animation

    • Yes

  • Live cropping

    • Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes)

  • SS/Gain operation

    • Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB

  • Luminance level

    • 8-bit: 0-255 / 16-235 / 16-255
      10-bit: 0-1023 / 64-940 / 64-1023

  • Synchro scan

    • Yes

  • Master pedestal level

    • 31 steps

  • Color bars / 1kHz test tone

    • Yes (SMPTE / EBU / ARIB) / Yes

  • LUT view assist

    • Supported file types: .vlt, .cube
      Monitor / HDMI

  • HLG view assist

    • Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)

  • Anamorphic desqueeze display

    • 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF

  • Wave form monitor / Vectorscope

    • Selectable

  • Knee control

    • Yes (in Like709 mode)

  • Red REC frame indicator

    • ON / OFF

VERTICAL POSITION INFORMATION

  • Still image / Motion picture (ON/OFF)

LEVEL GAUGE

  • Yes

FUNCTION BUTTON

  • REC

    • Exposure Comp. / Dual Native ISO / Sensitivity / White Balance / Photo Style / Apply LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Color Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / AF-Point Scope (*⁵) / Proxy Recording (*⁶) / Restore to Default

  • PLAY

    • Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Send Images to Frame.io (*⁶) / Restore to Default

INTERFACE

  • USB

    • USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))

  • HDMI (*⁴)

    • HDMI
      • HDMI TypeA
        Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
    • Monitor-through
      • 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
        4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
    • Playback
      • 59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
        50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
        24.00Hz: C4K/24p / 4K/24p / 1080p
        *Only for playback.

  • Remote input

    • φ2.5mm

  • Audio

    • Build-in microphone
      • Stereo
        Wind Noise Canceller: OFF / Standard / High
    • External microphone / External audio device input
      • φ3.5mm for external microphone / external audio device
        MIC (Plug-in Power) / MIC / LINE
        Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately).
        Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
    • XLR microphone
      • Yes with DMW-XLR1 (sold separately)
    • 4ch mic input
      • Yes with DMW-XLR1 (sold separately)
    • Speaker
      • Monaural
    • Headphone output
      • φ3.5mm

  • SD card slot

    • Slot 1, Slot 2
      SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
      *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

TC IN/OUT

  • Count up

    • Rec Run / Free Run

  • Time code mode

    • Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)

  • HDMI time code output

    • ON / OFF

FAN

  • Auto1 / Auto2 / Fast / Normal / Slow* / OFF**
    *Not selectable when the resolution is higher than C4K, or the frame rate is higher than 60p.
    **OFF can be set when in iA/P/A/S/M mode.

WIRELESS

  • Wi-Fi

    • 2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
      5GHz bands (STA) (IEEE 802.11a/n/ac)
      Security: WPA/WPA2/WPA3

  • Bluetooth

    • Bluetooth® v5.0 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

  • Yes.
    *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

  • Battery

    • Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
      USB power supply, USB power charging, USB power delivery

  • Battery life (CIPA standard)

    • When using SD memory card
      • Approx. 370 images, 1,250 images (Power Save LVF mode*) with S-R2060
        Approx. 370 images, 1,200 images (Power Save LVF mode*) with S-S50
        *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
    • When using external USB-SSD
      • Approx. 300 images with S-R2060
        Approx. 300 images with S-S50

  • Continuous recordable time (Motion picture) (*¹)

    • MP4 [4K/60p]: Approx. 90 min (APS-C), MP4 [FHD/60p]: Approx. 130 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.

  • Actual recordable time (Motion picture) (*¹)

    • MP4 [4K/60p]: Approx. 45 min (APS-C), MP4 [FHD/60p]: Approx. 65 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.

  • Battery grip

    • DMW-BGS5 (sold separately)

DIMENSIONS / WEIGHT

  • Dimensions (W x H x D)

    • Approx. 134.3 x 102.3 x 90.1 mm / 5.29 x 4.03 x 3.55 inch (Body only, excluding protrusions)
      Approx. 134.3 x 102.3 x 157.0 mm / 5.29 x 4.03 x 6.19 inch (with S-R2060, excluding protrusions)
      Approx. 134.3 x 102.3 x 151.8 mm / 5.29 x 4.03 x 5.98 inch (with S-S50, excluding protrusions)

  • Weight

    • Approx. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap)
      Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap)

OPERATING ENVIRONMENT

  • Operating temperature

    • 0℃ to 40℃ (32℉ to 104℉)

  • Operating humidity

    • 10%RH to 80％RH

STANDARD ACCESSORIES

  • Software

    • LUMIX Tether
      ･This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
      http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)

      LUMIX Sync / LUMIX Lab (*⁷)
      ･This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
      https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)

      ･The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
      http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)

  • Standard accessories

    • DC-S5M2X Kit
      Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C)

      DC-S5M2XK Kit / DC-S5M2XC Kit
      Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C), Lens Cap, Lens Hood, Lens Rear Cap

      DC-S5M2XW Kit
      Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C), Lens Cap x 2, Lens Hood x 2, Lens Rear Cap x 2

      ･The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

Note

  • (*1) About motion picture recording

    - The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
    Motion pictures with 72Mbps or less: External USB-SSD, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
    Motion pictures with 200Mbps or less: External USB-SSD, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
    Motion pictures with 400Mbps or less: External USB-SSD, SD memory card with Video Speed Class 60 or higher
    Motion pictures with 600Mbps or less: External USB-SSD, SD memory card with Video Speed Class 90
    Motion pictures with 800Mbps or more or ProRes: External USB-SSD

    - A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
    Motion pictures with less than 72Mbps: 30 minutes
    Motion pictures with 72Mbps or more: 3 hours 4 minutes

    - A new file will be created to continue recording if the file size exceeds the following conditions.
    [MP4] in [FHD]: 4GB
    [MP4] in [4K]: 96GB
    [MOV] in 600Mbps or less: 192GB
    [MOV] in 800Mbps: 640GB
    [ProRes] in [5.7K]: 640GB

    - If the resolution is higher than C4K, the frame rate is higher than 60p or set to ProRes, the camera may stop the recording to protect itself. Wait until the camera cools down.
    - Recording stops when the continuous recording time exceeds 30 minutes with the following settings.
    [MOV] in [6K/29.97p] [6K/25.00p] [5.9K/29.97p] [5.9K/25.00p] when Thermal Management mode is set to Standard.
    [ProRes] in [5.8K/29.97p] [5.8K/25.00p] [C4K/59.94p] [C4K/50.00p] when Thermal Management mode is set to Standard.

    (*2) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR1 (sold separately).

    (*3) About AF
    - Automatic Detection is not available for High Frame Rate video shooting above 60p (100p or 120p).
    - Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting (100p or 120p) above 60p.

    (*4) To output motion pictures with 4K or higher, use a Premium High Speed HDMI cable (Type A - Type A plug).

    (*5) Firmware must be updated to version 1.3.

    (*6) Firmware must be updated to version 2.0.
Atvērt jaunu lapu drukāšanai

Saistītie produkti

DC-S5M2X

Pilna kadra bezspoguļu kamera ar fāzu hibrīdo autofokusu, Aktīvo attēla stabilizāciju, Augsta līmeņa video režīmu, C4K/4K 60 p/50 p 4:2:2 10 bitu neierobežota ilguma ierakstu u. c.

DC-S5M2XK

Pilna kadra bezspoguļu kamera ar fāzu hibrīdo autofokusu, Aktīvo attēla stabilizāciju, Augsta līmeņa video režīmu, C4K/4K 60 p/50 p 4:2:2 10 bitu neierobežota ilguma ierakstu u. c. 20-60 mm objektī...

DC-S5M2XW

Pilna kadra bezspoguļu kamera ar fāzu hibrīdo autofokusu, Aktīvo attēla stabilizāciju, Augsta līmeņa video režīmu, C4K/4K 60 p/50 p 4:2:2 10 bitu neierobežota ilguma ierakstu u. c. 20-60 mm objektī...

Piederumi

Objektīvi

S-R1635

LUMIX S PRO 16-35 mm F4

S-E2470

LUMIX S PRO 24-70 mm F2.8

S-E70200

LUMIX S PRO 70–200 mm F2.8 O.I.S.

S-R70200

LUMIX S PRO 70–200 mm F4 O.I.S.

S-X50

LUMIX S PRO 50 mm F1.4

S-R1428

L-Mount 14–28 mm platleņķa tālummaiņas objektīvs

S-R1840

L-Mount 18–40 mm platleņķa tālummaiņas objektīvs

S-R2060

L-Mount 20–60 mm standarta tālummaiņas objektīvs

S-R24105

LUMIX S 24–105 mm F4 MACRO O.I.S.

Fotoattēla S-R24105

S-R28200

L-Mount 28–200 mm platleņķa tālummaiņas objektīvs

S-R70300

L-Mount 70-300 mm telefoto tālummaiņas objektīvs

S-S18

L-Mount 18 mm objektīvs ar fiksētu fokusa attālumu

S-S24

L-Mount 24 mm objektīvs ar fiksētu fokusa attālumu

S-S35

L-Mount 35 mm objektīvs ar fiksētu fokusa attālumu

S-S50

L-Mount 50 mm objektīvs ar fiksētu fokusa attālumu

S-S85

L-Mount 85mm objektīvs ar fiksētu fokusa attālumu

Fotoattēla S-S85

S-E100

L-Mount 100 mm makroobjektīvs ar fiksētu fokusa attālumu

S-R26

L-Mount 26 mm makroobjektīvs ar fiksētu fokusa attālumu

Akumulators / akumulatora turētājs

DMW-BG1

Akumulatora turētājs ilgstošai fotografēšanai. Saderīgs ar LUMIX S5II (DC-S5M2), LUMIX S5IIX (DC-S5M2X) un LUMIX G9II (DC-G9M2).

DMW-BGS5

Akumulatora turētājs

DMW-BLK22

Akumulators

DMW-BTC15

Akumulatora lādētājs

DMW-BTCD15

Akumulatora lādētājs modelim DMW-BLK22 vai DMW-BLF19. (Tikai akumulatora lādētāja bloks. Maiņstrāvas adapteris, USB savienojuma kabelis un maiņstrāvas kabelis nav iekļauti komplektācijā.)

DMW-DCC18

DC savienotājs kamerām, kas saderīgs ar akumulatoru DMW-BLK22

DMW-AC11

AC adapteris lietošanai ar DC savienotāju DMW-DCC18

DMW-DCC17

Līdzstrāvas savienotājs

Fotoattēla DMW-DCC17

DMW-AC10E

Maiņstrāvas adapteris

Fotoattēla DMW-AC10E

Aizslēga tālvadības pults / trijkāja rokturis

DMW-RS2

Aizslēga tālvadības pults

DMW-SHGR2

Kompakts un viegls rokturis / mini statīvs ar USB C tipa savienojumu, kas ļauj sākt un apturēt video ierakstu un atbrīvot aizslēgu.

DMW-SHGR1

Trijkājis/rokturis

Fotoattēla DMW-SHGR1

Zibspuldzes

DMW-FL580L

Ārējā zibspuldze

DMW-FL360L

Ārējā zibspuldze

Fotoattēla DMW-FL360L

DMW-FL200L

Ārējā zibspuldze

Fotoattēla DMW-FL200L

VW-LED1

LED video apgaismojums

Fotoattēla VW-LED1

XLR mikrofona adapteris / mikrofoni

DMW-XLR1

XLR mikrofonu adapteris

DMW-MS2

Mikrofoni

DMW-VMS10

Mikrofoni

Fotoattēla DMW-VMS10

Pleca siksna

DMW-SSTG9

Pleca siksna

Fotoattēla DMW-SSTG9
Skatīt visus piederumus

Saņemt atbalstu

LUMIX S5IIX pilna kadra bezspoguļu kamera DC-S5M2XC

Apmeklēt šī produkta atbalsta lapu
