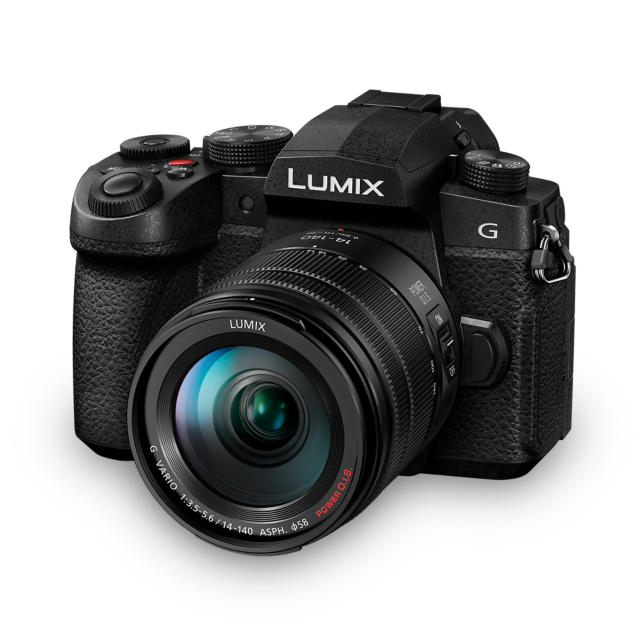

LUMIX G97 kamera DC-G97H
DC-G97H
Kompakta hibrīdā mikro četru trešdaļu kamera
Kamerā LUMIX G97 ir līdzsvarota augsta veiktspēja un vienkāršība, sniedzot tās lietotājiem rīkus, viņu fotografēšanas un video uzņemšanas prasmju uzlabošanai. LUMIX G97 apvieno izturību pret šļakatām un putekļiem, izcilu attēla kvalitāti un daudzpusīgas video funkcijas, tāpēc ikviens piedzīvojums tiks iemūžināts satriecoši detalizēti.
Iespējas
Dzidri un skaidri augstākās precizitātes attēli.
20,3 MP CMOS sensors apvienojumā ar augstas veiktspējas Venus Engine procesoru nodrošina izcilu attēla kvalitāti ar spilgtām krāsām un asām detaļām. Kamera ir aprīkota ar LUMIX Photo Style funkciju, kas ļauj precīzi pielāgot attēlus, izmantojot dažādas krāsu efektu opcijas, tādējādi nodrošinot, ka ikviens kadrs atbilst jūsu radošajai vīzijai.
*Šī fotogrāfija tika uzņemta ar līdzvērtīgas veiktspējas modeli.
Vairs nekādu izplūdušu attēlu
Apvienojumā ar korpusa un lēcas stabilizēšanas tehnoloģiju integrētais 5 asu dubultais A. S. 2 iegūst asus un neizplūdušus attēlus ar 5 iedaļu korekcijas jaudu līdz pat teleskopiskajai pozīcijai*.
* Pamatojoties uz CIPA standartu [nobīdes/slīpuma virziens: fokusēšanas attālums f = 140 mm (35 mm kameras ekvivalents f = 280 mm), ja tiek izmantots H-FSA14140]
Nekad nepalaidiet garām īpaši ātrus notikumus
LUMIX G97 nodrošina ātru automātisko fokusēšanu (0,07 s), izmantojot DFD tehnoloģiju (240 kadri/s), un ļauj fotogrāfiem uzņemt brīnišķīgus attēlus pat tad, ja objekti kustās ļoti ātri.
*Šī fotogrāfija tika uzņemta ar līdzvērtīgas veiktspējas modeli.
Video veiktspēja, kas apmierina visas vajadzības
Ierakstiet skaidrā 4K izšķirtspējā ar ātrumu 30p bez laika ierobežojumiem**, eksperimentējiet ar palēninātu (4x) vai paātrinātu (8x) kustību FHD izšķirtspējā un veidojiet kinematogrāfisku saturu ar 12 iestatījumu punktu V-Log L izšķirtspēju. Īpašas austiņu un mikrofona ligzdas nodrošina pilnīgu audio kontroli ierakstīšanas laikā.
*Šī fotogrāfija tika uzņemta ar līdzvērtīgas veiktspējas modeli.
** Kad apkārtējās vides temperatūra ir augsta, kamera var pārtraukt ierakstīšanu. Pagaidiet, līdz kamera atdziest.
** Kad apkārtējās vides temperatūra ir augsta, kamera var pārtraukt ierakstīšanu. Pagaidiet, līdz kamera atdziest.
Intuitīva darbība un uzticams dizains
Ar 1 840 000 punktu brīva leņķa LCD ekrānu un 2 360 000 punktu OLED tiešā skata meklētāju (0,74 reižu palielinājuma koeficients pie 35 mm kameras ekvivalenta) kamera LUMIX G97 ļauj ērti kadrēt un precīzi fokusēt kadrus pat gaišos apstākļos. Izturīgā pret putekļiem un šļakatām aizsargātā* konstrukcija ir ideāli piemērota ikdienas darbu veicējiem, kuriem nepieciešama kamera, ar kuru var droši darboties visdažādākajās situācijās.
* Apzīmējums “Noturīga pret putekļiem un šļakatām” negarantē, ka šai kamerai neradīsies bojājumi, nonākot tiešā saskarē ar putekļiem un ūdeni.
Iedvesmai
Specifikācijas
Izmērs un svars
- Augstums
- 93.5mm
- Platums
- 130.4mm
- Dziļums
- 77.4mm
- Svars
- 530g
Visas vērtības ir aptuvenas. Objektīvs nav iekļauts. Svars ar stiprinājuma pārsegu, akumulatoru un SD karti. Korpuss tikai 478 g. Izmēri bez izvirzījumiem.
Micro Four Thirds sistēmas standarts- 20,3 megapikseļi
- Piecu asu dubultais A.S. 2 (attēla stabilizētājs)
- 4K video ierakstīšanas iespēja
- V-Log L
- 4K PHOTO
- 2 360 000 punktu OLED tiešā skata meklētājs
- 1 840 000 punktu brīvā leņķa monitors
- USB Type-C® akumulatora uzlāde
- Noturīga pret šļakatām un putekļiem
- Bluetooth®
20,3 MP CMOS sensors bez garo gaismas viļņu filtra
Saderīgs ar 5,0 iedaļu piecu asu dubulto attēla stabilizētāju 2 un 5,0 iedaļu 5 asu korpusa attēla stabilizators
4K 30p video ierakstīšana bez laika ierobežojuma un V-Log L
2 360 000 punktu OLED LVF un 1 840 000 punktu brīvā leņķī pagriežams monitors
TYPE
-
Type
-
Digital Single Lens Mirrorless camera
-
-
Lens mount
-
Micro Four Thirds mount
-
IMAGE SENSOR
-
Type
-
CMOS sensor (17.3 x 13.0 mm)
-
-
Camera effective pixels / Total pixels
-
Approx. 20.3 megapixels / Approx. 21.8 megapixels
-
-
Aspect ratio / Color filter
-
4:3 / Primary color filter
-
-
Dust reduction system
-
Image sensor shift type
-
LATITUDE
-
12 stops (V-Log L)
STILL IMAGE
-
Recording file format
-
Still image
-
JPEG (DCF, Exif 2.31), RAW
-
-
4K PHOTO (*¹)
-
MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
Extracted still images: JPEG (DCF, Exif 2.31)
-
-
-
Aspect ratio
-
4:3 / 3:2 / 16:9 / 1:1
-
-
File size (Pixels)
-
4:3
-
5184x3888(L) / 3712x2784(M) / 2624x1968(S) / 3328x2496(4K PHOTO)
-
-
3:2
-
5184x3456(L) / 3712x2480(M) / 2624x1752(S) / 3504x2336(4K PHOTO)
-
-
16:9
-
5184x2920(L) / 3840x2160(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
-
-
1:1
-
3888x3888(L) / 2784x2784(M) / 1968x1968(S) / 2880x2880(4K PHOTO)
-
-
-
Image quality
-
RAW / RAW+Fine / RAW+Standard / Fine / Standard
-
-
Color space
-
sRGB / AdobeRGB
-
MOTION PICTURE (*¹)
-
Recording file format
-
MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
-
-
File size (Pixels)
-
[4K] 3840x2160
-
30p, 100Mbps
25p, 100Mbps
24p, 100Mbps
-
-
[FHD] 1920x1080
-
60p, 28Mbps
50p, 28Mbps
30p, 20Mbps
25p, 20Mbps
-
-
[HD] 1280x720
-
30p, 10Mbps
25p, 10Mbps
-
-
-
Slow & Quick
-
[FHD] 1920x1080
-
60p (1/2 / 2x / 4x / 8x)
50p (1/2 / 2x / 4x / 8x)
30p (1/4 / 1/2 / 2x / 4x / 8x)
25p (1/4 / 1/2 / 2x / 4x / 8x)
-
-
VIEWFINDER
-
Type
-
OLED Live View Finder
-
-
Pixels
-
Approx. 2,360k dots
-
-
Field of view / Magnification
-
Approx. 100% / Approx. 1.48x / 0.74x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m⁻¹, when the aspect ratio is set to 4:3
-
-
Eye point / Diopter adjustment
-
Approx. 20mm at infinity; -1.0 m⁻¹ / -4.0 - +4.0 (dpt)
-
-
Eye sensor
-
Yes
-
REAR MONITOR
-
Type
-
TFT LCD monitor with static touch control
-
-
Monitor size
-
Free-angle, 3.0-inch (7.6cm), 3:2 aspect
-
-
Pixels
-
Approx. 1,840k dots
-
-
Field of view
-
Approx. 100%
-
FOCUS
-
Type
-
Contrast AF system
-
-
DFD technology
-
Yes
-
-
Focus mode
-
AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF
-
-
AF mode
-
Face/Eye Detection / Tracking / 49-Area / Custom Multi / 1-Area / Pinpoint
(Full area touch is available) (Scalable AF frame size and flexible AF position)
-
-
AF detective range
-
EV -4 - 20 (F2.0, ISO100 equivalent, AFS)
-
-
Starlight AF
-
Yes
-
-
AF assist lamp
-
Yes
-
-
AF lock
-
Yes (AF/AE Lock button)
-
-
Post Focus / Focus Stacking
-
Yes / Yes
-
-
Others
-
AF Sensitivity, AF-ON, Focus Peaking, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume
-
EXPOSURE CONTROL
-
Light metering system
-
1728-zone multi-pattern sensing system
-
-
Light metering mode
-
Multiple / Center Weighted / Spot
-
-
Metering range
-
EV 0 - 18 (F2.0 lens, ISO100 equivalent)
-
-
Mode dial
-
Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / S&Q / Custom / Scene Guide / Creative Control / Intelligent Auto
*The same exposure operations as P/A/S/M mode is available.
-
-
Exposure compensation
-
1/3 EV step, ±5EV (±3 EV for motion picture)
-
-
ISO sensitivity (Standard output sensitivity)
-
Still image: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)
Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 (Changeable to 1/3 EV step)
-
-
AE lock
-
Yes (AF/AE Lock button)
-
IMAGE STABILIZATION SYSTEM
-
B.I.S. (5-axis / 5.0-stop*)
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-FS12060 is used.]
Dual I.S. 2 (5.0-stop**)
**Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FSA14140 is used.]
WHITE BALANCE
-
White balance
-
AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
-
-
White balance adjustment
-
Blue/Amber bias, Magenta/Green bias
-
-
Color temperature setting
-
2500-10000K in 100K
-
SHUTTER
-
Type
-
Focal-plane shutter
-
-
Shutter speed
-
Still image: Bulb (Max. 30 minutes), 1/4,000 - 60
Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
Electronic shutter: 1/16,000 - 1
Motion picture: 1/16,000 - 1/25
Creative Video M mode / MF mode: 1/16,000 - 1/2
-
-
Live View Composite
-
1/2 - 60
-
-
Self timer
-
10sec, 3 images / 2sec / 10sec
-
-
Remote control
-
Remote control by DMW-RS2 (sold separately)
-
-
Silent mode / Shutter type
-
Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic)
-
BRACKET
-
AE bracket
-
3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
-
-
Aperture bracket
-
3, 5 or all positions
-
-
Focus bracket
-
1 to 999 images, focus steps can be set in 10 levels
-
-
White balance bracket
-
3 images in blue/amber axis or in magenta/green axis, color temperature setting
-
BURST SHOOTING
-
Burst speed
-
Mechanical shutter / Electronic front curtain shutter
-
H: 9 frames/sec (AFS/MF), 6 frames/sec (AFF/AFC) (with Live View) *When H-FS12060 is used.
M: 6 frames/sec (with Live View)
L: 2 frames/sec (with Live View)
-
-
Electronic shutter
-
H: 9 frames/sec (AFS/MF), 6 frames/sec (AFF/AFC) (with Live View) *When H-FS12060 is used.
M: 6 frames/sec (with Live View)
L: 2 frames/sec (with Live View)
-
-
-
Number of recordable images
-
RAW / RAW+JPEG: More than 27 images
JPEG: More than 600 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".)
*Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
-
4K PHOTO (*¹)
-
Burst speed
-
30 frames/sec
-
-
Exif information
-
Yes (Each JPEG image cropped out of the 4K burst file complies with EXIF.)
-
FLASH
-
Flash type
-
TTL Built-in-Flash, GN9.0 equivalent (ISO200 ・m) / GN6.4 equivalent (ISO100 ・m) (Reference), Built-in pop-up
-
-
Flash mode
-
Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off *For iA, iA+ only.
-
-
Flash synchronization
-
1st. Curtain Sync., 2nd Curtain Sync.
-
-
Flash output adjustment
-
1/3EV step ±3EV
-
-
Synchronization speed
-
Less than 1/200 second
-
-
Wireless control
-
Yes
-
COLOR SETTINGS
-
Photo Style
-
Photo Style
-
Standard / Vivid / Natural / Scenery / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D / Cinelike V / V-Log L / Custom
-
-
Picture adjustment
-
Contrast / Sharpness / Noise Reduction / Saturation / Color Tone / Filter Effect / Grain Effect
*Adjustable settings vary depending on the Photo Style mode.
-
-
-
Filter
-
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
*For photos only.
-
OTHER FUNCTIONS
-
Time lapse shot
-
Yes
-
-
Stop motion animation
-
Yes
-
-
Digital zoom
-
2x / 4x
-
-
Extra Tele Conversion
-
Still image: Max. 2.0x (EX S), Max. 1.4x (EX M in 4:3, 3:2, 1:1), Max. 1.3x (EX M in 16:9)
Motion picture: Max. 4.0x (HD), Max. 2.7x (FHD)
-
-
Other functions
-
Real-time Histogram, Guide Lines (3 patterns), Live View Boost, Highlight Display, Center Marker, Zebra Pattern, REC Frame Indicator
-
VERTICAL POSITION INFORMATION
-
Still image / Motion picture (ON/OFF)
LEVEL GAUGE
-
Yes
FUNCTION BUTTON SETTINGS
-
REC
-
Wi-Fi / Q.MENU / Video Record / LVF/Monitor Switch / LVF/Monitor Disp. Style / AF/AE LOCK / AF-ON / Preview / One Push AE / Touch AE / Level Gauge / Focus Area Set / Zoom Control / 1 Shot "4K PHOTO" / Operation Lock / Focus Ring Lock / Dial Operation Switch / Photo Style / Filter Effect / Aspect Ratio / Picture Size / Quality / AFS/AFF / Metering Mode / Burst Rate / 4K PHOTO / Self Timer / Bracket / Highlight Shadow / i. Dynamic / i. Resolution / Min. Shtr Speed / HDR / Shutter Type / Flash Mode / Flash Adjust. / Wireless Flash Setup / Ex. Tele Conv. / Digital Zoom / Stabilizer / E-Stabilization (Video) / I.S. Lock (Video) / 4K Live Cropping / Snap Movie / Motion Pic. Set / Picture Mode in Rec. / Sound Rec Level Adj. / Sound Rec Level Disp. / Mic. Directivity Adjust / Silent Mode / Peaking / Histogram / Guide Line / Zebra Pattern / Monochrome Live View / Constant Preview / Live View Boost / Rec Area / Step Zoom / Zoom Speed / Exposure Comp. / Sensitivity / White Balance / AF Mode/MF / Slow & Quick Setting / Rec/Playback Switch / Restore to Default
-
-
PLAY
-
Wi-Fi / LVF/Monitor Switch / Rec/Playback Switch / Send Image (Smartphone) / 4K PHOTO Play / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / RAW Processing / 4K PHOTO Bulk Saving / Restore to Default
-
INTERFACE
-
USB
-
USB Type-C® (USB 2.0 High-Speed)
-
-
HDMI
-
HDMI
-
microHDMI TypeD / VIERA Link
-
-
Monitor-through
-
4:2:2 8bit / 4:2:0 8bit
-
-
Playback
-
Video: Auto / 4K/25p / 1080p / 1080i / 720p / 576p
Audio: Stereo
-
-
-
Remote input
-
φ2.5mm
-
-
Audio
-
Build-in microphone
-
Stereo
Wind Noise Canceller: OFF / Standard / High
-
-
External microphone input
-
φ3.5mm
Wind Cut: OFF / Low / Standard / High *When attaching Φ3.5mm microphone.
Special Mic: Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
-
-
Speaker
-
Monaural
-
-
Headphone output
-
φ3.5mm
-
-
-
SD card slot
-
SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards.
-
WIRELESS
-
Wi-Fi
-
IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (1-11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode
-
-
Bluetooth
-
Bluetooth® v5.0 (Bluetooth Low Energy (BLE))
-
DUST AND SPLASH RESISTANT*
-
Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
POWER
-
Battery
-
Li-ion Battery Pack (7.2V, 1,200mAh, 8.7Wh) (bundled)
USB power supply, USB power charging
-
-
Battery life (CIPA standard)
-
Approx. 280 images (rear monitor), 300 images (LVF), 1,050 images (Power Save LVF mode*) with H-FS12060
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
-
-
Continuous recordable time (Motion picture) (*¹)
-
4K/30p: Approx. 90 min with H-FS12060
-
-
Actual recordable time (Motion picture) (*¹)
-
4K/30p: Approx. 45 min with H-FS12060
-
DIMENSIONS / WEIGHT
-
Dimensions (W x H x D)
-
Approx. 130.4 x 93.5 x 77.4 mm / 5.14 x 3.69 x 3.05 inch (Body only, excluding protrusions)
-
-
Weight
-
Approx. 530g / 1.17 lb (SD card, Battery, Body)
Approx. 478g / 1.06 lb (Body only)
Approx. 740g / 1.64 lb (SD card, Battery, H-FS12060 lens included) (excluding lens cap and lens rear cap)
Approx. 795g / 1.76 lb (SD card, Battery, H-FSA14140 lens included) (excluding lens cap and lens rear cap)
-
OPERATING ENVIRONMENT
-
Operating temperature
-
0℃ to 40℃ (32°F to 104°F)
-
-
Operating humidity
-
10%RH to 80％RH
-
STANDARD ACCESSORIES
-
Software
-
･The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Adwaa's website using computer connected to the Internet.
http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
-
-
Standard accessories
-
DC-G97 Kit
Battery Pack, Shoulder Strap, Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector
DC-G97M / DC-G97H Kit
Battery Pack, Shoulder Strap, Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Lens Cap, Lens Hood, Lens Rear Cap
･Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.
-
Note
-
(*1) About motion picture recording / 4K PHOTO recording
- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [FHD] or [HD].
- Use a card with SD Speed Class with UHS-I / UHS-II Speed Class 3 (U3) when recording motion pictures in [4K] or [4K PHOTO].
- Motion pictures in [4K]:
- When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
- When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- Motion pictures in [FHD] [HD]:
- You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
Saistītie produkti
Piederumi
Objektīvi
H-FS12032
LUMIX G VARIO 12–32 mm/F3,5–F5,6 ASPH. /MEGA O.I.S.
H-PS14042
LUMIX G X VARIO PZ 14–42 mm/F3,5–5,6 ASPH. /POWER O.I.S.
H-FS35100
LUMIX G VARIO 35–100 mm/F4,0–5,6 ASPH. /MEGA O.I.S.
H-FS45150
LUMIX G VARIO 45–150 mm/F4,0–5,6 ASPH. /MEGA O.I.S.
H-HS030
LUMIX G MACRO 30 mm/F2,8 ASPH. /MEGA O.I.S.
Akumulators / akumulatora turētājs
Trijkāja rokturis / aizvara tālvadības pults
Mikrofoni
VW-VMS10
Mikrofoni
Citas iespējas
DMW-BDC1
Korpusa vāciņš
DMW-TA1
Trijkāja adapteris
