XLR mikrofona adapteris DMW-XLR2

Skatīt produktu lapu

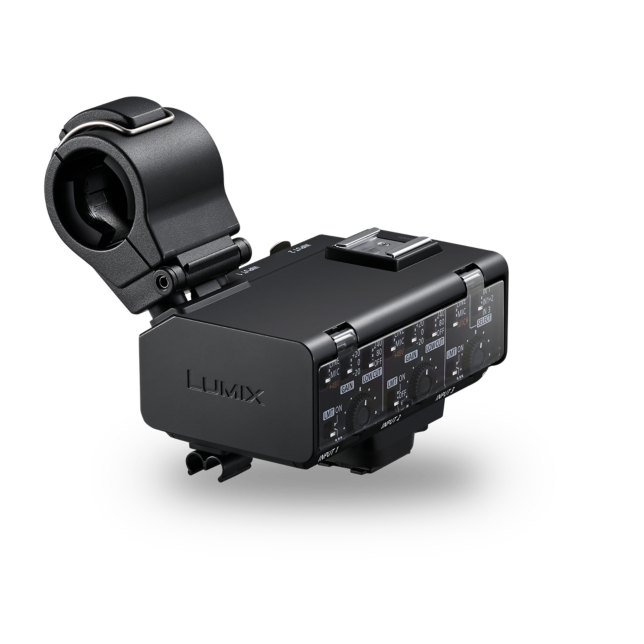

Fotoattēla XLR mikrofona adapteris DMW-XLR2

INPUT1 / INPUT2

  • Input Terminal

    • XLR 3-pin (female)

  • Standard Input Level

    • LINE: 0 dBu
      MIC, +48V: -40 dBu
      (0 dBu=0.775 Vrms)

  • Standard Recording Level

    • -12 dBFS (at the standard input)

  • Frequency Characteristic

    • 20Hz to 40kHz, +1/-1 dB (during Fs=96kHz, during LINE)

  • Phantom Power Source

    • 48V

INPUT3

  • Input Terminal

    • φ3.5mm stereo mini jack

  • Standard Input Level

    • LINE: -10 dBV
      MIC, MIC (plug-in power): -40 dBV
      (0 dBV=1 Vrms)

  • Standard Recording Level

    • -12 dBFS (at the standard input)

  • Frequency Characteristic

    • 20Hz to 40kHz, +1/-1 dB (during Fs=96kHz, during LINE)

  • Plug-in Power

    • 2.5V

Sampling Frequency Bit Length / Number of Recording Channels

  • Linear Recording

    • 48kHz/24-bit/2ch, 96kHz/24-bit/2ch
      (Select one of INPUT1, INPUT1+2, or INPUT3)
      48kHz/24-bit/4ch

  • Float Recording

    • 48kHz/32-bit/2ch, 96kHz/32-bit/2ch
      (Select one of INPUT1, INPUT1+2, or INPUT3)
      48kHz/32-bit/4ch

Dimensions (W x H x D)

  • Approx. 61.2 x 60.9 x 92 mm / 2.41 x 2.40 x 3.63 inch (without microphone holder)
    Approx. 94.6 x 106.2 x 92 mm / 3.73 x 4.19 x 3.63 inch (with microphone holder)
    (excluding the projecting parts)

Weight

  • Approx. 158 g / 0.35 lb (without microphone holder)
    Approx. 192 g / 0.43 lb (with microphone holder)

Operating Temperature

  • -10℃ to 40℃ (14℉ to 104℉)

Operating Humidity

  • 10 - 80 %RH

Standard Accessories

  • Cable Holder, Microphone Holder, Pouch
