SC-PMX802 augstākā līmeņa Hi-Fi sistēma ar DAB, CD un augstas izšķirtspējas straumēšanu

Skatīt produktu lapu

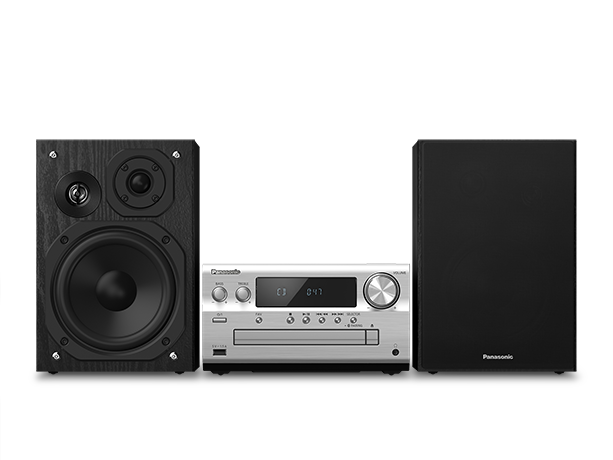

Fotoattēla SC-PMX802 augstākā līmeņa Hi-Fi sistēma ar DAB, CD un augstas izšķirtspējas straumēšanu

Amplifier

  • Amp Type

    • 2ch Amp (JENO Engine)

  • RMS Output Power

    • Total RMS Stereo Mode Power

      • 120W

    • Front Speaker (Left / Right)

      • 60W + 60W (1 kHz, THD 10%, 3Ω)

Speaker System

  • Front Speaker (Left / Right)

    • Type

      • 3 Way, 3 Speaker System

    • Speaker Unit (Woofer)

      • Bamboo Charcoal PP 14 cm

    • Speaker Unit (Tweeter)

      • Silk Dome Tweeter 1.9 cm

    • Speaker Unit (Sup. Tweeter)

      • Piezo Tweeter 1.5cm

    • Bass Expand

      • Bass Reflex Port

CD

  • Playback Disc *¹

    • CD-R / RW

  • Format

    • CD-DA / MP3

Internal Memory

  • -

USB

  • Playback

    • Yes *²

  • USB Standard

    • USB 2.0 High-speed

  • Playback Format

    • DSD

      • Yes (2.8MHz, 5.6MHz)

    • WAV, AIFF

      • Yes (up to 192kHz / 24bit)

    • FLAC

      • Yes (up to 192kHz / 24bit)

    • AAC

      • Yes (up to 48kHz / 320kbps)

    • MP3

      • Yes (up to 48kHz/320kbps)

  • Battery Charge

    • Other portable device (1.5 A)

  • USB-DAC function

    • Playback Format

      • DSD(2.8MHz, 5.6MHz)
        WAV, AIFF: up to 192k / 24bit
        FLAC: up to 192kHz /24bit
        MP3: up to 48kHz / 320kbps

    • Player Application (Windows / Mac OS)

      • Yes

Radio

  • Station Presets

    • FM

      • 30 Stations (87.5〜108MHz (50K step))

    • DAB Plus

      • 20 Stations (174.928〜239.2MHz)

  • Radio Data System

    • Yes

  • Auto Tuning

    • Yes

  • Auto Preset

    • Yes

  • Antenna Terminal

    • 75 ohm unbalanced

Network

  • Bluetooth®

    • Version

      • Ver.4.2

    • Class

      • Class 2

    • Function

      • Wireless audio playback / Remote control

    • Codec

      • SBC / AAC

    • Connectivity

      • Multi-Pairing (MAX 8 Devices)

    • Bluetooth Standby

      • Yes

  • Wi-Fi

    • Wi-Fi *³

      • Yes

    • WLAN Standard

      • IEEE802.11a/b/g/n/ac

    • Frequency Range

      • 2.4GHz band / 5GHz band

    • DLNA

      • Yes

  • AirPlay

    • Yes (AirPlay 2) *⁴

  • Chromecast built-in

    • Chromecast built-in Speaker grouping

      • Yes

    • Chromecast built-in Multi-zone

      • Yes

    • Chromecast built-in Stereo Pair

      • -

    • Chromecast built-in Wireless surround

      • -

  • Compatible with Google Assistant

    • Yes

  • works with Alexa

    • -

  • StreamUnlimited

    • SDK

      • Yes

    • Multi-room = Party Mode

      • -

    • Multi-zone

      • Yes

    • Re-transmission

      • -

    • Stereo Pair

      • -

  • Favourite Button

    • Main Unit

      • FAV

    • Remote

      • FAV, 1-9

  • AUX-In Auto Play

    • Yes (for 3.5mm Stereo mini input)

  • NFC

    • -

  • Smartphone App

    • Panasonic Music Control App *⁵

      • Yes (iOS / Android)

  • Online Music Services

    • Spotify Connect

      • Yes

    • Airable

      • Yes (Internet Radio, Podcasts, TIDAL, Deezer)

Sound Function

  • Super Sound EQ, Super Bass Sound

    • D.Bass

  • EQ

    • Preset EQ

      • 4 Preset

    • Manual EQ

      • Bass / Treble (±4)

  • Surround

    • Yes

  • Karaoke

    • -

  • My Sound Setting

    • -

  • Clear-mode Dialog

    • -

  • XBS Master

    • -

  • High-Res AUDIO

    • Yes

  • Re-Master

    • CD High-Res Re-Master

      • Yes

    • Bluetooth Re-Master

      • Yes

    • MP3 Re-Master

      • Yes

    • USB Re-Master

      • -

    • Streaming Re-Master

      • -

Terminals

  • USB Port

    • USB Type-A x1 / USB Type-B x1

  • Audio IN

    • RCA Pin Jack (AUDIO IN) / 3.5 mm Stereo mini (AUX IN) / Opt-In (for LPCM)

  • Audio OUT

    • Phones (3.5 mm)

  • Mic Jack

    • -

  • Speaker Terminal

    • Screw Type

  • LAN

    • Yes

General

  • Power Supply

    • AC 220 - 240 V, 50 Hz

  • Power Consumption *⁶

    • Normal Use

      • 43 W

    • Network Standby Off

      • 0.4 W

    • Network Standby

      • 2 W

  • Display Type

    • FL (Union Jack)

  • Language Indication

    • Alphabet

  • Dimmer

    • Yes

  • Auto OFF

    • Yes

  • Timer

    • Sleep

      • Yes

    • Clock

      • Yes

    • Play Timer

      • Yes

    • Rec Timer

      • -

Dimension

  • Main Unit (W x H x D)

    • 211 x 114 x 267 mm

  • Speaker Unit (W x H x D)

    • 161 x 238 x 262 mm

Weight

  • Main Unit

    • 2.9 kg

  • Speaker Unit

    • 2.6 kg

Color

  • Silver

Accessories

  • Remote Control

    • Yes

  • Dry Batteries for Remote Control

    • Yes

  • AC Cord

    • Yes (1.5 m)

  • Speaker Cable

    • Yes (1.2m, AWG22, White)

  • Operating Instruction

    • Yes

  • Quick Start Guide

    • Yes

Note:

  • *1 Playability may vary depending on the contents, discs and quality of the recording.
    *2 Only a USB flash drive. Playback is not possible from a portable device (Apple, Android™, etc.) using a USB extension cable.
    *3 The WLAN feature of this product shall exclusively be used inside buildings.
    *4 iOS 11.4 or later is required.
    *5 Download on the App Store. Download on Google Play.
    *6 Specifications are subject to change without notice. All numbers given here are approximate.
