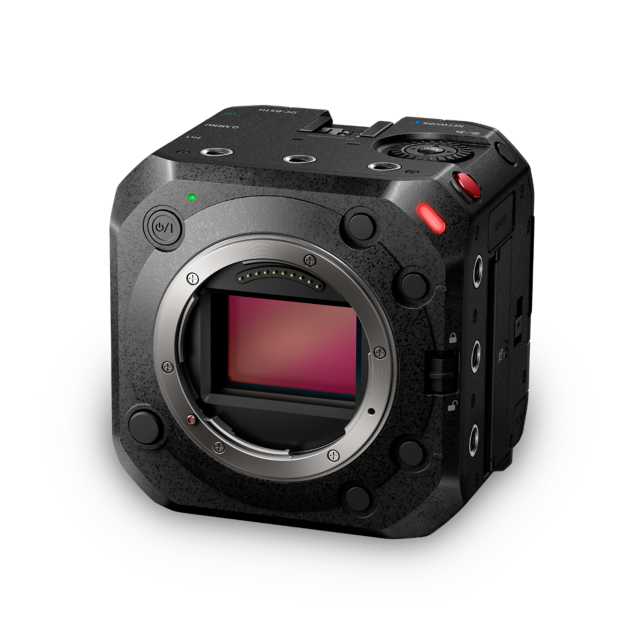

LUMIX dėžutės formos kamera DC-BS1H
DC-BS1H
Išlaisvinkite savo kūrybingumą
Kompaktiško korpuso, viso kadro dėžutės formos neveidrodinė kino ir tiesioginių transliacijų kamera, su 6K 24p / 5.9K 30p 10 bitų neribotu vaizdo įrašymu.
Sužinokite daugiau apie produktus, technologijas, gudrybes ir patarimus „LUMIX“ akademijoje.
DC-BS1H
Funkcijos

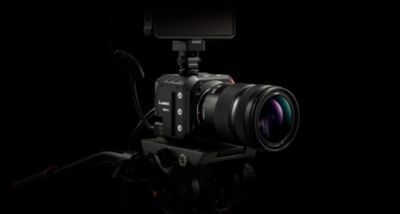

Dėžutės formos viso kadro kino ir tiesioginių transliacijų kamera
Viso kadro jutiklis ir 6K 24p vaizdo įrašymo funkcijos sutalpintos kompaktiškame dėžutės formos korpuse, kad galėtumėte transliuoti tiesiogiai, valdyti kelias kameras ir filmuoti naudodami gimbalą arba droną. Įrenginys, kuris atnaujins filmavimo procesą.
24,2 MP viso kadro jutiklis su dvigubo vidinio ISO technologija
24,2 megapikselių viso kadro CMOS jutiklis užtikrina didelį jautrumą ir aukščiausią vaizdo kokybę tiek fotografuojant, tiek filmuojant. Dvigubo vidinio ISO technologija ištobulina filmavimą.
6K vaizdo įrašymas ir keli įrašymo režimai
6K 24p 4:2:0 10 bitų (3:2) ir 5,9K 30p/25p/24p 4:2:0 10 bitų, taip pat C4K/4K 60p/50p* 4:2:0 10 bitų, C4K/4K 30p/25p/24p 4:2:2 10 bitų ir anamorfinio 4K įrašymo režimai. Platus fiksavimo režimų pasirinkimas patenkins įvairiausius profesionalių vaizdo įrašų kūrėjų poreikius.
* Naudojant S35mm ir PIXEL/PIXEL nustatymus.
Šilumos išsklaidymo valdymas = neribotas filmavimas
LUMIX BS1H suteikia galimybę filmuoti neribotai bet kuriuo režimu. Kylančią kameros temperatūrą gali sumažinti ventiliatorius, kurį galima naudoti neribotą laiką, kad temperatūra būtų išlaikyta nustatytame darbiniame diapazone.
Lankstus išplečiamumas naudojant laidinį LAN ryšį
• Nuotolinis valdymas naudojant „LUMIX Tether for Multicam“ funkciją per eterneto kabelį.
• eternetas / „PoE+“ palaikanti kamera
• IP tiesioginis transliavimas naudojant kompiuterį (RTP / RTSP protokolą)
• SDI / HDMI išvestis vienu metu
• „Genlock IN“ ir „Timecode IN/OUT“
• eternetas / „PoE+“ palaikanti kamera
• IP tiesioginis transliavimas naudojant kompiuterį (RTP / RTSP protokolą)
• SDI / HDMI išvestis vienu metu
• „Genlock IN“ ir „Timecode IN/OUT“
HDMI tiesioginė išvestis profesionaliai filmų kūrybai
RAW vaizdo duomenų išvestis
LUMIX BS1H įgalina maks. 29,97P 5,9K (5888x3312, 16:9) / 59,94p 4K (4128x2176, 17:9) išvestį ir anamorfinius 3,5K (3536x2656, 4:3) 12 bitų RAW vaizdo duomenis per HDMI, kad juos būtų galima išsaugoti kaip „Apple ProRes RAW“ „Atomos Ninja V 4K HDR“ monitoriuje ir įrašymo įrenginyje.* „Blackmagic“ RAW galima įrašyti ir „Video Assist 12G HDR“.**
* [Apple ProRes RAW] ･Pasirenkamas įrašymo režimas priklauso nuo „Atomos Ninja V“ aparatinės programinės įrangos versijos. ･Informaciją apie atitinkamą „Atomos Ninja V“ aparatinės programinės įrangos versiją žiūrėkite „Atomos“ interneto svetainėje. ･Norint redaguoti RAW vaizdo įrašą, užfiksuotą naudojant „NINJA V“, reikalinga programinė įranga, palaikanti „Apple ProRes RAW“. Taikykite LUT („Look up table“) iš toliau nurodytos klientų palaikymo svetainės, kad išgautumėte tokį patį spalvų perėjimą kaip ir „V-Log“ / „V-Gamut“ https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ ･Priklausomai nuo situacijos, gali būti prieinamos ne visos funkcijos. **[Blackmagic RAW] ･Pasirenkamas įrašymo režimas priklauso nuo „Blackmagic Video Assist 12G HDR“ aparatinės programinės įrangos versijos. ･Informaciją apie atitinkamą „Blackmagic Video Assist 12G HDR“ aparatinės programinės įrangos versiją žiūrėkite „Blackmagic Design“ svetainėje. ･Norint atkurti ir redaguoti „Blackmagic“ RAW duomenis, reikalinga „DaVinci Resolve“ arba „DaVinci Resolve Studio“ programa. „DaVinci Resolve Studio“ reikalinga pristatant projektus, kuriuose naudojami didesnės nei 3840 x 2160 raiškos „Blackmagic“ RAW duomenys. Priklausomai nuo situacijos, gali būti prieinamos ne visos funkcijos.
Vienu metu palaikomas vidinis / išorinis įrašymas
Vienu metu palaikomas 6K 24p 4:2:0 10 bitų (3:2) / 5,9K 30p/25p/24p 4:2:0 10 bitų (16:9) vidinis įrašymas ir 4K 4:2:2 10 bitų HDMI tiesioginės išvesties išorinis įrašymas.
･HDMI, HDMI logotipas ir „High-Definition Multimedia Interface“ yra „HDMI Licensing LLC“ prekių ženklai arba registruotieji prekių ženklai Jungtinėse Valstijose ir kitose šalyse.
Gaukite idėjų
Specifikacijos
Dydis ir svoris
- Aukštis
- 93.0mm
- Plotis
- 93.0mm
- Gylis
- 78.8mm
- Svoris
- 585g
Visos reikšmės apytikslės. Tik korpuso svoris. Į matmenis neįtraukti išsikišimai.
L-Mount- 24.2 Megapixels
- 4K Video Recording Capability
- 6K 24p video in 3:2 aspect ratios
- 14+ stops V-Log
- HDMI Output and SDI Output
- Genlock IN and Timecode IN/OUT
- Ethernet and PoE+ Compatible
- Live Streaming
- Wi-Fi
- Bluetooth
- HEVC Advance
24,2 MP viso kadro CMOS jutiklis su dvigubo savojo ISO technologija
6K/24p 3:2 10 bitų vaizdo įrašas, C4K/4K 60p/50p 10 bitų vaizdo įrašas ir neribotas įrašymo laikas
HDMI RAW vaizdo duomenų išvestis – „Apple ProRes“ RAW ir „Blackmagic“ RAW
Palaiko eternetą / PoE+ (Atitinka IEEE802.3at.)
TYPE
-
Type
-
Digital Single Lens Mirrorless camera
-
-
Lens mount
-
L-Mount
-
-
Recording media
-
SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
-
IMAGE SENSOR
-
Type
-
35mm full-frame (35.6mm x 23.8mm) CMOS sensor
-
-
Camera effective pixels / Total pixels
-
24.20 megapixels / 25.28 megapixels
-
-
AR (Anti Reflection) coating
-
Yes
-
-
Aspect ratio / Color filter
-
3:2 / Primary color filter
-
-
Dust reduction system
-
-
-
LATITUDE
-
Latitude
-
14+ stops (V-Log)
-
STILL IMAGE
-
Recording file format
-
JPEG (DCF, Exif 2.31) *Tethered photo shooting with LUMIX Tether for Multicam software
-
-
Aspect ratio
-
3:2
-
-
File size (Pixels)
-
When using full-frame lenses: 6000x4000(L) / 4272x2848(M) / 3024x2016(S)
When using APS-C/Super 35mm lenses: 3888x2592(L) / 2784x1856(M) / 1968x1312(S)
-
-
Image quality
-
Fine / Standard
-
-
Color space
-
sRGB
-
-
Burst shooting
-
-
-
MOTION PICTURE
-
Recording file format
-
MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
-
-
System frequency
-
59.94Hz / 50.00Hz / 24.00Hz
-
-
MOV (*2) (*3)
-
59.94Hz FULL
-
[6K] 5952x3968 (3:2), 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[5.4K] 5376x3584 (3:2), 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[5.9K] 5888x3312 (16:9), 29.97p, 200Mbps (4:2:0 10-bit LongGOP)(H.265/HEVC, LPCM, High-Res Audio) (*1)
[5.9K] 5888x3312 (16:9), 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[C4K] 4096x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[4K] 3840x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[4K] 3840x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 23.98p,100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[FHD] 1920x1080, 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 59.94p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[FHD] 1920x1080, 59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 59.94i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[FHD] 1920x1080, 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
-
-
59.94Hz S35mm / PIXEL/PIXEL
-
[C4K] 4096x2160, 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[C4K] 4096x2160, 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[C4K] 4096x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[4K] 3840x2160, 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[4K] 3840x2160, 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[4K] 3840x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[Anamorphic 4K] 3328x2496 (4:3), 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[Anamorphic 4K] 3328x2496 (4:3), 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[Anamorphic 4K] 3328x2496 (4:3), 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[Anamorphic 4K] 3328x2496 (4:3), 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[Anamorphic 4K] 3328x2496 (4:3), 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[Anamorphic 4K] 3328x2496 (4:3), 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[Anamorphic 4K] 3328x2496 (4:3), 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[FHD] 1920x1080, 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
*When S35mm is selected. HLG is selectable.
[FHD] 1920x1080, 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 59.94p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[FHD] 1920x1080, 59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 59.94i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[FHD] 1920x1080, 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
-
-
50.00Hz FULL
-
[5.4K] 5376x3584 (3:2), 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[5.9K] 5888x3312 (16:9), 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[4K] 3840x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[FHD] 1920x1080, 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 50.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[FHD] 1920x1080, 50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 50.00i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
-
-
50.00Hz S35mm / PIXEL/PIXEL
-
[C4K] 4096x2160, 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[C4K] 4096x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[4K] 3840x2160, 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[4K] 3840x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[Anamorphic 4K] 3328x2496 (4:3), 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[Anamorphic 4K] 3328x2496 (4:3), 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[Anamorphic 4K] 3328x2496 (4:3), 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[Anamorphic 4K] 3328x2496 (4:3), 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[Anamorphic 4K] 3328x2496 (4:3), 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[FHD] 1920x1080, 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
*When S35mm is selected. HLG is selectable.
[FHD] 1920x1080, 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 50.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[FHD] 1920x1080, 50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 50.00i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
-
-
24.00Hz FULL
-
[6K] 5952x3968 (3:2), 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[5.9K] 5888x3312 (16:9), 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[4K] 3840x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[FHD] 1920x1080, 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
-
-
24.00Hz S35mm / PIXEL/PIXEL
-
[C4K] 4096x2160, 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[C4K] 4096x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[4K] 3840x2160, 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[4K] 3840x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[Anamorphic 4K] 3328x2496 (4:3), 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[Anamorphic 4K] 3328x2496 (4:3), 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[Anamorphic 4K] 3328x2496 (4:3), 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[Anamorphic 4K] 3328x2496 (4:3), 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
[FHD] 1920x1080, 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
[FHD] 1920x1080, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
-
-
-
MP4 (*3)
-
59.94Hz FULL
-
[4K] 3840x2160, 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
[4K] 3840x2160, 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
[4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[4K] 3840x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080, 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080, 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080, 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
59.94Hz S35mm / PIXEL/PIXEL
-
[4K] 3840x2160, 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
[4K] 3840x2160, 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
[4K] 3840x2160, 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
[4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[4K] 3840x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080, 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080, 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080, 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
50.00Hz FULL
-
[4K] 3840x2160, 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
[4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080, 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080, 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
50.00Hz S35mm / PIXEL/PIXEL
-
[4K] 3840x2160, 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
[4K] 3840x2160, 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
[4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080, 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080, 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
24.00Hz
-
-
-
-
-
Variable frame rate, MOV (*3)
-
59.94Hz FULL
-
[FHD] 1920x1080, 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
[FHD] 1920x1080, 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
[FHD] 1920x1080, 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
-
-
59.94Hz S35mm
-
[C4K] 4096x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[C4K] 4096x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[Anamorphic 4K] 3328x2496 (4:3), 29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[Anamorphic 4K] 3328x2496 (4:3), 23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[FHD] 1920x1080, 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
[FHD] 1920x1080, 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
[FHD] 1920x1080, 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
-
-
59.94Hz PIXEL/PIXEL
-
[C4K] 4096x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[C4K] 4096x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[Anamorphic 4K] 3328x2496 (4:3), 29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[Anamorphic 4K] 3328x2496 (4:3), 23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[FHD] 1920x1080, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[FHD] 1920x1080, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-
-
50.00Hz FULL
-
[FHD] 1920x1080, 50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
[FHD] 1920x1080, 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
-
-
50.00Hz S35mm
-
[C4K] 4096x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[Anamorphic 4K] 3328x2496 (4:3), 25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[FHD] 1920x1080, 50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
[FHD] 1920x1080, 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
-
-
50.00Hz PIXEL/PIXEL
-
[C4K] 4096x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[Anamorphic 4K] 3328x2496 (4:3), 25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[FHD] 1920x1080, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-
-
24.00Hz FULL
-
[FHD] 1920x1080, 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
-
-
24.00Hz S35mm
-
[C4K] 4096x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[Anamorphic 4K] 3328x2496 (4:3), 24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[FHD] 1920x1080, 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
*Angle of view narrows if you select a frame rate with a number of frames 151 or more.
-
-
24.00Hz PIXEL/PIXEL
-
[C4K] 4096x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[Anamorphic 4K] 3328x2496 (4:3), 24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[FHD] 1920x1080, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
-
-
HDMI RAW DATA OUTPUT
-
Compatible external devices
-
ATOMOS Ninja V 4K HDR Monitor-Recorder
*Selectable recording mode depends on the firmware version of Atomos Ninja V.
*Please refer to the Atomos website for the information on the corresponding firmware version of Atomos Ninja V.
*Software that supports Apple ProRes RAW is required to edit RAW video recorded with NINJA V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut
https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
*All functions may not be available depending on the situation.
Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR
*Selectable recording mode depends on the firmware version of Blackmagic Video Assist 12G HDR.
*Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR.
*DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160.
*All functions may not be available depending on the situation.
-
-
Rec quality
-
59.94Hz FULL
-
[5.9K] 5888x3312 (16:9), 29.97p, 12-bit (LPCM)
[5.9K] 5888x3312 (16:9), 23.98p, 12-bit (LPCM)
-
-
59.94Hz S35mm
-
[4K] 4128x2176 (17:9), 59.94p, 12-bit (LPCM)
[4K] 4128x2176 (17:9), 29.97p, 12-bit (LPCM)
[4K] 4128x2176 (17:9), 23.98p, 12-bit (LPCM)
[Anamorphic 3.5K] 3536x2656 (4:3), 29.97p, 12-bit (LPCM)
[Anamorphic 3.5K] 3536x2656 (4:3), 23.98p, 12-bit (LPCM)
-
-
50.00Hz FULL
-
[5.9K] 5888x3312 (16:9), 25.00p, 12-bit (LPCM)
-
-
50.00Hz S35mm
-
[4K] 4128x2176 (17:9), 50.00p, 12-bit (LPCM)
[4K] 4128x2176 (17:9), 25.00p, 12-bit (LPCM)
[Anamorphic 3.5K] 3536x2656 (4:3), 50.00p, 12-bit (LPCM)
[Anamorphic 3.5K] 3536x2656 (4:3), 25.00p, 12-bit (LPCM)
-
-
-
Audio format
-
LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*) *High-res audio is selectable only when using the DMW-XLR1 (sold separately).
-
IP STREAMING
-
Protocol
-
RTP / RTSP
-
-
Streaming quality
-
59.94Hz
-
[4K] 3840x2160, 59.94p, 50Mbps / 25Mbps (H.265)
[4K] 3840x2160, 59.94p, 50Mbps / 25Mbps (H.264)
[4K] 3840x2160, 29.97p, 25Mbps / 12.5Mbps (H.265)
[4K] 3840x2160, 29.97p, 25Mbps / 12.5Mbps (H.264)
[FHD] 1920x1080, 59.94p, 20Mbps / 16Mbps (H.265)
[FHD] 1920x1080, 59.94p, 16Mbps / 8Mbps (H.264)
[FHD] 1920x1080, 29.97p, 12Mbps / 6Mbps (H.265)
[FHD] 1920x1080, 29.97p, 6Mbps / 3Mbps (H.264)
[HD] 1280x720, 59.94p, 6Mbps (H.264)
[HD] 1280x720, 29.97p, 4Mbps (H.264)
-
-
50.00Hz
-
[4K] 3840x2160, 50.00p, 50Mbps / 25Mbps (H.265)
[4K] 3840x2160, 50.00p, 50Mbps / 25Mbps (H.264)
[4K] 3840x2160, 25.00p, 25Mbps / 12.5Mbps (H.265)
[4K] 3840x2160, 25.00p, 25Mbps / 12.5Mbps (H.264)
[FHD] 1920x1080, 50.00p, 20Mbps / 16Mbps (H.265)
[FHD] 1920x1080, 50.00p, 16Mbps / 8Mbps (H.264)
[FHD] 1920x1080, 25.00p, 12Mbps / 6Mbps (H.265)
[FHD] 1920x1080, 25.00p, 6Mbps / 3Mbps (H.264)
[HD] 1280x720, 50.00p, 6Mbps (H.264)
[HD] 1280x720, 25.00p, 4Mbps (H.264)
-
-
-
RTSP port
-
Change (Up to 65535) / Default (554)
-
MONITOR
-
Viewfinder
-
-
-
-
Rear monitor
-
-
-
-
Status LCD
-
-
-
FOCUS
-
Type
-
Contrast AF system
-
-
DFD technology
-
Yes
-
-
Focus mode
-
AF / MF
-
-
AF detective range
-
EV -6 - 20 (F1.4, ISO100 equivalent, AF)
-
-
AF mode
-
Motion picture: Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Oval) / 1-Area
Still image: Auto Detection (Face, Eye, Body, Animal) / 225-Area /1-Area *Tethered photo shooting with LUMIX Tether for Multicam software
-
-
AF custom setting (Video)
-
AF Speed, AF Sensitivity
-
-
AF lock
-
Set the Fn button in custom menu to AF lock
-
-
Focus ring control
-
Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) *When a compatible lens is attached.
-
-
Others
-
AF-ON, Continuous AF, AF+MF, MF Assist, MF Guide, 1-Area AF Moving Speed, Focus Ring Lock, Focus Peaking, Lens Focus Resume
-
EXPOSURE CONTROL
-
Light metering system
-
1,728-zone multi-pattern sensing system
-
-
Light metering mode
-
Multiple / Center Weighted / Spot / Highlight Weighted
-
-
Metering range
-
EV0-18 (F2.0 lens, ISO100 equivalent)
-
-
Exposure mode
-
Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
-
-
Exposure compensation
-
Motion picture: 1/3 EV step ±3EV
Still image: 1/3 EV step ±5EV *Tethered photo shooting with LUMIX Tether for Multicam software
-
-
ISO sensitivity (Standard output sensitivity)
-
Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO
-
-
Dual Native ISO
-
[Normal]
Native ISO: 100, 640
Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
Low: Auto / 50* / 100-800 *Extended ISO
High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO
[V-Log]
Native ISO: 640, 4000
Auto: Auto / 320* / 640-51200 *Extended ISO
Low: Auto / 320* / 640-5000 *Extended ISO
High: Auto / 2000* / 4000-51200 *Extended ISO
[HLG]
Native ISO: 400, 2500
Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
Low: Auto / 400-3200
High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO
[Cinelike D2 / Cinelike V2]
Native ISO: 200, 1250
Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
Low: Auto /100* / 200-1600 *Extended ISO
High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO
-
-
AE lock
-
Set the Fn button in custom menu to AE lock
-
IMAGE STABILIZATION SYSTEM
-
Body I.S.
-
-
-
-
Boost I.S. (Video)
-
Yes *When a compatible lens equipped with O.I.S. is attached.
-
WHITE BALANCE
-
White balance
-
AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
-
-
White balance adjustment
-
Blue/Amber bias, Magenta/Green bias
-
-
Color temperature setting
-
2500-10000K in 100K
-
SHUTTER
-
Type
-
-
-
-
Shutter speed
-
Motion picture: 1/16,000 - 1/2
Still image: 1/8,000 - 1 *Tethered photo shooting with LUMIX Tether for Multicam software
-
PHOTO STYLE / FILTER
-
Photo style
-
Standard / Vivid / Natural / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Like2100 (HLG) / My Photo Style 1-10
Picture adjustment: Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Sharpness / Noise Reduction / Dual native ISO / ISO / WB *Adjustable settings vary depending on the Photo Style mode.
-
-
Filter
-
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Fantasy / One Point Color
-
OTHER FUNCTIONS
-
Vertical position information
-
ON / OFF
-
-
SS/Gain operation
-
Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
-
-
Luminance level
-
8-bit: 0-255 / 16-235 / 16-255
10-bit: 0‒1023 / 64‒940 / 64‒1023
-
-
Synchro scan
-
Yes
-
-
Master pedestal level
-
31 steps
-
-
Knee control
-
Yes (in Like709 mode)
-
-
Level Gauge
-
Yes
-
-
V-Log view assist
-
Rec / Playback: HDMI / SDI
-
-
HLG view assist
-
Rec / Playback: HDMI (AUTO / MODE1 / MODE2 / OFF) / SDI (MODE1 / MODE2 / OFF)
-
-
Anamorphic desqueeze display
-
2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Rec: SDI
Playback: HDMI / SDI
-
-
Color bars / 1kHz test tone
-
Yes (SMPTE / EBU / ARIB) / Yes
-
-
Other functions
-
Red REC Frame Indicator, Streaming Blue Frame Indicator
-
-
Function button
-
REC
-
Exposure Mode / Aperture Value / Shutter Speed / Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Metering Mode / i.Dynamic Range / Filter Effect / One Push AE / Synchro Scan / Focus Mode / AF Mode / AF Custom Setting (Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Rec File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / HDMI RAW Data Output / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Display Information / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Zebra Pattern / LUT View Assist (HDMI) / LUT View Assist (SDI) / LUT Select / HLG View Assist (HDMI) / HLG View Assist (SDI) / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / Destination Card Slot / LAN/Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
-
-
PLAY
-
Anamorphic Desqueeze Display / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / Video Record / Display Information / Card Slot Change / LAN/Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / LUT View Assist (HDMI) / LUT View Assist (SDI) / HLG View Assist (HDMI) / HLG View Assist (SDI) / No Setting / Off (Disable Press and Hold) / Restore to Default
-
-
-
Operation lock
-
Yes with Operation Lock Switch
-
INTERFACE
-
USB
-
SuperSpeed USB 3.1 Gen1 Type-C
-
-
DC IN
-
DC 12V (11.4-12.6V), EIAJ Type4
-
-
HDMI (*4)
-
HDMI TypeA
Audio: Stereo
Monitor-through
4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
Down Convert: Auto / 4K/30p/25p / 1080p / 1080i / OFF
Playback
59.94Hz: Auto / C4K/59.94p / C4K/29.97p / C4K/23.98p / 4K/59.94p / 4K/29.97p / 4K/23.98p / 1080/59.94p / 1080/29.97p / 1080/23.98p / 1080/59.94i / 720/59.94p / 480/59.94p
50.00Hz: Auto / C4K/50.00p / C4K/25.00p / 4K/50.00p / 4K/25.00p / 1080/50.00p / 1080/25.00p / 1080/50.00i / 720/50.00p / 576/50.00p
24.00Hz: Auto / C4K/24.00p / 4K/24.00p / 1080/24.00p
-
-
SDI
-
BNC Terminal, 0.8V [p-p], 75Ω, 3G-SDI Level-A / HD-SDI
Audio: Stereo, SDI Sound Output Gain Adj.: 0dB / -6dB / -8dB
Monitor-through
4:2:2 10bit *The bit accuracy is 8 bits when the 8-bit recording mode is selected.
Playback
59.94Hz: 1080/59.94p LEVEL-A / 1080/29.97p / 1080/23.98p / 1080/59.94i / 1080/29.97PsF / 1080/23.98PsF / 720/59.94p
50.00Hz: 1080/50.00p LEVEL-A / 1080/25.00p / 1080/50.00i / 1080/25.00PsF / 720/50.00p
24.00Hz: 1080/24.00PsF
-
-
Ethernet
-
Remote Control: LAN Terminal (RJ-45)
Power Supply: PoE+ (IEEE802.3at compliant)
*Use an IEC60950-1 or IEC62368-1 compliant PoE+ (IEEE802.3at compliant) hub or power supplying device.
-
-
Remote input
-
φ2.5mm
-
-
Microphone
-
Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
-
-
Speaker
-
-
-
-
External microphone / external audio device input
-
φ3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE is selectable.
Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
-
-
XLR microphone
-
Yes with DMW-XLR1 (sold separately)
-
-
Headphone output
-
φ3.5mm
-
-
SD card slot
-
Slot 1, Slot 2
-
-
TC IN/OUT
-
Count up
-
Rec Run / Free Run
-
-
Time code mode
-
Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
-
-
HDMI time code output
-
ON / OFF
-
-
SDI time code output
-
ON / OFF
-
-
External TC setting
-
TC Synchronization / TC Output Reference
-
-
-
Genlock IN
-
Genlock IN
-
ON / OFF
-
-
Horizontal phase synchronization
-
-206 - +49
-
-
-
Fan
-
Auto1 / Auto2 / Normal / Slow
-
-
Lamp
-
Tally Lamp (front/rear) / Card Access Lamp / Power LED / Network LED
-
-
Flash
-
-
-
WIRELESS
-
Wi-Fi
-
2.4GHz (STA/AP), IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (1-11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode
-
-
Bluetooth
-
Bluetooth® v4.2 (Bluetooth Low Energy (BLE))
-
POWER
-
Direct power supply
-
AC Adaptor (12V, 3A) (bundled)
Li-ion Battery Pack (7.28V) (sold separately)
PoE+ (IEEE802.3at compliant) (sold separately)
-
-
Battery
-
Li-ion Battery Pack AG-VBR59 (7.28V, 5900mAh, 43Wh) (sold separately)
Li-ion Battery Pack AG-VBR89 (7.28V, 8850mAh, 65Wh) (sold separately)
Li-ion Battery Pack AG-VBR118 (7.28V, 11800mAh, 86Wh) (sold separately)
-
-
Continuous recordable time (Motion picture) (*3)
-
MP4 [4K/60p]: Approx. 230 min (S35mm), MP4 [FHD/60p]: Approx. 300 min (FULL) *When using S-R24105 and AG-VBR59 (sold separately). When the battery is fully charged.
MP4 [4K/60p]: Approx. 360 min (S35mm), MP4 [FHD/60p]: Approx. 470 min (FULL) *When using S-R24105 and AG-VBR89 (sold separately). When the battery is fully charged.
MP4 [4K/60p]: Approx. 480 min (S35mm), MP4 [FHD/60p]: Approx. 630 min (FULL) *When using S-R24105 and AG-VBR118 (sold separately). When the battery is fully charged.
-
-
Actual recordable time (Motion picture) (*3)
-
MP4 [4K/60p]: Approx. 115 min (S35mm), MP4 [FHD/60p]: Approx. 150 min (FULL) *When using S-R24105 and AG-VBR59 (sold separately). When the battery is fully charged.
MP4 [4K/60p]: Approx. 180 min (S35mm), MP4 [FHD/60p]: Approx. 235 min (FULL) *When using S-R24105 and AG-VBR89 (sold separately). When the battery is fully charged.
MP4 [4K/60p]: Approx. 240 min (S35mm), MP4 [FHD/60p]: Approx. 315 min (FULL) *When using S-R24105 and AG-VBR118 (sold separately). When the battery is fully charged.
-
DIMENSIONS / WEIGHT
-
Dimensions (W x H x D)
-
Approx. 93.0 x 93.0 x 78.8 mm / 3.66 x 3.66 x 3.1 inch (excluding protrusions)
-
-
Weight
-
Approx. 585g / 1.29 lb (Body only)
-
OPERATING ENVIRONMENT
-
Operating temperature (*5)
-
-10℃ to 40℃ (14˚F to 104˚F)
-
-
Operating humidity
-
10%RH to 80％RH
-
STANDARD ACCESSORIES
-
Software
-
LUMIX Tether for Multicam
･This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
-
-
Standard accessories
-
AC Adaptor, AC Cable, Cable Lock Band, Body Cap, Hot Shoe Cover, AUDIO Terminal Cover, DC IN Terminal Cover, BNC Terminal Cover, HDMI Terminal Cover, REMOTE Terminal Cover
･The DC-BS1H Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.
-
NOTE
-
(*1) HLG is selectable.
(*2) High-res audio is selectable only when using the DMW-XLR1 (sold separately).
(*3) About motion picture recording
- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [MP4(under 28Mbps)].
- Use a card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K] or [MOV].
(SD speed class is the speed standard regarding continuous writing.)
- Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording.
- MP4 motion pictures with [MP4] in [4K]:
- When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
- When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- MP4 motion pictures with [MP4] in [FHD]:
- You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.
The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player.
It may cause problems such as freezing when played on these devices.
- When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
(*4) For [6K] [5.9K] [5.4K] [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".
(*5) The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.
Priedai
Objektyvai
Baterijos / baterijų įkroviklis
AG-VBR59
Akumuliatorius
AG-VBR89
Akumuliatorius
AG-VBR118
Akumuliatorius
AG-BRD50
Akumuliatoriaus įkroviklis
XLR mikrofono adapteris / mikrofonai
Filmavimo lempa
VW-LED1
LED filmavimo lempa
Stovo adapteris
DMW-TA1
Stovo adapteris
