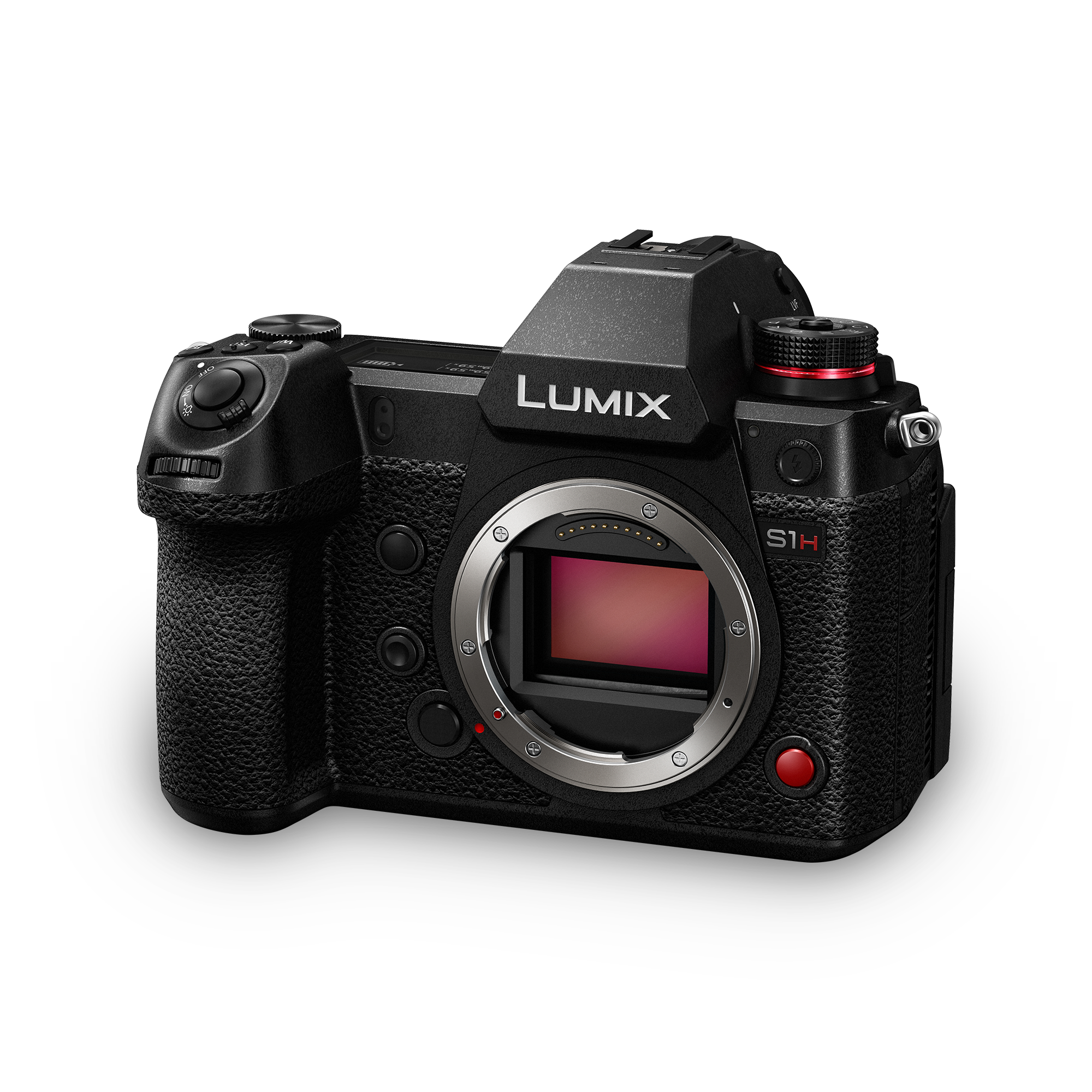

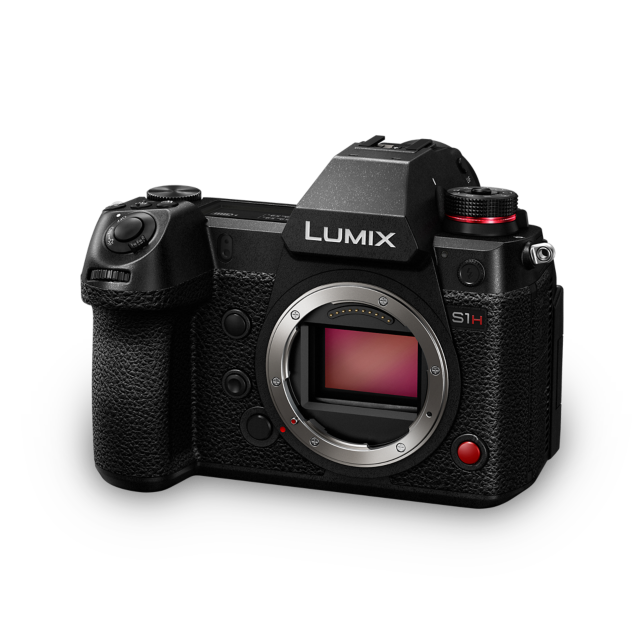

LUMIX S kaamera DC-S1H

DC-S1H

Kinemaatilised näitajad, piiritu loovus.

14+ stopiga dünaamikadiapasooniga V-Log/V-Gamut, 6K täiskaader jäädvustus, 10-bitine Cinema 4K/4K 60p/50p salvestus ja piiramatu salvestusaeg. LUMIX S1H on uus täiskaadriline hübriidkaamera, mis pakub kinokvaliteediga videosalvestust.

Püsivara uuendus V2.3

DC-S1H

Funktsioonid

Vastselt loodud Dual Native ISO-tehnoloogiaga täiskaadriline andur

LUMIX S1H värskelt loodud 24,2-megapikslise täiskaadrilise CMOS-anduri juure kasutatakse tehnoloogiat Dual Native ISO. Pildiandur saab kasutada kahe alusega ISO-seadistust, mis annab tulemuseks väiksema müra ja suurepärase pildikvaliteedi madalast kuni kõrge tundlikkuseni. See funktsioon koos Venus Engine'iga annab kõrge tundlikkuse juures minimaalse müra ja kaadri tumedate alade kauni esituse jaoks maksimaalselt ISO 51200 / Laiendatud ISO 204800. Lisaks vähendab madalpääsufilter efektiivselt muareemustreid. LUMIX S1H on alati valmis, kui vajatakse profitasemel nõrgas valguses jäädvustamist.

Lai valik igat tüüpi jäädvustamist toetavaid salvestusvorminguid

Suure valiku võimalike salvestusrežiimidega vastab LUMIX S1H kõigi valdkondade vajadustele, alates kinost kuni telesaadeteni. Lisaks C4K/4K 60p/50p* 4:2:0 10-biti ja C4K/4K 30p/25p/24p 4:2:2 10-bitile, pakub kaamera nüüd ka 6K/24p 4:2:0 10-bitti 3:2-s ja 5.9K 30p/25p/24p 4:2:0 10-bitti 16:9-s. Samuti on olemas 4K anamorfrežiim. Ülikõrge pildikvaliteet, paindlikkus ja väljendusrikkus – LUMIX S1H on tänapäeva kõrgete nõudmistega võtete jaoks valmis.

* Seadistustes Super 35 mm ja PIXEL/PIXEL.

Lai valik igat tüüpi jäädvustamist toetavaid salvestusvorminguid

4:2:2 10-bitine sisemine salvestamine / HDMI-väljund

Kaamera siseselt on salvestatav erakordselt rikak värviprofiiliga C4K/4K 30p/25p/24p 4:2:2 10-bitine video. 10-bitise jäädvustamise valimisel annab kaamera 4:2:2 10-bitise HDMI-väljundi, mis muudab võimalikuks välise salvestajaga kõrge kvaliteediga kujutiste jäädvustamise. 4:2:2 10-bitine vorming sisaldab 4:2:0 8-bitisest vormingust umbes 128 korda rohkem teavet ja suudab esitada üle 1 miljardi värvitooni. Tohutu värviandmete hulk on väga väärtuslik tootmisjärgses töötlemises, kuna võimaldab värve dünaamiliselt ja radikaalselt kohandada ning isegi muuta päevastseenid ööstseenideks. Täiskaader kaamera kõnekas võimsus viib 4K video täiesti uutesse kohtadesse.

* HDMI, HDMI Logo ja High-Definition Multimedia Interface on ettevõtte HDMI Licensing LLC kaubamärgid ja registreeritud kaubamärgid Ameerika Ühendriikides ja teistes riikides.

4:2:2 10-bitine sisemine salvestamine / HDMI-väljund

14+ stopiga dünaamikadiapasooniga V-Log/V-Gamut

S1H pakub erinevaid loovvõimalusi, nagu 14+ stopiga dünaamikadiapasoon ja väga lai värvispekter. Eelinstallitud V-Log ja V-Gamut tagavad, et LUMIX S1H videoid saab tõrgeteta toimetada koos erinevate teiste kaamerata, sh VariCamiga jäädvustatud videotega.

LUMIX S1H pakub dünaamikadiapasooni 14+ stoppi, mis vastab HDR-i PQ-nõudele. V-Gamut katab kogu HDR-i värvispektri, andes kasutajatele alati ja kõikjal juurdepääsu HDR-jäädvustamisele. Täiendava käepärase nüansina on kaamera ekraanile kuvatud kasutatud LUT, andes kõikjal ja alati reaalajas tagasisidet lõpliku tulemi kohta.

Lõpptulemuseks on veelgi rahuldavamad värvid ja loovkogemus.

RAW videoandmete väljund professionaalse filmiloome jaoks

Püsivara uuendus võimaldab väljutada üle HDMI maksimaalselt 29.97p 5.9K (5888x3312, 16:9) / 59.94p 4K (4128x2176, 17:9) ja anamorfset 3.5K (3536x2656, 4:3) 12-bit RAW-videoandmeid, et salvestada need Atomos Ninja V 4K HDR monitorsalvestil Apple ProRes RAW-na.* Blackmagic RAW-d on võimalik salvestada ka Video Assist 12G HDR-il.**

* Värskendage püsivara versioonile 2.1 või sellest uuemale versioonile.
** Värskendage püsivara versioonile 2.4 või sellest uuemale versioonile

RAW videoandmete väljund professionaalse filmiloome jaoks

14+ stopiga dünaamikadiapasooniga V-Log/V-Gamut

RAW videoandmete väljund professionaalse filmiloome jaoks

* Värskendage püsivara versioonile 2.1 või sellest uuemale versioonile.
** Värskendage püsivara versioonile 2.4 või sellest uuemale versioonile

14+ stopiga dünaamikadiapasooniga V-Log/V-Gamut

Esmakordselt täiskaadrilisele DSLM-kaamerale* paigaldatud ventilaator toetab piiramatu kestusega videosalvestust

Esimest korda täiskaadriliste digitaalsete ühe objektiiviga hübriidkaamerate puhul leiab LUMIX S1H-st ventilaatori. Ventilaator on osaks vastselt välja töötatud soojushajutuskonstruktsioonist, mis toetab piiranguteta videosalvestust. Tolmu- ja pritsmekindel ehitus,** vähe vibratsiooni, et pildistabiliseerimisüsteemile võimalikult vähe mõju avaldada, ja ülivaikne töötamine on veel rida omadusi, mis uut konstruktsiooni kirjeldavad.Ventilaatorit saab kasutada nelja erineva seadistusega.

* Täiskaadriliste digitaalsete ühe objektiiviga hübriidkaamerate hulgas seisuga 27. august 2019. ** Tolmu- ja pritsmekindlus ei taga kaitset kahjustuste eest kaamera otsese kokkupuutumise korral tolmu ja veega.

Esmakordselt täiskaadrilisele DSLM-kaamerale* paigaldatud ventilaator toetab piiramatu kestusega videosalvestust

Ainulaadne videoväljendus (VFR, HFR)

Alates baasfunktsioonidest kuni keerukate tehnoloogiateni – LUMIX S1H on loodud pakkuma erakordset ja mitmetahulist videovõimekust. Funktsioon VFR toetab nii kiiremalt kui ka aeglasemalt jäädvustamist. HFR-salvestamine sisaldab heli ja automaatteravustamist, võimaldades kasutajatel järelproduktsiooni käigus aegluubis videot luua.

* Tolmu- ja pritsmekindlus ei taga kaamera kaitset kahjustuste eest tolmu ja veega otsese kokkupuutumise korral.

kallutatav ja vabalt pööratav tagaekraan
TVäga erinevates ilmastikuoludes kasutamiseks sobiv tugev korpus

Vastselt väljatöötatud kallutatav ja vaba kaldenurgaga tagaekraan ühendab endas nii kallutatava ekraani kui ka kõikvõimalike nurkade alla kallutatava ekraani omadused. Ekraani vaba liikumist ei takista isegi kaameraga ühendatud HDMI- või USB-kaabel. Lisaks jagab suur oleku LCD optimeeritud teavet nii fotode kui videote kohta, tagades hõlpsa juurdepääsu ajakoodidele, heli tasememõõdikule jpm.

Magneesiumsulamist täisvaluraam on väga vastupidav ning selle tihendus kaitseb igat ühendust, skaalat ja nuppu. Kaamera on tervikuna tolmu- ja pritsmekindel* ning on kasutatav kuni -10 °C õhutemperatuuri juures.

* Tolmu- ja pritsmekindlus ei taga kaamera kaitset kahjustuste eest tolmu ja veega otsese kokkupuutumise korral.

kallutatav ja vabalt pööratav tagaekraan TVäga erinevates ilmastikuoludes kasutamiseks sobiv tugev korpus

Inspiratsioon

Tehnilised andmed

Suurus ja kaal

Kõrgus: 114.2mm

Laius: 151.0mm

Sügavus: 110.4mm

Kaal: 1164g

Kõik väärtused on ligikaudsed. Kaal koos SD-kaardi ja akuga. Ei sisalda objektiivi. Mõõtmed ei sisalda eenduvaid osi.

L-Mount
24,2 megapikslit
4K-video jäädvustamise võimekus
6K 24P video jäädvustamise võimekus
14+ stoppi V-Log
5-teljeline Dual I.S. 2 (pildistabilisaator)
5,76 miljoni piksline OLED reaalajas töötav pildinäidik
2,33 miljoni punktiga kallutatav ja vabalt pööratav ekraan
Oleku LCD
Pritsme-, tolmu- ja külmumiskindel
Wi-Fi
Bluetooth

V-Log/V-Gamut

14+ stopiga dünaamikadiapasoon

6K/24p 10-bit

videosalvestus (3:2)

C4K/4K 60p/50p 10-bit

videosalvestus

TYPE

Type
- Digital Single Lens Mirrorless
Recording media
- SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Lens mount
- L-Mount

IMAGE SENSOR

Type
- 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels
- 24.20 megapixels / 25.28 megapixels
Aspect ratio / Color filter
- 3:2 / Primary color filter
Dust reduction system
- Supersonic wave filter

LATITUDE

LATITUDE
- 14+ stops (V-Log)

STILL IMAGE

Recording file format
- Still image
  - JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)
- 6K PHOTO*** / 4K PHOTO***
  - 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
    4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
    Extracted still images: JPEG (DCF, Exif 2.31)
Aspect ratio
- Aspect ratio
  - 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
File size (Pixels)
- When using full-frame lenses, 3:2
  - 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* *High Resolution Mode. RAW file.
    5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) / 5984x4000(HLG PHOTO, Full-Res.) / 3232x2160(HLG PHOTO, 4K-Res.)
- When using full-frame lenses, 4:3
  - 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* *High Resolution Mode. RAW file.
    4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) / 5312x3984(HLG PHOTO, Full-Res.) / 2880x2160(HLG PHOTO, 4K-Res.)
- When using full-frame lenses, 16:9
  - 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* *High Resolution Mode. RAW file.
    3840x2160(4K PHOTO) / 5888x3312(HLG PHOTO, Full-Res.) / 3840x2160(HLG PHOTO, 4K-Res.)
- When using full-frame lenses, 1:1
  - 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* *High Resolution Mode. RAW file.
    2880x2880(4K PHOTO) / 4000x4000(HLG PHOTO, Full-Res.) / 2144x2144(HLG PHOTO, 4K-Res.)
- When using full-frame lenses, 65:24
  - 6000x2208(L)
- When using full-frame lenses, 2:1
  - 6000x3000(L)
- When using Super 35mm (APS-C) lenses, 3:2
  - 3888x2592(L) / 2784x1856(M) / 1968x1312(S) / 3504x2336(4K PHOTO)
- When using Super 35mm (APS-C) lenses, 4:3
  - 3536x2656(L) / 2560x1920(M) / 1840x1376(S) / 3328x2496(4K PHOTO)
- When using Super 35mm (APS-C) lenses, 16:9
  - 4064x2288(L) / 2816x1584(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
- When using Super 35mm (APS-C) lenses, 1:1
  - 2656x2656(L) / 1920x1920(M) / 1376x1376(S) / 2880x2880(4K PHOTO)
Image quality
- RAW / RAW+Fine / RAW+Standard / Fine / Standard
Color space
- sRGB, AdobeRGB

MOTION PICTURE

Recording file format
- MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
  MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
  AVCHD Progressive, AVCHD (Audio format: Dolby Audio (2ch))
System frequency
- 59.94Hz / 50.00Hz / 24.00Hz
MOV*** High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 59.94Hz Full-frame
  - [6K] 5952x3968 (3:2) 23.98p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [5.4K] 5376x3584 (3:2) 29.97p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [5.9K] 5888x3312 29.97p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [5.9K] 5888x3312 23.98p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [C4K] 4096x2160 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [C4K] 4096x2160 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [4K] 3840x2160 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [4K] 3840x2160 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 119.88p, 150Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 59.94i, 100Mbps (4:2:2 10-bit ALL-Intra)* / 50Mbps (4:2:2 10-bit LongGOP)* (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 47.95p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 59.94Hz Super 35mm / Pixel by Pixel
  - [C4K] 4096x2160 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [C4K] 4096x2160 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [C4K] 4096x2160 47.95p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [C4K] 4096x2160 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [C4K] 4096x2160 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [4K] 3840x2160 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [4K] 3840x2160 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [4K] 3840x2160 47.95p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [4K] 3840x2160 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [4K] 3840x2160 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [Anamorphic 4K] 3328x2496 (4:3) 47.95p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [Anamorphic 4K] 3328x2496 (4:3) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [Anamorphic 4K] 3328x2496 (4:3) 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 119.88p, 150Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *When Super 35mm is selected. HLG is selectable.
    [FHD] 1920x1080 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 59.94i, 100Mbps (4:2:2 10-bit ALL-Intra)* / 50Mbps (4:2:2 10-bit LongGOP)* (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 47.95p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 50.00Hz Full-frame
  - [5.4K] 5376x3584 (3:2) 25.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [5.9K] 5888x3312 25.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [C4K] 4096x2160 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [4K] 3840x2160 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 100.00p, 150Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 50.00i, 100Mbps (4:2:2 10-bit ALL-Intra)* / 50Mbps (4:2:2 10-bit LongGOP), (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 50.00Hz Super 35mm / Pixel by Pixel
  - [C4K] 4096x2160 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [C4K] 4096x2160 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [C4K] 4096x2160 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [4K] 3840x2160 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [4K] 3840x2160 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [4K] 3840x2160 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [Anamorphic 4K] 3328x2496 (4:3) 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [Anamorphic 4K] 3328x2496 (4:3) 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [Anamorphic 4K] 3328x2496 (4:3) 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 100.00p, 150Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *When Super 35mm is selected. HLG is selectable.
    [FHD] 1920x1080 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 50.00i, 100Mbps (4:2:2 10-bit ALL-Intra)* / 50Mbps (4:2:2 10-bit LongGOP)* (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 24.00Hz Full-frame
  - [6K] 5952x3968 (3:2) 24.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [5.9K] 5888x3312 24.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [C4K] 4096x2160 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [4K] 3840x2160 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 48.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 24.00Hz Super 35mm / Pixel by Pixel
  - [C4K] 4096x2160 48.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [C4K] 4096x2160 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [4K] 3840x2160 48.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [4K] 3840x2160 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [Anamorphic 4K] 3328x2496 (4:3) 48.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable
    [Anamorphic 4K] 3328x2496 (4:3) 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 48.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    [FHD] 1920x1080 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
MP4***
- 59.94Hz Full-frame
  - [4K] 3840x2160 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    [4K] 3840x2160 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    [4K] 3840x2160 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [4K] 3840x2160 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 59.94Hz Super 35mm / Pixel by Pixel
  - [4K] 3840x2160 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    [4K] 3840x2160 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    [4K] 3840x2160 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    [4K] 3840x2160 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [4K] 3840x2160 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 50.00Hz Full-frame
  - [4K] 3840x2160 25.00p, 72Mbps (4:2:0 10-bit LongGOP)(H.265/HEVC, AAC)
    [4K] 3840x2160 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 50.00Hz Super 35mm / Pixel by Pixel
  - [4K] 3840x2160 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    [4K] 3840x2160 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    [4K] 3840x2160 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 24.00Hz Full-frame / Super 35mm / Pixel by Pixel
  - -
AVCHD Progressive*** / AVCHD***
- 59.94Hz Full-frame / Super 35mm / Pixel by Pixel
  - [FHD] 1920x1080 59.94p (Sensor output is 59.94fps), 28Mbps (4:2:0 8-bit LongGOP) (Dolby)
    [FHD] 1920x1080 59.94i (Sensor output is 59.94fps), 17Mbps (4:2:0 8-bit LongGOP) (Dolby)
    [FHD] 1920x1080 59.94i (Sensor output is 29.97fps), 24Mbps (4:2:0 8-bit LongGOP) (Dolby)
    [FHD] 1920x1080 23.98p (Sensor output is 23.98fps), 24Mbps (4:2:0 8-bit LongGOP) (Dolby)
- 50.00Hz Full-frame / Super 35mm / Pixel by Pixel
  - [FHD] 1920x1080 50.00p (Sensor output is 50.00fps), 28Mbps (4:2:0 8-bit LongGOP) (Dolby)
    [FHD] 1920x1080 50.00i (Sensor output is 50.00fps), 17Mbps (4:2:0 8-bit LongGOP) (Dolby)
    [FHD] 1920x1080 50.00i (Sensor output is 25.00fps), 24Mbps (4:2:0 8-bit LongGOP) (Dolby)
- 24.00Hz Full-frame / Super 35mm / Pixel by Pixel
  - -
Continuous recordable time
- Continuous recordable time (Motion picture)***
  - AVCHD [FHD/60p]: Approx. 160 min (Full-frame), 140 min (Super 35mm), 150 min (Pixel by Pixel) *When using S-R24105. When the battery is fully charged.
    MP4 [4K/60p]: Approx. 120 min (Super 35mm, Pixel by Pixel) *When using S-R24105. When the battery is fully charged.
    MOV [C4K/24p/4:2:2 10-bit/ALL-Intra]: Approx. 130 min (Full-frame, Super 35mm, Pixel by Pixel) *When using S-R24105. When the battery is fully charged.
Actual recordable time
- Actual recordable time (Motion picture)***
  - AVCHD [FHD/60p]: Approx. 80 min (Full-frame), 70 min (Super 35mm), 75 min (Pixel by Pixel) *When using S-R24105. When the battery is fully charged.
    MP4 [4K/60p]: Approx. 60 min (Super 35mm, Pixel by Pixel) *When using S-R24105. When the battery is fully charged.
    MOV [C4K/24p/4:2:2 10-bit/ALL-Intra]: Approx. 65 min (Full-frame, Super 35mm, Pixel by Pixel) *When using S-R24105. When the battery is fully charged.

VARIABLE FRAME RATE

MOV***
- 59.94Hz Full-frame
  - [FHD] 1920x1080 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    [FHD] 1920x1080 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    [FHD] 1920x1080 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
- 59.94Hz Super 35mm
  - [C4K] 4096x2160 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [C4K] 4096x2160 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [4K] 3840x2160 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
    [4K] 3840x2160 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
    [Anamorphic 4K] 3328x2496 (4:3) 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [Anamorphic 4K] 3328x2496 (4:3) 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [FHD] 1920x1080 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    [FHD] 1920x1080 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    [FHD] 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
- 59.94Hz Pixel by Pixel
  - [C4K] 4096x2160 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [C4K] 4096x2160 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [4K] 3840x2160 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [4K] 3840x2160 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [Anamorphic 4K] 3328x2496 (4:3) 29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [Anamorphic 4K] 3328x2496 (4:3) 23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [FHD] 1920x1080 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [FHD] 1920x1080 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 50.00Hz Full-frame
  - [FHD] 1920x1080 50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    [FHD] 1920x1080 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
- 50.00Hz Super 35mm
  - [C4K] 4096x2160 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [4K] 3840x2160 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [Anamorphic 4K] 3328x2496 (4:3) 25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [FHD] 1920x108050.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    [FHD] 1920x1080 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
- 50.00Hz Pixel by Pixel
  - [C4K] 4096x2160 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [4K] 3840x2160 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [Anamorphic 4K] 3328x2496 (4:3) 25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [FHD] 1920x1080 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
- 24.00Hz Full-frame
  - [FHD] 1920x1080 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
- 24.00Hz Super 35mm
  - [C4K] 4096x2160 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [4K] 3840x2160 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [Anamorphic 4K] 3328x2496 (4:3)24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [FHD] 1920x1080 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
- 24.00Hz Pixel by Pixel
  - [C4K] 4096x2160 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)　
    [4K] 3840x2160 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [Anamorphic 4K] 3328x2496 (4:3) 24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [FHD] 1920x1080 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
AVCHD Progressive*** / AVCHD***
- 59.94Hz Full-frame / Super 35mm / Pixel by Pixel
  - [FHD] 1920x1080 59.94i (Maximum output of sensor is 60fps), 24Mbps (4:2:0 8-bit LongGOP) (Dolby)
    [FHD] 1920x1080 23.98p (Maximum output of sensor is 60fps), 24Mbps (4:2:0 8-bit LongGOP) (Dolby)
- 50.00Hz Full-frame / Super 35mm / Pixel by Pixel
  - [FHD] 1920x1080 50.00i (Maximum output of sensor is 60fps), 24Mbps (4:2:0 8-bit LongGOP) (Dolby)

HDMI RAW DATA OUTPUT

Compatible external devices
- Compatible external devices
  - ATOMOS Ninja V 4K HDR Monitor-Recorder (AtomosOS 10.52 or higher)******
    Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR (version 3.4 or higher)********
    *This does not guarantee all of the capabilities that the compatible external recorder may have.
Rec quality
- NTSC (59.94Hz) Full-frame
  - [5.9K] 5888x3312 29.97p, 12-bit (LPCM, High-Res Audio)
    [5.9K] 5888x3312 23.98p, 12-bit (LPCM, High-Res Audio)
- NTSC (59.94Hz) Super 35mm
  - [4K] 4128x2176 (17:9) 59.94p, 12-bit (LPCM, High-Res Audio)
    [4K] 4128x2176 (17:9) 29.97p, 12-bit (LPCM, High-Res Audio)
    [4K] 4128x2176 (17:9) 23.98p, 12-bit (LPCM, High-Res Audio)
    [Anamorphic 3.5K] 3536x2656 (4:3) 29.97p, 12-bit (LPCM, High-Res Audio)
    [Anamorphic 3.5K] 3536x2656 (4:3) 23.98p, 12-bit (LPCM, High-Res Audio)
- PAL (50.00Hz) Full-frame
  - [5.9K] 5888x3312 25.00p, 12-bit (LPCM, High-Res Audio)
- PAL (50.00Hz) Super 35mm
  - [4K] 4128x2176 (17:9) 50.00p, 12-bit (LPCM, High-Res Audio)
    [4K] 4128x2176 (17:9) 25.00p, 12-bit (LPCM, High-Res Audio)
    [Anamorphic 3.5K] 3536x2656 (4:3) 50.00p, 12-bit (LPCM, High-Res Audio)
    [Anamorphic 3.5K] 3536x2656 (4:3) 25.00p, 12-bit (LPCM, High-Res Audio)
Audio format
- LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*) *High-res audio is selectable only when using the DMW-XLR1 (sold separately).

VIEWFINDER

Type
- OLED Live View Finder
Pixels
- Approx. 5.76 million dots
Field of view / Magnification
- Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2
Eye point / Diopter adjustment
- Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)
Eye sensor
- Yes
Display speed
- 120fps / 60fps
Display time lag
- Approx. 0.005sec

REAR MONITOR

Type
- TFT LCD monitor with static touch control
Monitor size
- Tilt free-angle, 3.2-inch (8.0cm), 3:2 aspect
Pixels
- Approx. 2.33 million dots
Field of view
- Approx. 100%

STATUS LCD

STATUS LCD
- 1.8-inch, 303 x 230 dots (effective pixels 287 x 214 dots), Monochrome LCD monitor

FOCUS

Type
- Contrast AF system
DFD technology
- Yes
Focus mode
- AFS (Single) / AFC (Continuous) / MF
AF mode
- Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+* / 1-Area* / Pinpoint / Custom 1, 2, 3
  (Full area touch is available) (Scalable AF frame size and flexible AF position) *Human/Animal Detection AF can be set ON or OFF.*******
AF detective range
- EV -6 - 20 (F1.4, ISO100 equivalent, AFS)
AF custom setting
- AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist lamp
- Yes
AF lock
- Set the Fn button in custom menu to AF lock
Post Focus / Focus Stacking
- Yes / Yes
Others
- AF-ON, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode, 1-Area AF Moving Speed, Loop Movement Focus Frame, AFC Start Point (225-Area), Lens Focus Resume, Focus Ring Control

EXPOSURE CONTROL

Light metering system
- 1,728-zone multi-pattern sensing system
Light metering mode
- Multiple / Center Weighted / Spot / Highlight Weighted
Metering range
- EV0-18 (F2.0 lens, ISO100 equivalent)
Exposure mode
- Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
ISO sensitivity (Standard output sensitivity)
- Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO
Dual Native ISO
- [Normal]
  Native ISO: 100, 640
  Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
  Low: Auto / 50* / 100-800 *Extended ISO
  High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO

  [V-Log]
  Native ISO: 640, 4000
  Auto: Auto / 320* / 640-51200 *Extended ISO
  Low: Auto / 320* / 640-5000 *Extended ISO
  High: Auto / 2000* / 4000-51200 *Extended ISO

  [HLG]
  Native ISO: 400, 2500
  Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
  Low: Auto / 400-3200
  High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO

  [Cinelike D2 / Cinelike V2]
  Native ISO: 200, 1250
  Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
  Low: Auto /100* / 200-1600 *Extended ISO
  High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO
Exposure compensation
- 1/3 EV step ±5EV (±3EV for motion picture)
AE lock
- Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

IMAGE STABILIZATION SYSTEM
- Image sensor shift type (5-axis / 6.0-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=50mm when S-X50 is used.]
  Dual I.S. (6.5-stop* Dual I.S. 2 compatible) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=105mm when S-R24105** is used. focusing distance f=200mm when S-R70200** is used.] **Firmware must be updated to the latest version.

WHITE BALANCE

White balance
- AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment
- Blue/Amber bias, Magenta/Green bias
Color temperature setting
- 2500-10000K in 100K

SHUTTER

Type
- Focal-plane shutter
Shutter speed
- Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
  Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
  Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60
  Motion picture: 1/16,000 - 1/25 (When using Synchro Scan)
  Creative Video M mode / MF mode: 1/16,000 - 1/2
Shutter life
- Approx. 400,000 images
Self timer
- 10sec, 3 images / 2sec / 10sec
Remote control
- Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type
- Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

AE bracket
- 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket
- 3, 5 or all positions in 1 EV step
Focus bracket
- 1 to 999 images, focus steps can be set in 10 levels
White balance bracket
- 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

Burst speed
- Mechanical shutter / Electronic front curtain shutter
  - AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
    AFC: H: 6 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
- Electronic shutter
  - AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
    AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of recordable images
- RAW / RAW+JPEG: More than 60 images
  JPEG: More than 999 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".)
  * Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.

6K PHOTO* / 4K PHOTO*

Burst speed
- 6K PHOTO: 30 frames/sec
  4K PHOTO: 60 frames/sec, 30 frames/sec
Exif information
- Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)

FLASH

Flash type
- TTL External Flash (sold separately)
Flash mode
- Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization
- 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment
- 1/3EV step ±3EV
Synchronization speed
- Less than 1/320 second *The guide number decreases at 1/320 second. Only when set to M mode or S mode.
Wireless control
- Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
Flash sync socket
- Yes

EXTRA TELE CONVERSION

EXTRA TELE CONVERSION
- 2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using Super 35mm (APS-C) lenses), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

Photo Style
- Standard / Vivid / Natural / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Standard (HLG) / Monochrome (HLG) / Like2100 / My Photo Style 1-10
Picture adjustment
- Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Sharpness / Noise Reduction / Dual Native ISO Setting / ISO / WB
  *Adjustable settings vary depending on the Photo Style mode.

FILTER

FILTER
- Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
  *For photos only.

MOTION PICTURE FUNCTION

Vertical Position Information ******
- ON / OFF
Master pedestal level
- 31 steps
Luminance level
- 8-bit: 0-255 / 16-235 / 16-255
  10-bit: 0‒1023 / 64‒940 / 64‒1023
Wave form monitor / Vectorscope
- Selectable
LUT display
- LUT View Assist (Monitor) / LUT View Assist (HDMI)
Synchro scan
- Yes
Time code
- Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When system frequency [59.94Hz] is selected.)
SS/Gain operation
- Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Color bars / 1kHz test tone
- Yes (SMPTE / EBU / ARIB) / Yes
Knee control
- Yes (in Like709 mode)

FUNCTION BUTTON

REC
- Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Flicker Decrease (Photo) / Post-Focus / Motion Pic. Rec Format / Motion Pic. Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec / Playback Switch / Video Record / LVF/Monitor Switch / LVF Magnification / Dial Operation Switch / Preview / Preview Aperture Effect****** / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Video Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Video-Priority Display / Status-LCD Display (Video) / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / Fan Mode / No Setting / Off (Disable Press and Hold)****** / Restore to Default
PLAY
- Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold)****** / Restore to Default

LEVEL GAUGE

LEVEL GAUGE
- Yes

OSD LANGUAGE

OSD LANGUAGE
- Japanese, English, German, French, Italian, Spanish, Polish, Czech, Hungarian, Romanian, Netherlandic, Turkish, Portuguese, Finnish, Danish, Swedish, Greek

PRINT

PRINT
- PictBridge compatible

INTERFACE

USB
- SuperSpeed USB 3.1 Gen1 Type-C
HDMI****
- Monitor-through
  - 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
    4:2:2 8bit (When [Rec Quality] is set to [4:2:2 8bit].)
    Info Display: ON / OFF (selectable)
    Down Convert: Auto / 4K/30p/25p / 1080p / 1080i / OFF
    HLG View Assist (HDMI): AUTO / MODE1 / MODE2 / OFF (selectable)
- Playback
  - HDMI TypeA / VIERA Link, Audio: Stereo
    59.94Hz: Auto / C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p
    50.00Hz: Auto / C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
    24.00Hz: Auto / C4K/24p / 4K/24p / 1080p
Remote input
- φ2.5mm
External microphone / external audio device input
- φ3.5mm for external microphone / external audio device
  MIC (Plug-in Power) / MIC / LINE is selectable.
  Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
Headphone output
- φ3.5mm
Microphone
- Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
XLR microphone
- Yes with DMW-XLR1 (sold separately)
Speaker
- Monaural
SD card slot
- Slot 1, Slot 2
TC IN/OUT
- Yes with BNC Converter Cable (bundled)
Fan
- Auto1 / Auto2 / Normal / Slow
Tally lamp
- Yes (front/rear)

WIRELESS

Wi-Fi
- 2.4GHz (STA/AP) (IEEE802.11b/g/n)
  5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
  1-13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 ch
Bluetooth
- Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

DUST AND SPLASH RESISTANT*
- Yes.
  *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

Battery
- Li-ion Battery Pack (7.4V, 3050mAh, 23Wh) (bundled)
  USB power supply, USB power charging
Battery life (CIPA standard)
- Approx. 400 images (rear monitor), 380 images (LVF), 1,150 images (Power Save LVF mode*) with S-R24105
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery grip
- DMW-BGS1 (sold separately)

DIMENSIONS / WEIGHT

Dimensions (W x H x D)
- Approx. 151.0 x 114.2 x 110.4 mm / 5.94 x 4.50 x 4.35 inch (excluding protrusions)
Weight
- Approx. 1,164g / 2.57 lb (SD Memory Card x 1, Battery, Body)
  Approx. 1,052g / 2.32 lb (Body only)

OPERATING ENVIRONMENT

Operating temperature*****
- -10oC to 40oC (14oF to 104oF)
Operating humidity
- 10%RH to 80％RH

STANDARD ACCESSORIES

Software
- Recording
  - LUMIX Tether
    ・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
    http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
- Playback / Editing
  - ・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.1PE is available for download at Panasonic website using computer connected to the Internet.
    https://panasonic.jp/support/global/cs/soft/download/d_pfs1001pe.html(For Windows)
    ・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
    http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories
- Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, AC Mains Lead, USB Connection Cable (C-C), USB Connection Cable (A-C), BNC Converter Cable, Cable Holder

  ・ The DC-S1H Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

NOTE

NOTE
- *** About motion picture recording / 6K PHOTO/4K PHOTO recording
  - 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.
  - Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [AVCHD] or [MP4(under 28Mbps)].
  - Use a card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K], [MOV], [VFR], [6K PHOTO] or [4K PHOTO].
  (SD speed class is the speed standard regarding continuous writing.)
  - Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording.
  - MP4 motion pictures with [MP4] in [4K]:
  - When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
  - When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
  - MP4 motion pictures with [MP4] in [FHD]:
  - You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
  - 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.
  The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player.
  It may cause problems such as freezing when played on these devices.
  - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

  **** For [6K] [5.9K] [5.4K] [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".

  ***** The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.
