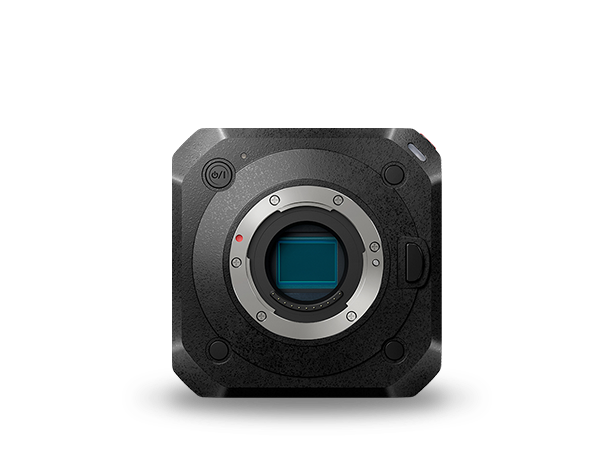

LUMIX-i karbikujuline kaamera DC-BS1H

DC-BS1H

Vabastage oma loovus

Täiskaadriline karbikujuline hübriid kino- ja reaalajakaamera, millel on kompaktne korpus ja võime 6K 24p / 5.9K 30p 10-bitist videot piiramatult jäädvustada.


Lisateave toote, tehnoloogia, trikkide ja nõuannete kohta LUMIX Akadeemias.

Suumi sisse
Suumi välja
Sule
DC-BS1H

Funktsioonid

Karbikujuline täiskaadriline filmi- ja otsekaamera

Üllatavalt väikesesse karbivormi koondatud täiskaadriline pildiandur ja 6K 24p videojäädvustusvõime sobib nii otsevoogesituseks kui ka mitme kaamera juhtimiseks ja kardaanriputilt või droonilt jäädvustamiseks. Seade, mis muudab videotootmise töövoogu.
Süsteemi skeem
(Kaasa kontrollitud tarvikud)Ava uus aken
Karbikujuline täiskaadriline filmi- ja otsekaamera

Dual Native ISO-tehnoloogiaga 24,2 MP täiskaadriline-andur

24,2-megapiksline täiskaadriline CMOS-andur tagab kõrge tundlikkuse ja tipptasemel kujutise kvaliteedi nii fotode kui ka videote puhul. Dual Native ISO-tehnoloogia täiustab videojõudlust veelgi.
Dual Native ISO-tehnoloogiaga 24,2 MP täiskaadriline-andur

6K-video salvestamise võimekus ja mitu salvestamisrežiimi

Varustuses on 6K 24p 4:2:0 10-bit (3:2) ja 5,9K 30p/25p/24p 4:2:0 10-bit, lisaks C4K/4K 60p/50p* 4:2:0 10-bit, C4K/4K 30p/25p/24p 4:2:2 10-bit ja anamorfsele 4K-salvestamisele. Vastab oma mitmekülgsete salvestusrežiimidega professionaalide väga erinevatele videotootmisvajadustele.
*Seadistustes S35mm ja PIXEL/PIXEL.
6K-video salvestamise võimekus ja mitu salvestamisrežiimi

Soojuse haldamine = piiramatu salvestamine

LUMIX BS1H suudab kõikides režiimides piiramatult videot jäädvustada. Kaamera temperatuuri tõusu saab piirata jahutusventilaatoriga ja garanteeritud töötemperatuuri vahemikus pole kasutusaeg piiratud.
Soojuse haldamine = piiramatu salvestamine

Juhtmega LAN-ühenduse teel paindlik laiendatavus

• Kaugjuhtimine LUMIX Tether for Multicamiga toimub üle Etherneti kaabli.
• Ethernet / PoE+ ühilduv kaamera
• IP-voogesitus arvutiga (protokoll RTP/RTSP)
• Samaaegne SDI-/HDMI-väljund
• Genlock IN ja Timecode IN/OUT
Juhtmega LAN-ühenduse teel paindlik laiendatavus

HDMI reaalajas väljund professionaalseks filmiloomeks

RAW-videoandmete väljund

LUMIX BS1H võimaldab väljutada üle HDMI maksimaalselt 29.97p 5.9K (5888x3312, 16:9) / 59.94p 4K (4128x2176, 17:9) ja anamorfset 3.5K (3536x2656, 4:3) 12-bit RAW-videoandmeid, et salvestada need Atomos Ninja V 4K HDR monitorsalvestil Apple ProRes RAW-na.* Blackmagic RAW-d on võimalik salvestada ka Video Assist 12G HDR-il.**

*[Apple ProRes RAW] ･Valitav salvestusrežiim oleneb Atomos Ninja V püsivaraversioonist. ･Lisateavet Atomos Ninja V vastava püsivaraversiooni kohta leiate Atomose veebisaidilt. ･NINJA V-ga salvestatud RAW-video redigeerimiseks on vaja tarkvara, mis toetab Apple ProRes RAW-d. V-Log/V-Gamutiga sama värvigradatsiooni tegemiseks kohaldage LUT-d (referentstabel), mis on saadaval järgmisel klienditoesaidil https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ ･Olukorrast olenevalt ei pruugi kõik funktsioonid olla saadaval. **[Blackmagic RAW] ･Valitav salvestusrežiim oleneb Blackmagic Video Assist 12G HDR-i püsivara versioonist. ･Lisateabe saamiseks Blackmagic Video Assist 12G HDR-i vastava püsivara versiooni kohta vt Blackmagic Design veebisaiti. ･Blackmagic RAW-andmete esitamiseks ja redigeerimiseks on vajalik DaVinci Resolve või DaVinci Resolve Studio. Üle 3840x2160 lahutusvõimega Blackmagic RAW andmeid kasutavate projektide loomiseks on vajalik DaVinci Resolve Studio. ･Olukorrast sõltuvalt ei pruugi kõik funktsioonid olla saadaval.

RAW-videoandmete väljund

Samaaegse sisemise/välise salvestamise toetus.

Toetatakse samaaegset 6K 24p 4:2:0 10-bit (3:2) / 5.9K 30p/25p/24p 4:2:0 10-bitist (16:9) sisemist salvestamist ja 4K 4:2:2 10-bitist HDMI Live Output välist salvestamist.
･HDMI, HDMI Logo ja High-Definition Multimedia Interface on ettevõtte HDMI Licensing LLC kaubamärgid ja registreeritud kaubamärgid Ameerika Ühendriikides ja teistes riikides.
Samaaegse sisemise/välise salvestamise toetus.

Inspiratsioon

Tehnilised andmed

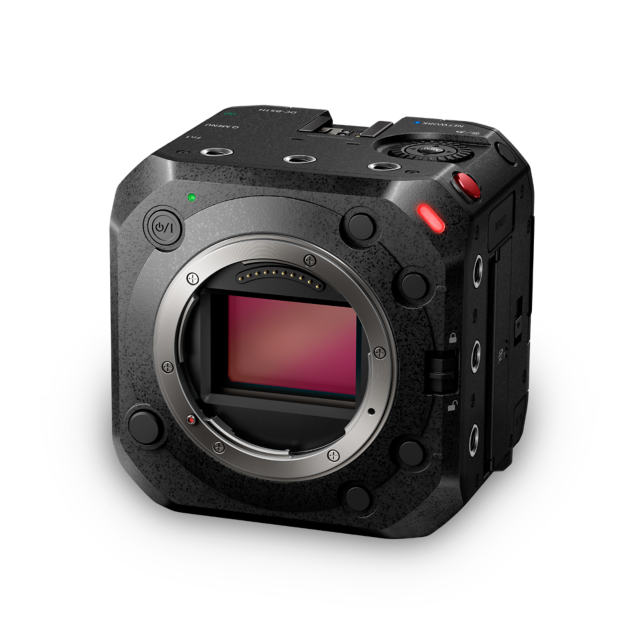

Foto LUMIX-i karbikujuline kaamera DC-BS1H

Suurus ja kaal

Kõrgus
93.0mm
Laius
93.0mm
Sügavus
78.8mm
Kaal
585g

Kõik väärtused on ligikaudsed. Kaal viitab vaid korpuse kaalule. Mõõtmed ei sisalda eenduvaid osi.

  • L-MountL-Mount
  • 24.2 Megapixels24.2 Megapixels
  • 4K Video Recording Capability4K Video Recording Capability
  • 6K 24p video in 3:2 aspect ratios6K 24p video in 3:2 aspect ratios
  • 14+ stops V-Log14+ stops V-Log
  • HDMI Output and SDI OutputHDMI Output and SDI Output
  • Genlock IN and Timecode IN/OUTGenlock IN and Timecode IN/OUT
  • Ethernet and PoE+ CompatibleEthernet and PoE+ Compatible
  • Live StreamingLive Streaming
  • Wi-FiWi-Fi
  • BluetoothBluetooth
  • HEVC AdvanceHEVC Advance

Dual Native ISO-tehnoloogiaga 24,2 MP täiskaadriline CMOS-andur

6K/24p 3:2 10-bitine video, C4K/4K 60p/50p 10-bitine video ja piiramatu salvestusaeg

HDMI RAW-videoandmete väljund – Apple ProRes RAW ja Blackmagic RAW

Ethernet / PoE+ (IEEE802.3at-le vastav) ühilduv

Qualifying to LUMIX Pro program

TYPE

  • Type

    • Digital Single Lens Mirrorless camera

  • Lens mount

    • L-Mount

  • Recording media

    • SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
      *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

IMAGE SENSOR

  • Type

    • 35mm full-frame (35.6mm x 23.8mm) CMOS sensor

  • Camera effective pixels / Total pixels

    • 24.20 megapixels / 25.28 megapixels

  • AR (Anti Reflection) coating

    • Yes

  • Aspect ratio / Color filter

    • 3:2 / Primary color filter

  • Dust reduction system

    • -

LATITUDE

  • Latitude

    • 14+ stops (V-Log)

STILL IMAGE

  • Recording file format

    • JPEG (DCF, Exif 2.31) *Tethered photo shooting with LUMIX Tether for Multicam software

  • Aspect ratio

    • 3:2

  • File size (Pixels)

    • When using full-frame lenses: 6000x4000(L) / 4272x2848(M) / 3024x2016(S)
      When using APS-C/Super 35mm lenses: 3888x2592(L) / 2784x1856(M) / 1968x1312(S)

  • Image quality

    • Fine / Standard

  • Color space

    • sRGB

  • Burst shooting

    • -

MOTION PICTURE

  • Recording file format

    • MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
      MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))

  • System frequency

    • 59.94Hz / 50.00Hz / 24.00Hz

  • MOV (*2) (*3)

    • 59.94Hz FULL
      • [6K] 5952x3968 (3:2), 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [5.4K] 5376x3584 (3:2), 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [5.9K] 5888x3312 (16:9), 29.97p, 200Mbps (4:2:0 10-bit LongGOP)(H.265/HEVC, LPCM, High-Res Audio) (*1)
        [5.9K] 5888x3312 (16:9), 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [C4K] 4096x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 23.98p,100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 59.94p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 59.94i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    • 59.94Hz S35mm / PIXEL/PIXEL
      • [C4K] 4096x2160, 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [C4K] 4096x2160, 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [C4K] 4096x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [Anamorphic 4K] 3328x2496 (4:3), 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [Anamorphic 4K] 3328x2496 (4:3), 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        *When S35mm is selected. HLG is selectable.
        [FHD] 1920x1080, 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 59.94p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 59.94i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    • 50.00Hz FULL
      • [5.4K] 5376x3584 (3:2), 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [5.9K] 5888x3312 (16:9), 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 50.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 50.00i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    • 50.00Hz S35mm / PIXEL/PIXEL
      • [C4K] 4096x2160, 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [C4K] 4096x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [Anamorphic 4K] 3328x2496 (4:3), 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [Anamorphic 4K] 3328x2496 (4:3), 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        *When S35mm is selected. HLG is selectable.
        [FHD] 1920x1080, 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 50.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 50.00i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    • 24.00Hz FULL
      • [6K] 5952x3968 (3:2), 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [5.9K] 5888x3312 (16:9), 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    • 24.00Hz S35mm / PIXEL/PIXEL
      • [C4K] 4096x2160, 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [C4K] 4096x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160, 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [4K] 3840x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [Anamorphic 4K] 3328x2496 (4:3), 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [Anamorphic 4K] 3328x2496 (4:3), 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [FHD] 1920x1080, 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
        [FHD] 1920x1080, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)

  • MP4 (*3)

    • 59.94Hz FULL
      • [4K] 3840x2160, 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
        [4K] 3840x2160, 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
        [4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [4K] 3840x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 59.94Hz S35mm / PIXEL/PIXEL
      • [4K] 3840x2160, 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
        [4K] 3840x2160, 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
        [4K] 3840x2160, 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
        [4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [4K] 3840x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 50.00Hz FULL
      • [4K] 3840x2160, 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
        [4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 50.00Hz S35mm / PIXEL/PIXEL
      • [4K] 3840x2160, 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
        [4K] 3840x2160, 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
        [4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080, 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 24.00Hz
      • -

  • Variable frame rate, MOV (*3)

    • 59.94Hz FULL
      • [FHD] 1920x1080, 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 1920x1080, 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 1920x1080, 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 59.94Hz S35mm
      • [C4K] 4096x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [C4K] 4096x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3), 29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3), 23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080, 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 1920x1080, 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 1920x1080, 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 59.94Hz PIXEL/PIXEL
      • [C4K] 4096x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [C4K] 4096x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3), 29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3), 23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    • 50.00Hz FULL
      • [FHD] 1920x1080, 50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 1920x1080, 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 50.00Hz S35mm
      • [C4K] 4096x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3), 25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080, 50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 1920x1080, 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 50.00Hz PIXEL/PIXEL
      • [C4K] 4096x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3), 25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    • 24.00Hz FULL
      • [FHD] 1920x1080, 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 24.00Hz S35mm
      • [C4K] 4096x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3), 24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080, 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 24.00Hz PIXEL/PIXEL
      • [C4K] 4096x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3), 24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)

HDMI RAW DATA OUTPUT

  • Compatible external devices

    • ATOMOS Ninja V 4K HDR Monitor-Recorder
      *Selectable recording mode depends on the firmware version of Atomos Ninja V.
      *Please refer to the Atomos website for the information on the corresponding firmware version of Atomos Ninja V.
      *Software that supports Apple ProRes RAW is required to edit RAW video recorded with NINJA V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut
      https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
      *All functions may not be available depending on the situation.

      Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR
      *Selectable recording mode depends on the firmware version of Blackmagic Video Assist 12G HDR.
      *Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR.
      *DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160.
      *All functions may not be available depending on the situation.

  • Rec quality

    • 59.94Hz FULL
      • [5.9K] 5888x3312 (16:9), 29.97p, 12-bit (LPCM)
        [5.9K] 5888x3312 (16:9), 23.98p, 12-bit (LPCM)
    • 59.94Hz S35mm
      • [4K] 4128x2176 (17:9), 59.94p, 12-bit (LPCM)
        [4K] 4128x2176 (17:9), 29.97p, 12-bit (LPCM)
        [4K] 4128x2176 (17:9), 23.98p, 12-bit (LPCM)
        [Anamorphic 3.5K] 3536x2656 (4:3), 29.97p, 12-bit (LPCM)
        [Anamorphic 3.5K] 3536x2656 (4:3), 23.98p, 12-bit (LPCM)
    • 50.00Hz FULL
      • [5.9K] 5888x3312 (16:9), 25.00p, 12-bit (LPCM)
    • 50.00Hz S35mm
      • [4K] 4128x2176 (17:9), 50.00p, 12-bit (LPCM)
        [4K] 4128x2176 (17:9), 25.00p, 12-bit (LPCM)
        [Anamorphic 3.5K] 3536x2656 (4:3), 50.00p, 12-bit (LPCM)
        [Anamorphic 3.5K] 3536x2656 (4:3), 25.00p, 12-bit (LPCM)

  • Audio format

    • LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*) *High-res audio is selectable only when using the DMW-XLR1 (sold separately).

IP STREAMING

  • Protocol

    • RTP / RTSP

  • Streaming quality

    • 59.94Hz
      • [4K] 3840x2160, 59.94p, 50Mbps / 25Mbps (H.265)
        [4K] 3840x2160, 59.94p, 50Mbps / 25Mbps (H.264)
        [4K] 3840x2160, 29.97p, 25Mbps / 12.5Mbps (H.265)
        [4K] 3840x2160, 29.97p, 25Mbps / 12.5Mbps (H.264)
        [FHD] 1920x1080, 59.94p, 20Mbps / 16Mbps (H.265)
        [FHD] 1920x1080, 59.94p, 16Mbps / 8Mbps (H.264)
        [FHD] 1920x1080, 29.97p, 12Mbps / 6Mbps (H.265)
        [FHD] 1920x1080, 29.97p, 6Mbps / 3Mbps (H.264)
        [HD] 1280x720, 59.94p, 6Mbps (H.264)
        [HD] 1280x720, 29.97p, 4Mbps (H.264)
    • 50.00Hz
      • [4K] 3840x2160, 50.00p, 50Mbps / 25Mbps (H.265)
        [4K] 3840x2160, 50.00p, 50Mbps / 25Mbps (H.264)
        [4K] 3840x2160, 25.00p, 25Mbps / 12.5Mbps (H.265)
        [4K] 3840x2160, 25.00p, 25Mbps / 12.5Mbps (H.264)
        [FHD] 1920x1080, 50.00p, 20Mbps / 16Mbps (H.265)
        [FHD] 1920x1080, 50.00p, 16Mbps / 8Mbps (H.264)
        [FHD] 1920x1080, 25.00p, 12Mbps / 6Mbps (H.265)
        [FHD] 1920x1080, 25.00p, 6Mbps / 3Mbps (H.264)
        [HD] 1280x720, 50.00p, 6Mbps (H.264)
        [HD] 1280x720, 25.00p, 4Mbps (H.264)

  • RTSP port

    • Change (Up to 65535) / Default (554)

MONITOR

  • Viewfinder

    • -

  • Rear monitor

    • -

  • Status LCD

    • -

FOCUS

  • Type

    • Contrast AF system

  • DFD technology

    • Yes

  • Focus mode

    • AF / MF

  • AF detective range

    • EV -6 - 20 (F1.4, ISO100 equivalent, AF)

  • AF mode

    • Motion picture: Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Oval) / 1-Area
      Still image: Auto Detection (Face, Eye, Body, Animal) / 225-Area /1-Area *Tethered photo shooting with LUMIX Tether for Multicam software

  • AF custom setting (Video)

    • AF Speed, AF Sensitivity

  • AF lock

    • Set the Fn button in custom menu to AF lock

  • Focus ring control

    • Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) *When a compatible lens is attached.

  • Others

    • AF-ON, Continuous AF, AF+MF, MF Assist, MF Guide, 1-Area AF Moving Speed, Focus Ring Lock, Focus Peaking, Lens Focus Resume

EXPOSURE CONTROL

  • Light metering system

    • 1,728-zone multi-pattern sensing system

  • Light metering mode

    • Multiple / Center Weighted / Spot / Highlight Weighted

  • Metering range

    • EV0-18 (F2.0 lens, ISO100 equivalent)

  • Exposure mode

    • Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure

  • Exposure compensation

    • Motion picture: 1/3 EV step ±3EV
      Still image: 1/3 EV step ±5EV *Tethered photo shooting with LUMIX Tether for Multicam software

  • ISO sensitivity (Standard output sensitivity)

    • Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO

  • Dual Native ISO

    • [Normal]
      Native ISO: 100, 640
      Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
      Low: Auto / 50* / 100-800 *Extended ISO
      High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO

      [V-Log]
      Native ISO: 640, 4000
      Auto: Auto / 320* / 640-51200 *Extended ISO
      Low: Auto / 320* / 640-5000 *Extended ISO
      High: Auto / 2000* / 4000-51200 *Extended ISO

      [HLG]
      Native ISO: 400, 2500
      Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
      Low: Auto / 400-3200
      High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO

      [Cinelike D2 / Cinelike V2]
      Native ISO: 200, 1250
      Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
      Low: Auto /100* / 200-1600 *Extended ISO
      High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO

  • AE lock

    • Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

  • Body I.S.

    • -

  • Boost I.S. (Video)

    • Yes *When a compatible lens equipped with O.I.S. is attached.

WHITE BALANCE

  • White balance

    • AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4

  • White balance adjustment

    • Blue/Amber bias, Magenta/Green bias

  • Color temperature setting

    • 2500-10000K in 100K

SHUTTER

  • Type

    • -

  • Shutter speed

    • Motion picture: 1/16,000 - 1/2
      Still image: 1/8,000 - 1 *Tethered photo shooting with LUMIX Tether for Multicam software

PHOTO STYLE / FILTER

  • Photo style

    • Standard / Vivid / Natural / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Like2100 (HLG) / My Photo Style 1-10
      Picture adjustment: Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Sharpness / Noise Reduction / Dual native ISO / ISO / WB *Adjustable settings vary depending on the Photo Style mode.

  • Filter

    • Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Fantasy / One Point Color

OTHER FUNCTIONS

  • Vertical position information

    • ON / OFF

  • SS/Gain operation

    • Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB

  • Luminance level

    • 8-bit: 0-255 / 16-235 / 16-255
      10-bit: 0‒1023 / 64‒940 / 64‒1023

  • Synchro scan

    • Yes

  • Master pedestal level

    • 31 steps

  • Knee control

    • Yes (in Like709 mode)

  • Level Gauge

    • Yes

  • V-Log view assist

    • Rec / Playback: HDMI / SDI

  • HLG view assist

    • Rec / Playback: HDMI (AUTO / MODE1 / MODE2 / OFF) / SDI (MODE1 / MODE2 / OFF)

  • Anamorphic desqueeze display

    • 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
      Rec: SDI
      Playback: HDMI / SDI

  • Color bars / 1kHz test tone

    • Yes (SMPTE / EBU / ARIB) / Yes

  • Other functions

    • Red REC Frame Indicator, Streaming Blue Frame Indicator

  • Function button

    • REC
      • Exposure Mode / Aperture Value / Shutter Speed / Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Metering Mode / i.Dynamic Range / Filter Effect / One Push AE / Synchro Scan / Focus Mode / AF Mode / AF Custom Setting (Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Rec File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / HDMI RAW Data Output / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Display Information / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Zebra Pattern / LUT View Assist (HDMI) / LUT View Assist (SDI) / LUT Select / HLG View Assist (HDMI) / HLG View Assist (SDI) / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / Destination Card Slot / LAN/Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
    • PLAY
      • Anamorphic Desqueeze Display / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / Video Record / Display Information / Card Slot Change / LAN/Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / LUT View Assist (HDMI) / LUT View Assist (SDI) / HLG View Assist (HDMI) / HLG View Assist (SDI) / No Setting / Off (Disable Press and Hold) / Restore to Default

  • Operation lock

    • Yes with Operation Lock Switch

INTERFACE

  • USB

    • SuperSpeed USB 3.1 Gen1 Type-C

  • DC IN

    • DC 12V (11.4-12.6V), EIAJ Type4

  • HDMI (*4)

    • HDMI TypeA
      Audio: Stereo

      Monitor-through
      4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
      4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
      Down Convert: Auto / 4K/30p/25p / 1080p / 1080i / OFF

      Playback
      59.94Hz: Auto / C4K/59.94p / C4K/29.97p / C4K/23.98p / 4K/59.94p / 4K/29.97p / 4K/23.98p / 1080/59.94p / 1080/29.97p / 1080/23.98p / 1080/59.94i / 720/59.94p / 480/59.94p
      50.00Hz: Auto / C4K/50.00p / C4K/25.00p / 4K/50.00p / 4K/25.00p / 1080/50.00p / 1080/25.00p / 1080/50.00i / 720/50.00p / 576/50.00p
      24.00Hz: Auto / C4K/24.00p / 4K/24.00p / 1080/24.00p

  • SDI

    • BNC Terminal, 0.8V [p-p], 75Ω, 3G-SDI Level-A / HD-SDI
      Audio: Stereo, SDI Sound Output Gain Adj.: 0dB / -6dB / -8dB

      Monitor-through
      4:2:2 10bit *The bit accuracy is 8 bits when the 8-bit recording mode is selected.

      Playback
      59.94Hz: 1080/59.94p LEVEL-A / 1080/29.97p / 1080/23.98p / 1080/59.94i / 1080/29.97PsF / 1080/23.98PsF / 720/59.94p
      50.00Hz: 1080/50.00p LEVEL-A / 1080/25.00p / 1080/50.00i / 1080/25.00PsF / 720/50.00p
      24.00Hz: 1080/24.00PsF

  • Ethernet

    • Remote Control: LAN Terminal (RJ-45)
      Power Supply: PoE+ (IEEE802.3at compliant)
      *Use an IEC60950-1 or IEC62368-1 compliant PoE+ (IEEE802.3at compliant) hub or power supplying device.

  • Remote input

    • φ2.5mm

  • Microphone

    • Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).

  • Speaker

    • -

  • External microphone / external audio device input

    • φ3.5mm for external microphone / external audio device
      MIC (Plug-in Power) / MIC / LINE is selectable.
      Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).

  • XLR microphone

    • Yes with DMW-XLR1 (sold separately)

  • Headphone output

    • φ3.5mm

  • SD card slot

    • Slot 1, Slot 2

  • TC IN/OUT

    • Count up
      • Rec Run / Free Run
    • Time code mode
      • Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
    • HDMI time code output
      • ON / OFF
    • SDI time code output
      • ON / OFF
    • External TC setting
      • TC Synchronization / TC Output Reference

  • Genlock IN

    • Genlock IN
      • ON / OFF
    • Horizontal phase synchronization
      • -206 - +49

  • Fan

    • Auto1 / Auto2 / Normal / Slow

  • Lamp

    • Tally Lamp (front/rear) / Card Access Lamp / Power LED / Network LED

  • Flash

    • -

WIRELESS

  • Wi-Fi

    • 2.4GHz (STA/AP), IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (1-11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode

  • Bluetooth

    • Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

POWER

  • Direct power supply

    • AC Adaptor (12V, 3A) (bundled)
      Li-ion Battery Pack (7.28V) (sold separately)
      PoE+ (IEEE802.3at compliant) (sold separately)

  • Battery

    • Li-ion Battery Pack AG-VBR59 (7.28V, 5900mAh, 43Wh) (sold separately)
      Li-ion Battery Pack AG-VBR89 (7.28V, 8850mAh, 65Wh) (sold separately)
      Li-ion Battery Pack AG-VBR118 (7.28V, 11800mAh, 86Wh) (sold separately)

  • Continuous recordable time (Motion picture) (*3)

    • MP4 [4K/60p]: Approx. 230 min (S35mm), MP4 [FHD/60p]: Approx. 300 min (FULL) *When using S-R24105 and AG-VBR59 (sold separately). When the battery is fully charged.
      MP4 [4K/60p]: Approx. 360 min (S35mm), MP4 [FHD/60p]: Approx. 470 min (FULL) *When using S-R24105 and AG-VBR89 (sold separately). When the battery is fully charged.
      MP4 [4K/60p]: Approx. 480 min (S35mm), MP4 [FHD/60p]: Approx. 630 min (FULL) *When using S-R24105 and AG-VBR118 (sold separately). When the battery is fully charged.

  • Actual recordable time (Motion picture) (*3)

    • MP4 [4K/60p]: Approx. 115 min (S35mm), MP4 [FHD/60p]: Approx. 150 min (FULL) *When using S-R24105 and AG-VBR59 (sold separately). When the battery is fully charged.
      MP4 [4K/60p]: Approx. 180 min (S35mm), MP4 [FHD/60p]: Approx. 235 min (FULL) *When using S-R24105 and AG-VBR89 (sold separately). When the battery is fully charged.
      MP4 [4K/60p]: Approx. 240 min (S35mm), MP4 [FHD/60p]: Approx. 315 min (FULL) *When using S-R24105 and AG-VBR118 (sold separately). When the battery is fully charged.

DIMENSIONS / WEIGHT

  • Dimensions (W x H x D)

    • Approx. 93.0 x 93.0 x 78.8 mm / 3.66 x 3.66 x 3.1 inch (excluding protrusions)

  • Weight

    • Approx. 585g / 1.29 lb (Body only)

OPERATING ENVIRONMENT

  • Operating temperature (*5)

    • -10℃ to 40℃ (14˚F to 104˚F)

  • Operating humidity

    • 10%RH to 80％RH

STANDARD ACCESSORIES

  • Software

    • LUMIX Tether for Multicam
      ･This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
      http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)

  • Standard accessories

    • AC Adaptor, AC Cable, Cable Lock Band, Body Cap, Hot Shoe Cover, AUDIO Terminal Cover, DC IN Terminal Cover, BNC Terminal Cover, HDMI Terminal Cover, REMOTE Terminal Cover
      ･The DC-BS1H Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

NOTE

  • (*1) HLG is selectable.

    (*2) High-res audio is selectable only when using the DMW-XLR1 (sold separately).

    (*3) About motion picture recording
    - Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [MP4(under 28Mbps)].
    - Use a card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K] or [MOV].
    (SD speed class is the speed standard regarding continuous writing.)
    - Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording.
    - MP4 motion pictures with [MP4] in [4K]:
    - When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
    - When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
    - MP4 motion pictures with [MP4] in [FHD]:
    - You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
    - 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.
    The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player.
    It may cause problems such as freezing when played on these devices.
    - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

    (*4) For [6K] [5.9K] [5.4K] [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".

    (*5) The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.
Ava printimiseks uus lehekülg

Tarvikud

Objektiivid

S-R1635

L-Mount 16-35 mm lainurk-suumobjektiiv

S-E2470

LUMIX S PRO 24-70 mm F2,8

S-E70200

LUMIX S PRO 70-200 mm F2,8 O.I.S.

S-R70200

LUMIX S PRO 70-200 mm F4 O.I.S.

S-X50

LUMIX S PRO 50 mm F1,4

S-R2060

LUMIX S 20-60 mm F3,5-5,6

S-R24105

LUMIX S 24-105 mm F4 MACRO O.I.S.

S-R70300

L-Mount 70–300 mm telefoto-suumobjektiiv

S-S24

L-Mount 24 mm fikseeritud fookuskaugusega objektiiv

S-S50

L-Mount 50mm fikseeritud fookuskaugusega objektiiv

S-S85

LUMIX S 85 mm F1,8

Akud / akulaadija

AG-VBR59

Aku

Foto AG-VBR59

AG-VBR89

Aku

Foto AG-VBR89

AG-VBR118

Aku

Foto AG-VBR118

AG-BRD50

Akulaadija

Foto AG-BRD50

XLR mikrofoniadapter / mikrofonid

DMW-XLR1

XLR-mikrofoniadapter

DMW-MS2

Mikrofonid

DMW-VMS10

Mikrofon

Foto DMW-VMS10

Videolamp

VW-LED1

LED-videolamp

Foto VW-LED1

Statiivi adapter

DMW-TA1

Statiivi adapter

Foto DMW-TA1
Vt kõiki tarvikuid

Kasutajatugi

LUMIX-i karbikujuline kaamera DC-BS1H

Külastage selle toote tugiteabe lehte

DC-BS1H süsteemi skeem
