LUMIX GH6 kaamera DC-GH6A

DC-GH6A

Uus loominguline mõõde

25,2-megapikslise reaalajas töötava MOS-anduri, 4:2:2 10-bitise C4K/4K 60p/50p video ja piiramatu jäädvustusajaga* hübriidkaamera.
* Garanteeritud kasutuskeskkonnas. Aku kasutamisel. Salvestusaeg oleneb aku ja salvestusmeediumi mahutavusest.
Suumi sisse
Suumi välja
Sule

Funktsioonid

Püsivaraversioon 2.0 / 2.2 / 2.3

RAW videoandmete väljund

Püsivaravärskendus võimaldab RAW-videoandmete väljutamist üle HDMI, et salvestada see ProRes RAW-na ATOMOS NINJA V+ ja NINJA V HDR monitor-salvestitel.* Blackmagic RAW-d on võimalik salvestada ka Video Assist 12G HDR-il.**

*Püsivaraversioon 2.0 või uuem. ・ATOMOS Ninja V+ või ATOMOS Ninja V vastava püsivaraversiooni kohta leiate teabe ATOMOS-e veebisaidilt. ・ATOMOS Ninja V+ või ATOMOS Ninja V-ga salvestatud RAW-video redigeerimiseks on vajalik tarkvara, mis toetab ProRes RAW-d. V-Log/V-Gamutiga samasuguse värvigradatsiooni tegemiseks kasutage LUT-d (referentstabel), mis on saadaval järgneval klienditoesaidil
https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ ・Olukorrast tulenevalt ei pruugi kõik funktsioonid olla saadaval. **Püsivaraversioon 2.3 või uuem. ・Blackmagic RAW-andmete esitamiseks on vajalik DaVinci Resolve või DaVinci Resolve Studio ja redigeerimiseks DaVinci Resolve Studio. ・Blackmagic Video Assist 5” 12G HDR ja Blackmagic Video Assist 7” 12G HDR vastavate püsivaraversioonide kohta teabe saamiseks vt Blackmagic Design-i veebisaiti. ・Olukorrast sõltuvalt ei pruugi kõik funktsioonid olla saadaval. ・4K 120p/100p või 5.7K 60p/50p salvestamise ajal on SSD-le salvestamisel soovitatav kasutada pidevat bitikiirust kuni 5:1 ja SD-kaardile salvestamisel pidevat bitikiirust kuni 8:1.

RAW videoandmete väljund

Esmakordselt LUMIXil: Apple ProRes koodekiga video

CFexpress Type B kaarti kasutades (MOV, 5.7K, 5728x3024, 29.97p/25.00p/24.00p) saate seadme siseselt salvestada professionaalsete valdkonnastandardite ProRes 422 HQ ja ProRes 422 koodekiga videoid, mida iseloomustavad kõrge pildikvaliteet ja madal tihendus. See vähendab järeltöötlemise ajal oluliselt arvuti koormust ning võimaldab ilma transkodeerimiseta NLEd (mittelineaarne redigeerimine), muutes kogu töövoo algusest lõpuni sujuvamaks.
Püsivara versioon 2.0 toetab C4K (4096x2160) ja FHD (1920x1080) juures kaadrisagedust 59.94p/50.00p.
・Apple ja ProRes on ettevõtte Apple Inc. kaubamärgid või registreeritud kaubamärgid Ameerika Ühendriikides ja/või teistes riikides.
Esmakordselt LUMIXil: Apple ProRes koodekiga video

USB-SSD otsesalvestamine

Püsivaraversiooniga 2.2 toetatakse USB kaudu välist SSD-d kasutades salvestamist ja taasesitamist. Lisaks on võime salvestada Apple ProRes422 HQ (maksimaalselt 1,9 Gbps) ja 4:2:2 10-bitist All-Intrat otse SSD-le, mis ühendab endas portatiivsust ja suurt mahutavust, parandanud andmete varundamise ja järeltöötlemise tõhusust.

・USB-SSD-le vähemalt 61 k/s HFR/VFR video salvestamiseks on vajalik püsivara värskendus versioonile 2.3, AC Adaptor DMW-AC10 (valikuline) ja DC Coupler DMW DCC17 (valikuline). ・Välisele SSD-le salvestamise ajal pole võimalik videot ja foto korraga SD-kaardile või CF express-kaardile salvestada. ・Kasutage kuni 2 TB SSD-d, mis ühildub USB Type-C-ga. Soovitame kasutada välist SSD-d, mille toimimist on Panasonic kinnitanud. Pange tähele, et see ei garanteeri kõigi seadmete toimimist. ・Värskeim teave väliste SSD-de kohta on samaaegselt püsivara avaldamisega saadaval järgmisel tugisaidil: https://panasonic.jp/support/global/cs/dsc/connect/index.html

USB-SSD otsesalvestamine

5.7K 10-bitine 60p/50p jäädvustamine

5.7K (5728x3024) 4:2:0 10-bitises 60p/50p (17:9) ja 5.8K (5760x4320) 30p/25p/24p 4:2:0 10-bitises anamorfses (4:3) režiimis pakub LUMIX GH6 suuremat eraldusvõimet ja bitikiirust kui kunagi varem, mille tulemuseks on kujutise kõrge kvaliteet, mitmekülgsus ja väljendusrikkus, mida on vaja nii filmide, telesaadete kui ka igat laadi videotootmise puhul.
5.7K 10-bitine 60p/50p jäädvustamine

Piiramatu 4:2:2 10-bitine C4K/4K 60p/50p video jäädvustusaeg

Esimese 4:2:2 10-bitise C4K/4K 60p/50p sisemise videojäädvustusega LUMIXina pakub GH6 piiramatut jäädvustusaega*, kui seadet kasutatakse soovitatud töötemperatuuril**. Sobib suurepäraselt väikestele tootmisrühmadele ja nõudlikkesse tingimustesse, kus on kindlasti vaja mobiilsust ja kõrget kvaliteeti. Samuti on võimalik samaaegne sisemine ja HDMI-väljundi kaudu väline salvestamine.
* Garanteeritud kasutuskeskkonnas. Aku kasutamisel. Salvestusaeg oleneb aku ja salvestusmeediumi mahutavusest.
**-10–40 ℃.
・ Vastab Digital Cinema Initiativesi (DCI) määrangu kohaselt 4K (4096 x 2160) eraldusvõimele.
・Vaja on CFexpress-kaarti või SD-mälukaarti video kiirusklassiga 90.
Piiramatu 4:2:2 10-bitine C4K/4K 60p/50p video jäädvustusaeg

7,5-stopiga Dual I.S. 2 (pildistabilisaator)

5-teljeline Dual I.S. 2 (pildistabilisaator) ühendab endas Body I.S. ja Lens O.I.S. ja pakub 7,5 stopi väärilist korrektsiooni.*
*Põhineb CIPA standardil [horisontaalne/vertikaalne suund: fokuseerimiskaugus f=140 mm (35 mm filmikaamera ekvivalent f=280 mm), kui kasutatakse mudelit H-FSA14140.]
7,5-stopiga Dual I.S. 2 (pildistabilisaator)

HFR/VFR 10-bitine jäädvustamine

Viimasel ajal videotootmises populaarseks muutunud kõrge eraldusvõimega aegluubis jäädvustamine on nüüd võimalik tänu C4K/4K 10-bitisele 120p/100p HFR (suur kaadrisagedus) heliga videosalvestamisele. LUMIX GH6 pakub ka erinevaid 10-bitiseid ALL-Intra jäädvustusrežiime kõrge kvaliteediga redigeerimiseks, mistõttu on nüüd võimalik jäädvustada ka FHD 240p/200p HFR ja FHD 240fps VFR (muutuv kaadrisagedus) videot. VFR-i puhul on teil võimalik salvestada kuni 12,5x superaegluubis videot (FHD 10-bitine 24p / 300 k/s).
・Andurite maksimaalne väljundvõimsus on aktiveeritud dünaamilise vahemiku võimenduse puhul 60 kaadrit sekundis.
HFR/VFR 10-bitine jäädvustamine

Uus pilditöötlusmootor Venus Engine

Uus Venus Engine on varasemaga võrreldes ligi kaks korda suurema töötlusvõimsusega, võimaldades uue pildianduri suurema piksliarvu suurel kiirusel töötlemist ning suurema eraldusvõime ja kõrgema bitikiirusega videot. Samuti on oluliselt paranenud kujutise kvaliteet. Uus tark detailide töötlemine pakub suuremat eraldusvõimet ning uus 2D ja suure jõudlusega 3D mürasummutus (videotele) optimeerib müra vähendamist. Tulemuseks on isegi kõrge intensiivsuse puhul madala müratasemega loomulikud, 3D-le sarnanevad pildid. Täpne Dual 3D Color Control parandab värvide taasesitust (heledus, küllastatus ja toon) ja pakub loomutruumat ja rikkalikumat värviväljendust.
Uus pilditöötlusmootor Venus Engine

Uus 25,2 MP pildiandur

LUMIX GH6-l on esimene Micro Four Thirds™ süsteemi standardile vastav 25,2-megapiksline reaalajas töötav MOS-andur. Madalpääsufiltrita pildianduri lahendus võimaldab rohkem piksleid ja suuremat eraldusvõimet, andes tulemuseks ülirealistliku detailirohkuse. Suurem lugemiskiirus võimaldab salvestada C4K/4K 120p videot ja elektroonilise katiku abil ka 75 kaadrit sekundis sarivõtet, vähendades samas veereva katiku moonutust.
・ Four Thirds™ nimi ja logod on ettevõtte Olympus Imaging Corporation poolt Jaapanis, Ameerika Ühendriikides, Euroopa Liidus ning teistes riikides ja piirkondades registreeritud kaubamärgid või kaubamärgid.
Uus 25,2 MP pildiandur

Inspiratsioon

Tehnilised andmed

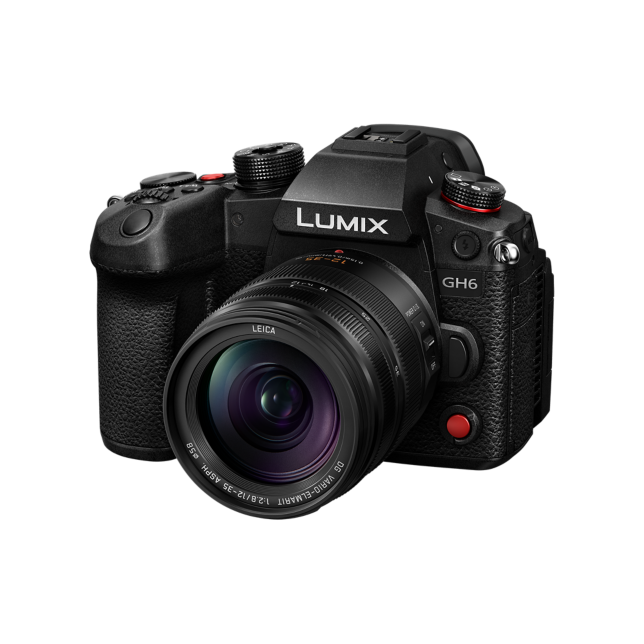

Foto LUMIX GH6 kaamera DC-GH6A

Suurus ja kaal

Kõrgus
100.3mm
Laius
138.4mm
Sügavus
99.6mm
Kaal
823g

Kõik väärtused on ligikaudsed. Kaal koos SD-kaardi ja akuga. Ei sisalda objektiivi. Ainult korpus 739g. Mõõtmed ei sisalda eenduvaid osi.

  • Micro Four Thirds süsteem standardinaMicro Four Thirds süsteem standardina
  • 25,2 megapikslit25,2 megapikslit
  • C4K/4K 4:2:2 10-bitine 60p/50p videoC4K/4K 4:2:2 10-bitine 60p/50p video
  • HFR/VFR 10-bitine VideoHFR/VFR 10-bitine Video
  • V-LogV-Log
  • 5-teljeline Dual I.S. 2 (pildistabilisaator)5-teljeline Dual I.S. 2 (pildistabilisaator)
  • 1,84 miljoni punktiga kallutatav ja vabalt pööratav ekraan1,84 miljoni punktiga kallutatav ja vabalt pööratav ekraan
  • 3,68 miljoni piksline OLED reaalajas töötav pildinäidik3,68 miljoni piksline OLED reaalajas töötav pildinäidik
  • Pritsme-, tolmu- ja külmumiskindelPritsme-, tolmu- ja külmumiskindel
  • Wi-FiWi-Fi
  • BluetoothBluetooth

Uus 25,2-megapiksline digitaalne reaalajas töötav MOS-andur

Uus pilditöötlusmootor Venus Engine

4:2:2 10-bitine C4K/4K 60p/50p video ja piiramatu jäädvustusaeg

HFR/VFR 10-bitine video ja 5.7K 10-bitine 60p/50p video

TYPE

  • Type

    • Digital Single Lens Mirrorless camera
  • Lens mount

    • Micro Four Thirds mount

IMAGE SENSOR

  • Type

    • Live MOS sensor (17.3 x 13.0 mm)
  • Camera effective pixels / Total pixels

    • 25.21 megapixels / 26.52 megapixels
  • AR (Anti Reflection) coating

    • Yes
  • Aspect ratio / Color filter

    • 4:3 / Primary color filter
  • Dust reduction system

    • Image sensor shift type

LATITUDE

  • Dynamic Range Boost ON: 13+ stops (V-Log)
    Dynamic Range Boost OFF: 12+ stops (V-Log)

STILL IMAGE

  • Recording file format

    • JPEG (DCF, Exif 2.31), RAW
  • Aspect ratio

    • 4:3 / 3:2 / 16:9 / 1:1
  • File size (Pixels)

    • 4:3
      • 5776x4336(L) / 4096x3072(M) / 2944x2208(S) / 11552x8672(XL)* / 8192x6144(LL)* *High Resolution Mode.
    • 3:2
      • 5776x3848(L) / 4096x2728(M) / 2944x1960(S) / 11552x7696(XL)* / 8192x5464(LL)* *High Resolution Mode.
    • 16:9
      • 5776x3248(L) / 4096x2304(M) / 2944x1656(S) / 11552x6496(XL)* / 8192x4608(LL)* *High Resolution Mode.
    • 1:1
      • 4336x4336(L) / 3072x3072(M) / 2208x2208(S) / 8672x8672(XL)* / 6144x6144(LL)* *High Resolution Mode.
  • Image quality

    • RAW / RAW+Fine / RAW+Standard / Fine / Standard
  • Color space

    • sRGB, AdobeRGB

MOTION PICTURE

  • Recording file format

    • MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes
      MP4: H.264/MPEG-4 AVC, H.265/HEVC
  • Audio format

    • MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
      MP4: AAC (2ch 48kHz/16-bit)
      *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).
  • System frequency

    • 59.94Hz / 50.00Hz / 24.00Hz
  • Image area of video

    • Full / Pixel by Pixel
  • MOV (*¹) (*²) *HLG is selectable.

    • 59.94Hz [5.8K] 5760x4320 (4:3)
      • 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 59.94Hz [5.7K] 5728x3024 (17:9)
      • 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 59.94Hz [4.4K] 4352x3264 (4:3)
      • 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to PIXEL/PIXEL during this recording mode.
    • 59.94Hz [C4K] 4096x2160
      • 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
    • 59.94Hz [4K] 3840x2160
      • 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
    • 59.94Hz [FHD] 1920x1080
      • 239.76p, 800Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/**
        239.76p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
        119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) / 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
        **Image Area of Video is set to FULL during this recording mode.
    • 50.00Hz [5.8K] 5760x4320 (4:3)
      • 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 50.00Hz [5.7K] 5728x3024 (17:9)
      • 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 50.00Hz [4.4K] 4352x3264 (4:3)
      • 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to PIXEL/PIXEL during this recording mode.
    • 50.00Hz [C4K] 4096x2160
      • 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
    • 50.00Hz [4K] 3840x2160
      • 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
    • 50.00Hz [FHD] 1920x1080
      • 200.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/**
        200.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
        100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) / 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
        **Image Area of Video is set to FULL during this recording mode.
    • 24.00Hz [5.8K] 5760x4320 (4:3)
      • 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 24.00Hz [5.7K] 5728x3024 (17:9)
      • 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 24.00Hz [4.4K] 4352x3264 (4:3)
      • 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to PIXEL/PIXEL during this recording mode.
    • 24.00Hz [C4K] 4096x2160
      • 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
    • 24.00Hz [4K] 3840x2160
      • 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
    • 24.00Hz [FHD] 1920x1080
      • 120.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        120.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
  • MP4 (*¹)

    • 59.94Hz [4K] 3840x2160
      • 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        *HLG is selectable.
    • 59.94Hz [FHD] 1920x1080
      • 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 50.00Hz [4K] 3840x2160
      • 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        *HLG is selectable.
    • 50.00Hz [FHD] 1920x1080
      • 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 24.00Hz -
      • -
  • Apple ProRes (*¹) (*²)

    • 59.94Hz [5.7K] 5728x3024 (17:9)
      • 29.97p, 1.9Gbps (Apple ProRes 422 HQ) / 1.3Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 1.5Gbps (Apple ProRes 422 HQ) / 1.0Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 59.94Hz [C4K] 4096x2160 (*⁵)
      • 59.94p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 59.94Hz [FHD] 1920x1080 (*⁵)
      • 59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 50.00Hz [5.7K] 5728x3024 (17:9)
      • 25.00p, 1.6Gbps (Apple ProRes 422 HQ) / 1.1Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 50.00Hz [C4K] 4096x2160 (*⁵)
      • 50.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 50.00Hz [FHD] 1920x1080 (*⁵)
      • 50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 24.00Hz [5.7K] 5728x3024 (17:9)
      • 24.00p, 1.5Gbps (Apple ProRes 422 HQ) / 1.0Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 24.00Hz [C4K] 4096x2160 (*⁵)
      • 24.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 24.00Hz [FHD] 1920x1080 (*⁵)
      • 24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

VARIABLE FRAME RATE

  • MOV (*¹) *HLG is selectable.

    • 59.94Hz [5.7K] 5728x3024 (17:9)
      • 29.97p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 59.94Hz [C4K] 4096x2160
      • 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
    • 59.94Hz [4K] 3840x2160
      • 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
    • 59.94Hz [FHD] 1920x1080
      • 59.94p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        59.94p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        29.97p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        29.97p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        23.98p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
    • 50.00Hz [5.7K] 5728x3024 (17:9)
      • 25.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 50.00Hz [C4K] 4096x2160
      • 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
    • 50.00Hz [4K] 3840x2160
      • 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61 fps or higher on a USB-SSD. (*7)
    • 50.00Hz [FHD] 1920x1080
      • 50.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        50.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        25.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        25.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
    • 24.00Hz [5.7K] 5728x3024 (17:9)
      • 24.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 24.00Hz [C4K] 4096x2160
      • 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
    • 24.00Hz [4K] 3840x2160
      • 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
    • 24.00Hz [FHD] 1920x1080
      • 24.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        24.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)

EXTERNAL USB-SSD RECORDING (*⁶)

  • Yes (ON / OFF)

HDMI RAW DATA OUTPUT (*⁵)

  • Compatible external devices

    • ATOMOS HDMI field monitor/recorder "Ninja V+" / "Ninja V"
      *Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V+ or ATOMOS Ninja V.
      *Recording of some recording qualities is not available with the "Ninja V".
      *Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS Ninja V+ or ATOMOS Ninja V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut
      https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
      *All functions may not be available depending on the situation.

      Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR (*7)
      *DaVinci Resolve or DaVinci Resolve Studio is required to play back and DaVinci Resolve Studio to edit Blackmagic RAW data.
      *Please refer to the Blackmagic Design website for the information on the corresponding firmware version of Blackmagic Video Assist 5” 12G HDR and Blackmagic Video Assist 7” 12G HDR.
      *All functions may not be available depending on the situation.
      *When recording in 4K 120p/100p or 5.7K 60p/50p, constant bitrate 5:1 or less is recommended for SSD recording and 8:1 or less for SD card recording.
  • Rec quality

    • NTSC (59.94Hz) [5.8K] 5760x4320 (4:3)
      • 29.97p, 12-bit (LPCM)
        23.98p, 12-bit (LPCM)
    • NTSC (59.94Hz) [5.7K] 5728x3024 (17:9)
      • 59.94p, 12-bit (LPCM)
        29.97p, 12-bit (LPCM)
        23.98p, 12-bit (LPCM)
    • NTSC (59.94Hz) [4.4K] 4352x3264 (4:3)
      • 59.94p, 12-bit (LPCM)
    • NTSC (59.94Hz) [C4K] 4096x2160 (17:9)
      • 119.88p, 12-bit (LPCM)
        59.94p, 12-bit (LPCM)
        29.97p, 12-bit (LPCM)
        23.98p, 12-bit (LPCM)
    • PAL (50.00Hz) [5.8K] 5760x4320 (4:3)
      • 25.00p, 12-bit (LPCM)
    • PAL (50.00Hz) [5.7K] 5728x3024 (17:9)
      • 50.00p, 12-bit (LPCM)
        25.00p, 12-bit (LPCM)
    • PAL (50.00Hz) [4.4K] 4352x3264 (4:3)
      • 50.00p, 12-bit (LPCM)
    • PAL (50.00Hz) [C4K] 4096x2160 (17:9)
      • 100.00p, 12-bit (LPCM)
        50.00p, 12-bit (LPCM)
        25.00p, 12-bit (LPCM)
  • Audio format

    • LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
      *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).

VIEWFINDER

  • Type

    • OLED Live View Finder
  • Pixels

    • Approx. 3.68 million dots
  • Field of view / Magnification

    • Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3
  • Eye point / Diopter adjustment

    • Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +3.0 (dpt)
  • Eye sensor

    • Yes

REAR MONITOR

  • Type

    • TFT LCD monitor with static touch control
  • Monitor size

    • Tilt free-angle, 3.0-inch (7.6cm), 3:2 aspect
  • Pixels

    • Approx. 1.84 million dots
  • Field of view

    • Approx. 100%

FOCUS (*³)

  • Type

    • Contrast AF system
  • DFD technology

    • Yes
  • Focus mode

    • AFS (Single) / AFC (Continuous) / MF
  • AF mode

    • Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
      *Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set.
  • AF detective range

    • EV -4 - 18 (F2.0, ISO100 equivalent, AFS)
  • AF custom setting

    • AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
  • AF assist light

    • Yes
  • AF lock

    • Set the Fn button in custom menu to AF lock
  • Focus ring control

    • Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) *When a compatible lens is attached.
  • Others

    • AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume

EXPOSURE CONTROL

  • Light metering system

    • 1,728-zone multi-pattern sensing system
  • Light metering mode

    • Multiple / Center Weighted / Spot / Highlight Weighted
  • Metering range

    • EV0-18 (F2.0 lens, ISO100 equivalent)
  • Mode dial

    • Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Custom 1, 2, 3, 4 / Intelligent Auto
      *The same exposure operations as P/A/S/M mode is available.
  • Exposure compensation

    • 1/3 EV step ±5EV (±3EV for motion picture)
  • Dynamic Range Boost

    • ON / OFF
  • ISO sensitivity (Standard output sensitivity)

    • Still image
      • [Normal]
        Auto / 50 (Extended ISO) / 100-25600

        [V-Log]
        Auto / 125 (Extended ISO) / 250-12800

        *Switchable between 1/3 or 1 EV step.
    • Motion picture
      • [Normal]
        Dynamic Range Boost OFF (Base ISO 100): Auto / 50 (Extended ISO) / 100-12800
        Dynamic Range Boost ON (Creative Video Mode) (Base ISO 800): Auto / 800-12800

        [V-Log]
        Dynamic Range Boost OFF (Base ISO 250): Auto / 125 (Extended ISO) / 250-12800
        Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800

        [Hybrid Log Gamma]
        Dynamic Range Boost OFF (Base ISO 250): Auto / 250-12800
        Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800

        [HDMI RAW Data Output] (*⁵)
        Dynamic Range Boost OFF (Base ISO 250): Auto / 250-12800
        Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800 (*⁶)

        *Switchable between 1/3 or 1 EV step.
  • AE lock

    • Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

  • B.I.S. (5-axis / 7.5-stop*)
    *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.

    Dual I.S. 2 (7.5-stop**)
    **Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.

WHITE BALANCE

  • White balance

    • AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
  • White balance adjustment

    • Blue/Amber bias, Magenta/Green bias
  • Color temperature setting

    • 2500-10000K in 100K

SHUTTER

  • Type

    • Focal-plane shutter
  • Shutter speed

    • Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
      Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
      Electronic shutter: Bulb (Max. 60 sec), 1/32,000 - 60
      Motion picture: 1/25,000 - 1/25
      Creative Video M mode / MF mode: 1/25,000 - 1/8
  • Self timer

    • 10sec, 3 images / 2sec / 10sec / Custom Time
  • Remote control

    • Remote control by DMW-RS2 (sold separately)
  • Silent mode / Shutter type

    • Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

  • AE bracket

    • 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
  • Aperture bracket

    • 3, 5 or all positions
  • Focus bracket

    • 1 to 999 images, focus steps can be set in 10 levels
  • White balance bracket

    • 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

  • Burst speed

    • Mechanical shutter / Electronic front curtain shutter
      • H: 14 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
        M: 6 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
        L: 2 frames/sec (AFS/MF/AFC) (with Live View)
    • Electronic shutter
      • SH75: 75 frames/sec (AFS/MF)
        SH60: 60 frames/sec (AFS/MF)
        SH20: 20 frames/sec (AFS/MF)
        H: 14 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
        M: 6 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
        L: 2 frames/sec (AFS/MF/AFC) (with Live View)
  • Number of recordable images

    • H/M/L*
      RAW+JPEG: More than 40 images
      RAW: More than 65 images**, More than 50 images***
      JPEG: More than 95 images**, More than 90 images***
      *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
      **When using a card with CFexpress Type B
      ***When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".

      SH
      RAW / RAW+JPEG / JPEG: 200 images

TIME LAPSE SHOT

  • Yes

STOP MOTION ANIMATION

  • Yes

FLASH

  • Flash type

    • TTL External Flash (sold separately)
  • Flash mode

    • Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
  • Flash synchronization

    • 1st Curtain Sync, 2nd Curtain Sync.
  • Flash output adjustment

    • 1/3EV step ±3EV
  • Synchronization speed

    • Less than 1/250 second
  • Wireless control

    • Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
  • Flash sync socket

    • Yes

EXTRA TELE CONVERSION

  • 2.0x (EX S), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

  • Photo Style

    • Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Hybrid Log Gamma / My Photo Style 1-10
  • Picture adjustment

    • Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB
      *Adjustable settings vary depending on the Photo Style mode.

FILTER

  • Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass

MOTION PICTURE FUNCTION

  • Master pedestal level

    • 31 steps
  • Luminance level

    • 8-bit: 0-255 / 16-235 / 16-255
      10-bit: 0‒1023 / 64‒940 / 64‒1023
  • Wave form monitor / Vectorscope

    • Selectable
  • LUT view assist

    • Supported file types: .vlt, .cube
      Monitor / HDMI
  • HLG view assist

    • Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
  • Anamorphic desqueeze display

    • 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
  • Synchro scan

    • Yes
  • SS/Gain operation

    • Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
  • Color bars / 1kHz test tone

    • Yes (SMPTE / EBU / ARIB) / Yes
  • Knee control

    • Yes (in Like709 mode)
  • Red REC frame indicator

    • ON / OFF

VERTICAL POSITION INFORMATION

  • Still image / Motion picture (ON/OFF)

LEVEL GAUGE

  • Yes

FUNCTION BUTTON

  • REC

    • Exposure Comp. / Dynamic Range Boost / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / HDMI RAW Data Output (*⁵) / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control/ Zoom Control / Step Zoom / Zoom Speed / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
  • PLAY

    • Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default

OSD LANGUAGE

  • Please refer to "OSD" Sheet

PRINT

  • PictBridge compatible

INTERFACE

  • USB

    • USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
  • HDMI (*⁴)

    • HDMI
      • HDMI TypeA
        Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
    • Monitor-through
      • 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
        4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
        4K/120p / 4K/100p (*7)
        Down Convert: Auto / C4K/4K / 1080p / 1080i / OFF
    • Playback
      • 59.94Hz: 8K/30p* / C4K/120p / C4K/60p / C4K/30p / 4K/120p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p** / 480p**
        50.00Hz: 8K/25p* / C4K/100p / C4K/50p / C4K/25p / 4K/100p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p** / 576p**
        24.00Hz: 8K/24p* / C4K/120p / C4K/24p / 4K/120p / 4K/24p / 1080/120p / 1080p
        *Only for still image playback. **Only for playback.
  • Remote input

    • φ2.5mm
  • Audio

    • Build-in microphone
      • Stereo
        Wind Noise Canceller: OFF / Standard / High
    • External microphone / External audio device input
      • φ3.5mm for external microphone / external audio device
        MIC (Plug-in Power) / MIC / LINE
        Wind Cut: OFF / Low / Standard / High *When attaching DMW-MS2 (sold separately).
        Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
    • XLR microphone
      • Yes with DMW-XLR1 (sold separately)
    • 4ch mic input
      • Yes with DMW-XLR1 (sold separately)
    • Speaker
      • Monaural
    • Headphone output
      • φ3.5mm
  • Card slot

    • Slot 1: CFexpress Card (CFexpress Type B)
      Slot 2: SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
      *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

TC IN/OUT

  • TC IN/OUT

    • Yes with BNC Converter Cable (bundled)
  • Count up

    • Rec Run / Free Run
  • Time code mode

    • Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
  • HDMI time code output

    • ON / OFF
  • External TC setting

    • TC Synchronization / TC Output Reference

FAN

  • Auto1 / Auto2 / Fast / Normal / Slow / OFF* *OFF can be set when in iA/P/A/S/M mode.

LAMP

  • Tally Lamp (front/rear) / Card Access Light / Power Indicator / Charging Light/Network Connection Light

WIRELESS

  • Wi-Fi

    • 2.4GHz (STA/AP) (IEEE802.11b/g/n)
      5GHz (STA) (IEEE 802.11a/n/ac)
      Security: WPA/WPA2/WPA3
      Please refer to "Wi-Fi" sheet
  • Bluetooth

    • Bluetooth® v5.0 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

  • Yes.
    *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

  • Battery

    • Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
      USB power supply, USB power charging, USB power delivery
  • Battery life (CIPA standard)

    • When using CFexpress Card
      • Approx. 330 images, 750 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
        Approx. 350 images, 800 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
        *Using a Lexar CFexpress Type B card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
    • When using SD memory card
      • Approx. 360 images, 850 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
        Approx. 380 images, 900 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
        *Using a Panasonic SDXC memory card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
    • When using external USB-SSD (*⁶)
      • Approx. 320 images with H-ES12060 / DMW-BLK22
        Approx. 330 images with H-FS12060 / DMW-BLK22
        *Using a Samsung external SSD (T5_1TB). Under the test conditions specified by Panasonic based on CIPA standard.
  • Continuous recordable time (Motion picture) (*¹)

    • When using CFexpress Card
      • MP4 [4K/60p]: Approx. 80 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 90 min with H-ES12060 / H-FS12060
    • When using SD memory card
      • MP4 [4K/60p]: Approx. 90 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 100 min with H-ES12060 / H-FS12060
    • When using external USB-SSD (*⁶)
      • MP4 [4K/60p]: Approx. 70 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 80 min with H-ES12060 / H-FS12060
  • Actual recordable time (Motion picture) (*¹)

    • When using CFexpress Card
      • MP4 [4K/60p]: Approx. 40 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 45 min with H-ES12060 / H-FS12060
    • When using SD memory card
      • MP4 [4K/60p]: Approx. 45 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 50 min with H-ES12060 / H-FS12060
    • When using external USB-SSD (*⁶)
      • MP4 [4K/60p]: Approx. 35 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 40 min with H-ES12060 / H-FS12060

DIMENSIONS / WEIGHT

  • Dimensions (W x H x D)

    • Approx. 138.4 x 100.3 x 99.6 mm / 5.45 x 3.95 x 3.92 inch (excluding protrusions)
  • Weight

    • Approx. 823g / 1.81 lb (SD Memory Card x 1, Battery, Body)
      Approx. 739g / 1.63 lb (Body only)

OPERATING ENVIRONMENT

  • Operating temperature (*⁵)

    • -10°C to 40°C (14°F to 104°F)
  • Operating humidity

    • 10%RH to 80%RH

STANDARD ACCESSORIES

  • Software

    • Recording
      • LUMIX Tether
        ・This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
        http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)

        LUMIX Sync
        ・This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
        https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)
    • Playback / Editing
      • ・The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
        http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
  • Standard accessories

    • DC-GH6 Kit
      Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder, BNC Converter Cable

      DC-GH6L Kit / DC-GH6M Kit
      Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder, , BNC Converter Cable, Lens Cap, Lens Hood, Lens Rear Cap

      ・The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

Note

  • (*1) About motion picture recording

    - The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
    Motion pictures with 72Mbp or less: CFexpress card, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
    Motion pictures with 200Mbp or less: CFexpress card, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
    Motion pictures with 400Mbp or less: CFexpress card, SD memory card with Video Speed Class 60 or higher
    Motion pictures with 600Mbp or less: CFexpress card, SD memory card with Video Speed Class 90
    Motion pictures with 800Mbp or more, variable frame rate with ALL-Intra, or Apple ProRes: CFexpress card

    - A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
    Motion pictures with less than 72Mbps: 30 minutes
    Motion pictures with 72Mbp or more: the maximum file size is 4 GB

    - A new file will be created to continue recording if the file size exceeds the following conditions.
    [MP4] in [FHD]: 4GB
    [MP4] in [4K]: 96GB
    [MOV] in 600Mbps or less: 192GB
    [MOV] in 800Mbps: 640GB
    [ProRes] in [5.7K]: 640GB

    - 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC. The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player. It may cause problems such as freezing when played on these devices.

    - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

    (*2) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR1 (sold separately).
    (*3) About AF
    - Continuous AF is not available for High Frame Rate video shooting above 120p (200p or 240p). It will be the AFS operation for 1-Area AF. 200p High Frame Rate video shooting requires a firmware update for the compatible lens.
    - Automatic Detection is not available for High Frame Rate video shooting above 60p (100p or 120p).
    - Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting (100p or 120p) above 60p.

    (*4) To output motion pictures with 4K or higher,use an Ultra High Speed HDMI cable (Type A–Type A plug, up to 1.5 m (4.9 feet) long).

    (*5) Firmware must be updated to version 2.0.

    (*6) Firmware must be updated to version 2.2.

    (*7) Firmware must be updated to version 2.3.

Tarvikud

Objektiivid

H-HS030

LUMIX G MACRO 30 mm / F2,8 ASPH. / MEGA O.I.S.

Foto H-HS030

XLR mikrofoniadapter / mikrofonid

Välklambid / videovalgusti

DMW-FL360L

Väline välklamp

Foto DMW-FL360L

DMW-FL200L

Väline välklamp

Foto DMW-FL200L

VW-LED1

LED-videolamp

Foto VW-LED1

Katiku kaugjuhtimine / statiiv-käepide

Muud

DMW-BDC1

Korpuse kate

Foto DMW-BDC1

DMW-TA1

Statiivi adapter

Foto DMW-TA1

DMW-MA2M

Kinnitusadapter

Foto DMW-MA2M

Kasutajatugi

LUMIX GH6 kaamera DC-GH6A
