F-JPU70M, Ziaino™ Air Treatment Unit

Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

F-JPU70M

Cleansing the air by HOCI water

• Air Treatment
• Effective Sterilization and Deodorization
• Inhibits bacteria & viruses
Zoom In
Zoom Out
Close

Features

Healthy sterilization

Our advanced  technology electrolyzes tap water with salt to generate hypochlorous acid, which is an effective air sanitizer.
Vaporized hypochlorous acid released sanitizes living environments (up to 1,000 square feet) from adhered bacteria and viruses.
Healthy sterilization

How does ziaino™ work

ziaino™ air treatment unit generates hypochlorous acid from salt water by the electrode unit, and the rotary sterilization filter dips with the solvent. As the polluted air passes through the filter; bacteria, viruses  and odor in the air are removed *¹ *² *³.
Hypochlorous acid is also vaporized and blown out with the airflow to inhibit the adhered bacteria and viruses synchronously.​
How does ziaino™ work

Anti – Virus and bacteria

ziaino™ is an air treatment unit especially designed for eliminating 99.99% of virus*¹ (H1N1, EV71) and 99.97% bacteria*² ( E.Coli, Aspergillus niger) from living spaces.

In addition to cleansing the indoor air, ziaino™ is also effective in reducing bacteria and viruses from frequently touched objects such as door handles, remotes, switches, furniture etc.
Anti – Virus and bacteria

Deodorization

ziaino™ air treatment unit not only cleans the air by the rotary sterilization filter dipped with hypochlorous acid, but it also vaporizes the solvent in the air. The vaporized hypochlorous acid decomposes the odor components of the smell in the air achieving 92% deodorization effect  after 1 hour of use*³.
Deodorization

Non-mist Operation

Instead of  releasing hypochlorous acid as particulates by means of mist or spray, Panasonic ziaino™ air treatment unit vaporizes HOCl acid through the rotary sterilization filter and blow out by airflow after electrolysis of salt water.​

The concentration of hypochlorous acid is less than 0.1 ppm that is much lower than the high limit of safety level*⁴ (EU standard -long term exposure 0.5 ppm*⁵).
Non-mist Operation

Continuous Disinfection

ziaino™ comes with a water supply tank of 7-liter capacity; it allows the product to operate continuously for about 14 hours in medium speed after replenishment of water and salt tablet. It can minimize the resources for manual periodical disinfection.​
Under condition of room Temperature 20°C, R.H. 30%.​
Time for water replenishment may differ subject to room condition, water consumption would be comparatively slow in humid or cold environment.​
Continuous Disinfection

Adjustable Electrolysis Intensity

ziaino™ features 3-level selection for the electrolysis intensity. The output amount of hypochlorous acid can be adjusted to improve the sterilization and deodorization effect in the room. Coupling with the 3-speed selection, the unit can clean the air efficiently in different environment
Adjustable Electrolysis Intensity
Disclaimer
(*1) Testing Institution : Guangzhou Institute of Microbiology Co. Ltd │ Method & Result: In operation condition of F-JPU70M at strong electrolysis and highest wind speed, the killing rate of Influenza A virus (H1N1) and Enterovirus (EV71) is >99.99% after 2 hours │ [KY20210193]
(*2) Testing Institution : Guangzhou Institute of Microbiology Co., Ltd │ Method & Result: In operation condition of F-JPU70M at strong electrolysis and highest wind speed, the killing rate of Escherichia coli is 99.99% and Aspergillus niger is >99.97% averagely after 2 hours│ [KJ20211478]
(*3) Testing Institution : Panasonic Ecology System Co Ltd. │ Method & Result: Filled with certain concentration of odor component in the 9.7 m² test room and verified by gas detection tube method; the concentration after 60 minutes About 92% decrease (Vs initial) - About 77% decrease (Vs natural decay)
(*4) Testing Institution: CHEARI (Beijing) Certification & Testing Co., Ltd | Method & Result: Upon exposing to F-JPU70M 5cm away for 15 mins under strong electrolysis strength and strong air flow condition, it is measured that <0.2mg/m³ of chlorine gas concentration was detected(Note: <0.2mg/m³ is equivalent to <0.1 ppm after conversion) | [WCk-21-50488]
(*5) The European Chemicals Agency EC number: 231-959-5 | CAS number: 7782-50-5

Get Inspired

Specs

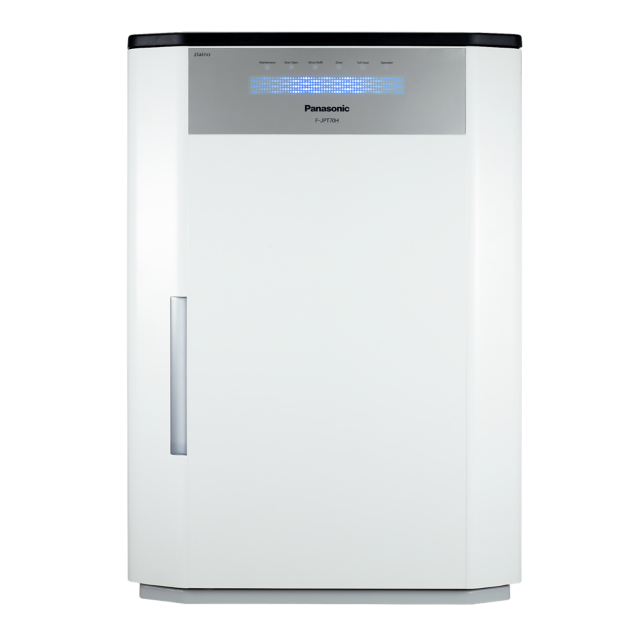

Photo of F-JPU70M, Ziaino™ Air Treatment Unit

Size and Weight

Height
730mm
Width
510mm
Depth
307mm
Weight
17kg

Clear status indicator at front display​

Salt input confirm button to avoid negligence

3-speed selection​

3 level of electrolysis intensity​

Safety lock / indicator​

Air Volume [m/min.]

  • High

    • 7
  • Medium

    • 4
  • Low

    • 2

Power Consumption [W]

  • High

    • 72
  • Medium

    • 31
  • Low

    • 20

Noise [db(A)]

  • High

    • 49
  • Medium

    • 37
  • Low

    • 20

Continous operation time with full water [Hour]

  • High

    • 9.6
  • Medium

    • 14
  • Low

    • 22.6

Dimensions (H X W X L) [mm]

  • 730 X 510 X 307

Weight [Kg]

  • 17

Applicable area [Sq ft]

  • 1000

Safety lock / Indicator

Brightness On/Off

Salt input on button

Door Alert

Water Refill Alert

Drain Alert

Salt Input alert
